PP Non-woven Geotextile Filter Fabric for Permafrost

PP Non-woven Geotextile Filter Fabric for Permafrost

Permafrost can only be constructed using cold-resistant modified PP non-woven geotextiles, high-weight PP non-woven geotextiles, polyester filament PET non-woven geotextiles, and ordinary short-fiber geotextiles. Ordinary short-fiber geotextiles are not resistant to freeze-thaw cycles and are prohibited in permafrost projects. Non-woven PP (polypropylene) geotextiles are made from high-quality polypropylene fibers and are formed through needle-punched non-woven technology. They are hydrophobic and cold-resistant materials. The products have high toughness, do not crack at low temperatures, are resistant to acids, alkalis, and salt alkali corrosion, and possess stable permeability, filtration, isolation, reinforcement, and erosion resistance properties. They are widely used in permafrost roadbed isolation, underground drainage, repeated freeze-thaw areas, etc.

Geotextile for permafrost feature:

◆Excellent low-temperature toughness. At -40℃, the low-temperature flexibility does not become rigid or crack.

◆Repeated freezing and thawing will not cause wire breakage or layering.

◆Resistant to acid and alkali, freeze soil salt and alkali, and snow-melting agent corrosion. Long-term immersion  is not prone to aging or damage.

◆The fibers are hydrophobic, and the pores are not prone to freezing and blocking. Even at low temperatures, water can still pass through normally.

◆Light in weight, good flexibility, high adhesion to uneven frozen soil surfaces, and convenient for construction.

Geotextile specification:

Name:non-woven Geotextile Filter Fabric

Width:1~6mm

Thickness:0.9mm-5mm

Weight:100g~800g/m²

Material:PP(polypropylene) or PET(Polyester)

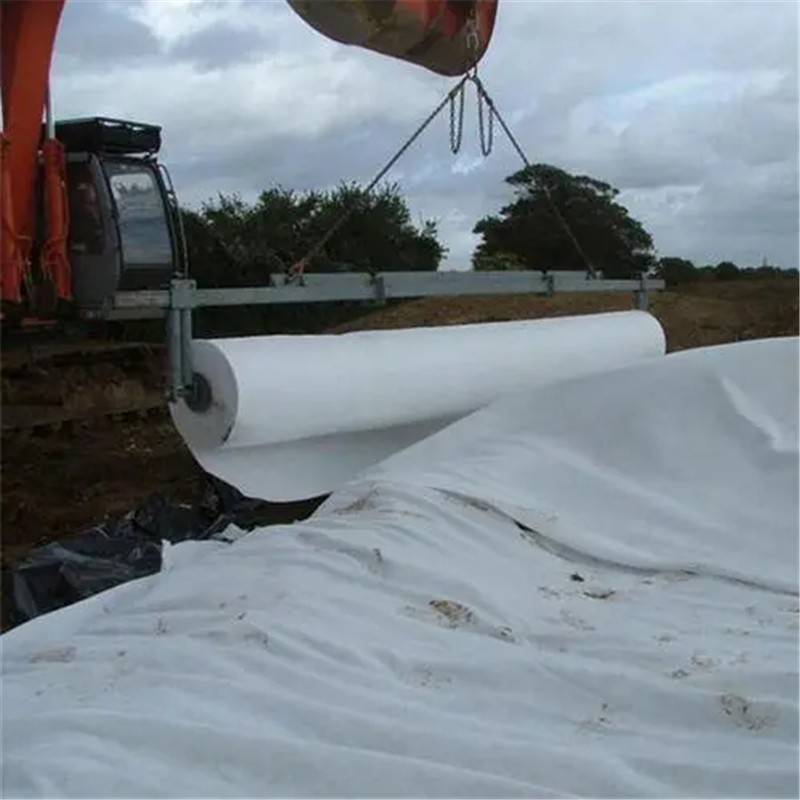

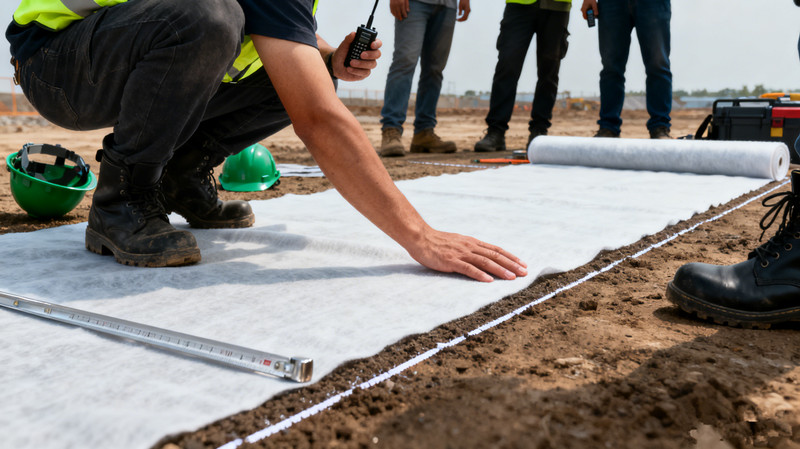

Installation Considerations:

◆Overlap Seams:Minimum 12-18 inch overlap to ensure continuity.

◆Securing: Use stakes or pins to prevent displacement.

◆Orientation:Place the permeable side toward the drainage source.

About our products and our after-sales service:

Shandong Luke Composite Co., Ltd. is a professional company specializing in the production and sales of geomaterials. The company mainly produces geotextile, geomembrane, drain board,geogrid,geocell,3D geomat, drain mat drainage net, grass paver ect.Our company provides a one-stop service, and our staff provides 24/7 online support to solve any technical problems related to fiber in a timely manner. Thank you for your love of our products.

our aim is quality first, credit first!

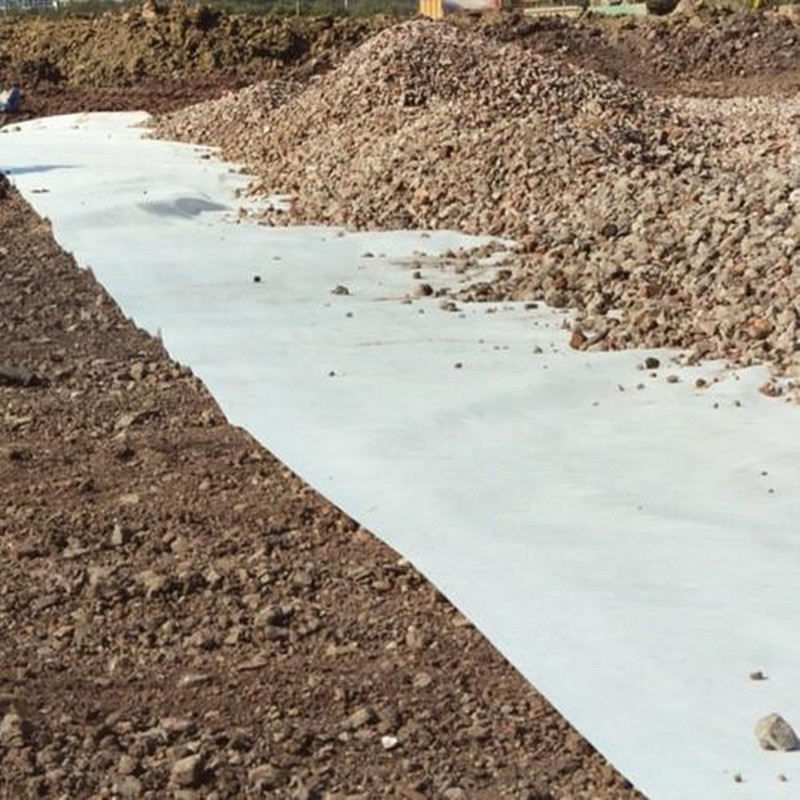

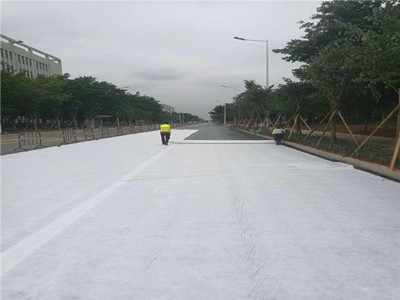

Application of geotextile for permafrost:

◆Rural frozen soil paths, shallow isolation layer

◆National road and expressway frozen soil roadbeds, river embankment slope protection

◆Open-cut slopes, plateau permanent frozen soil, perennial open-air projects without any cover

◆High-weight PP non-woven geotextiles can used permafrost-heavy-duty highways, frozen soil in mines
