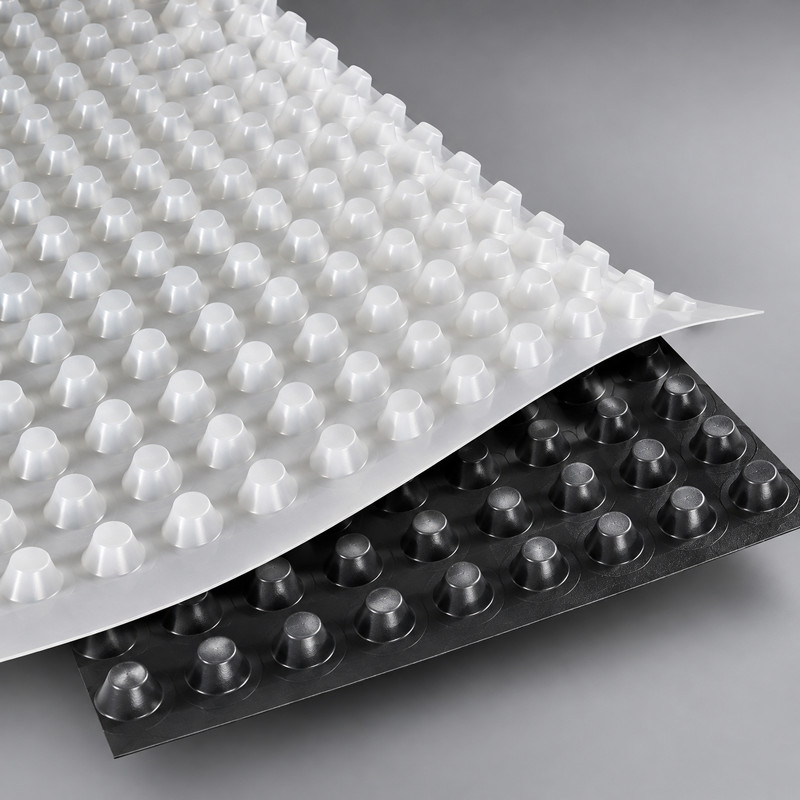

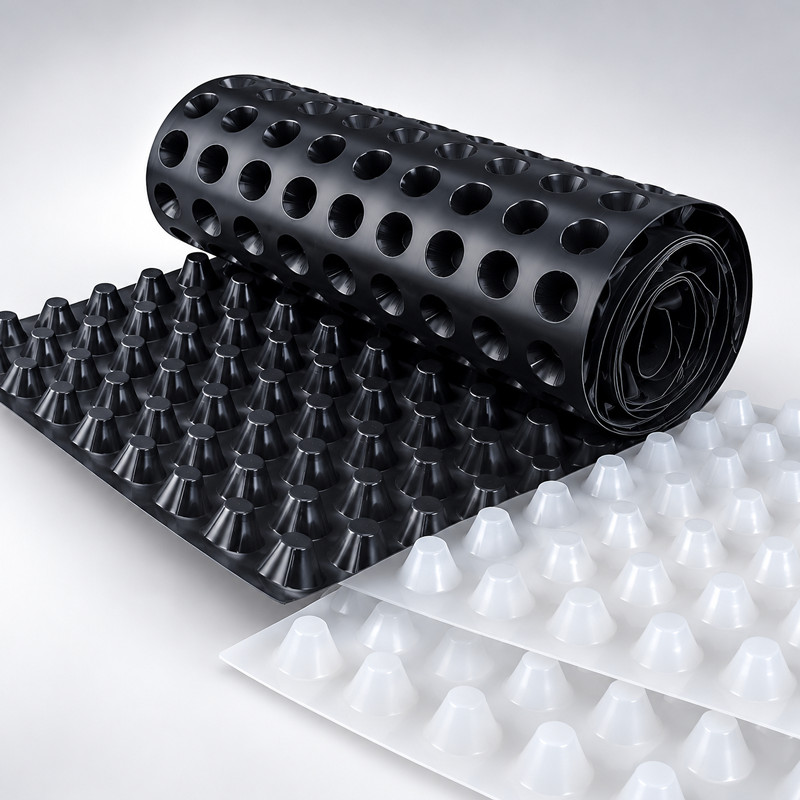

High compressive strength dimple drain sheet for green roof & underground drainage Manufactured from 100% virgin high-density polyethylene (HDPE), our High Compressive Strength Dimple Drain Sheet delivers an advanced, lightweight solution for comprehensive water management. Designed with rigid, truncated-cone dimples (8mm–20mm height), this dimpled drainage membrane creates a continuous three-dimensional drainage void that relieves hydrostatic pressure, protects primary waterproofing, and prevents underground moisture ingress.

Dimple drainage board technical parameters:

Dimple drain board for underground garage features:

◆Corrosion-resistant, anti-aging, with a service life of up to 50 years.

◆Delivers exceptional compressive strength, resisting heavy soil backfill compaction and vehicular loads without collapsing.

◆Light in weight, capable of being assembled, and easy to cut.

◆Quickly drain the rainwater to prevent water accumulation on the ground.

◆High-density polymer structure prevents aggressive plant root penetration and shields basement walls from dampness and soil chemicals.

Structural diagram of drainage board usage:

◆Waterproof Layer: Drainage board made from high-density polyethylene (HDPE) or another durable polymer, this layer prevents water infiltration into the structure.

◆Drainage board Channels: A textured surface creates voids for water to flow, directing it downward to a drainage system.

◆Geotextile Filter Fabric: Attached to the exterior, this fabric filters soil and debris, preventing clogs in the drainage channels.

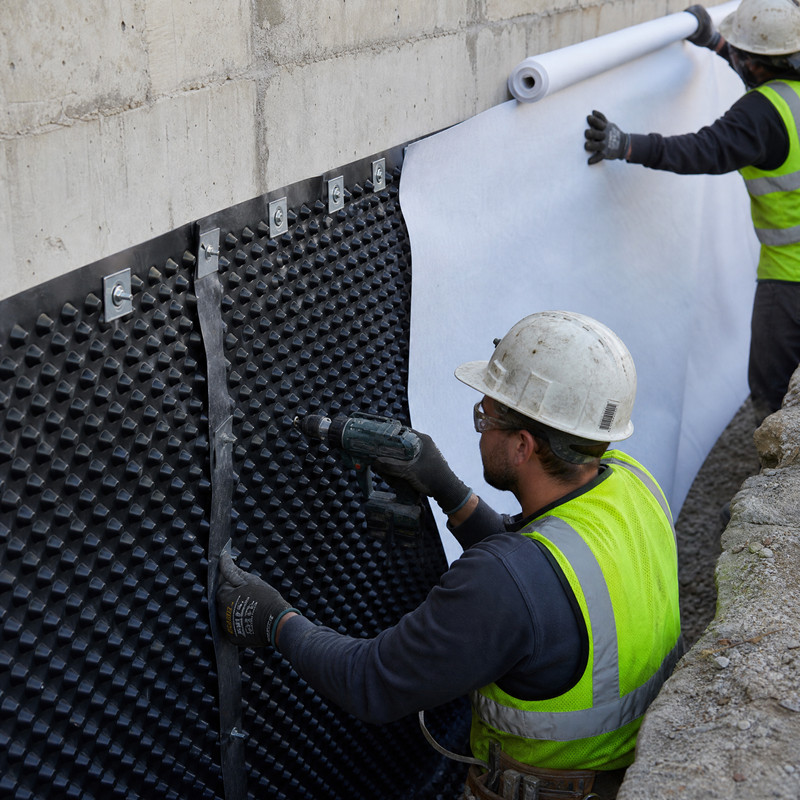

What should be noted when installing the drainage board?

◆Ensure proper slope for effective water flow.

◆Overlap seams and secure the drain board to prevent movement during backfilling.

◆Use appropriate geotextile fabric to prevent clogging.

◆Integrate with a waterproofing membrane if needed for added protection.

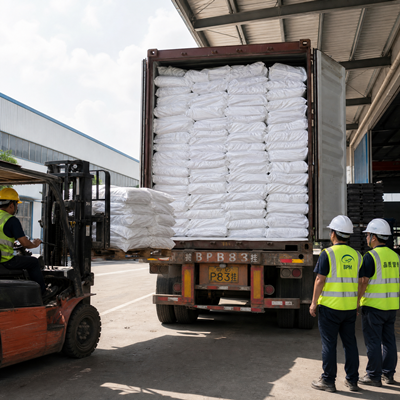

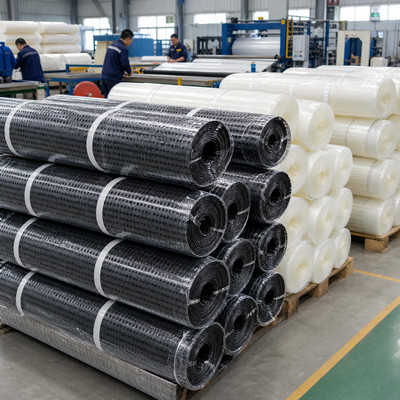

High compressive strength dimple drain sheet packaging and divery:

◆Tight Roll Packaging

◆Plastic Strapping Bands

◆White Woven Geotextile Bags

HDPE drainage board factory manufacturing workshop:

Advanced dimple drain board production line for high-quality HDPE drainage panels. Automated manufacturing, strict quality control, and bulk production capacity for global construction projects.

Dimple drainage board application:

Construction Engineering

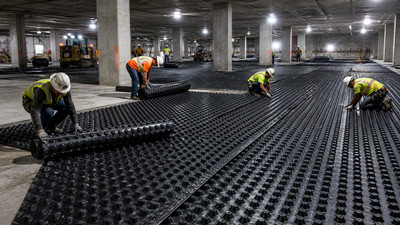

Basement floor / exterior wall: Prevent groundwater infiltration, protect structural safety

Garage roof: Support green planting, protect waterproof layer, alleviate static water pressure

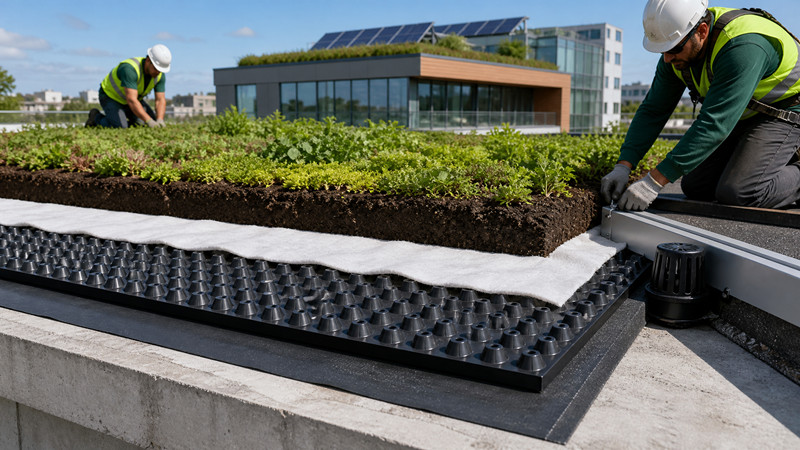

Roof garden: Combine water storage and drainage, create a favorable environment for plant growth

Municipal Engineering

Road subgrade: Drain subgrade water accumulation, prevent pavement cracking and deformation

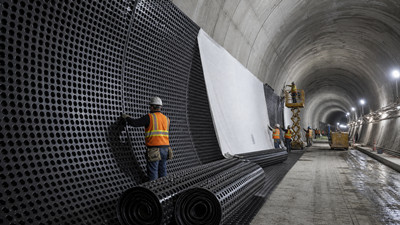

Tunnel project: Radial drainage, prevent lining water seepage, protect tunnel structure

Landfill: Dual functions of anti-seepage and drainage, prevent leachate from polluting groundwater
