Smooth & Textured HDPE Geomembrane for Landfill Pond Dam

HDPE geomembrane (High -density polyethylene material) has excellent impermeability.

Resistant to acid, alkali, salt, oil and industrial wastewater corrosion, suitable for harsh environments.

Good flexibility and mechanical property, anti-puncture, adapt to foundation deformation.

According to your need custmize the  HDPE pond liner.

HDPE geomembrane standard:

GRI GM-13 standard,GB standard or customized according to requirement


  Contact Now
Product Details

Smooth and Textured HDPE Geomembrane for Landfill Pond Dam

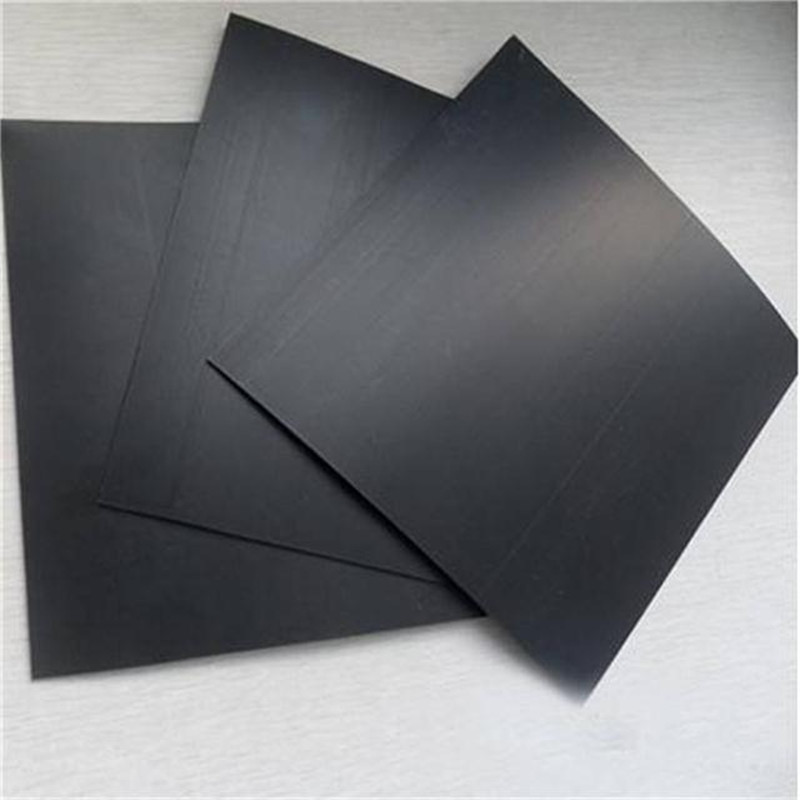

Smooth HDPE geomembrane has a flat, smooth surface with uniform thickness. It features excellent impermeability, low friction and easy welding. It is cost-effective and widely used for regular anti-seepage projects.Applicable to: fish ponds, reservoirs, bottom of garbage dumps, sewage ponds, artificial lakes, and chemical seepage prevention.

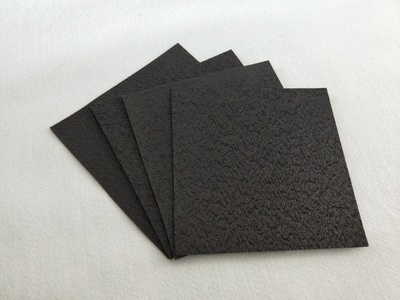

Textured HDPE geomembrane has a rough, embossed surface on one or both sides. It provides high friction coefficient, anti-slip performance and better stability on steep slopes.Applicable to: steep slopes, tailings ponds, landfill site slopes, mining projects, and high-drop anti-seepage projects.


Smooth HDPE Geomembrane.jpg Textured HDPE Geomembrane.jpg


Smooth and textured HDPE geomembrne for landfill pond dam features:

◆Extremely strong anti-seepage performance

◆Chemical resistance and strong environmental adaptability

High-quality HDPE geomembranes and LLDPE geomembranes can withstand long-term erosion by corrosive media such as acids, alkalis, salts, and organic solvents, without experiencing swelling, cracking or degradation.

◆Excellent weather resistance

Performance:Can maintain stable performance in a wide temperature range of -40℃ to 60℃.

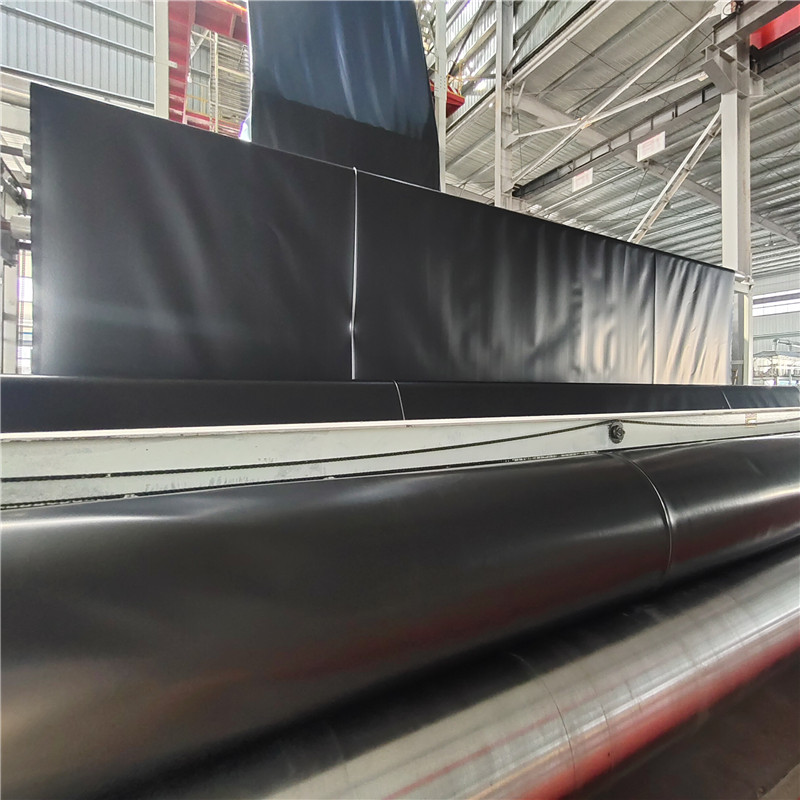

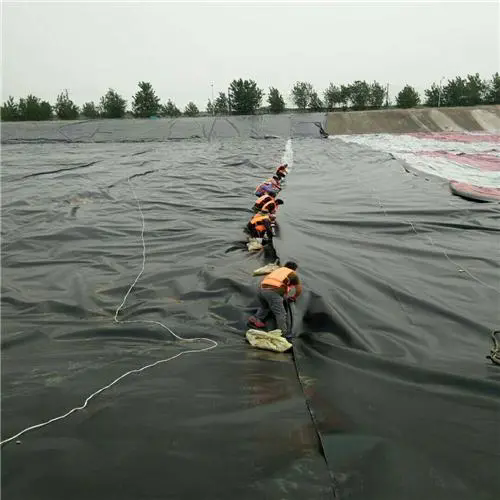

 HDPE Geomembrane Wholesale.jpg HDPE Geomembrane for Pond Liner.png


HDPE geomembrane thickness and technical parameters:


Test   Properties

unit

Test Method

Test Frequency

LK

MS75

LK

MS10

LK

MS15

LK

MS20

LK

MS30



Mechanical Properties

Thickness

mm

D5199

Per roll

0.75

1.00

1.50

2.00

3.00

Density

g/cc

D1505/D792

90,000kg

0.94

Tensile properties




D6693

Type IV



9,000kg


Yield strength

KN/m

11

15

22

29

44

Break strength

KN/m

20

27

40

53

80

Yield elongation

%

12

12

12

12

12

Break elongation

%

700

700

700

700

700

Tear Resistance

N

D1004

20,000kg

93

125

187

249

374

Puncture resistance

N

D4883

20,000kg

240

320

480

640

960

Stress crack Resistance

Hr.

D5397

Per GRI GM-10

300hr

Carbon Black Content

%

D4218

9,000kg

2.0-3.0%

Reference Properties

Oxidative Induction Time

Min








Standard OIT


D3895

90,000kg

100min

High Pressure OIT


D5885

400min

Oven Aging at 85℃(retained after 90 days)

%

D5712

Per

each formulation

55%

(a)standard OIT


D3895

(b)High Pressure OIT


D5885

UV Resistance High Pressure OIT Rerained   after1600h

%

D5885

Per

each formulation

50%

Roll Size

Roll width

m



7

7

7

7

7

Roll Length

m



280

210

140

105

70

Size Stability

%

2%


Impermeable HDPE Liner.jpg


Customer feedback about HDPE geomembrane:

Our geomembrane has been exported for many orders and has received unanimous praise from customers.

HDPE Geomembrane Customer Feedback.jpg


About our company:

Shandong Luke Composite Co.,Ltd is professional company on production and sales geosynthetics for years.We mainly produce turf reinforcement mat,geo membranegeotextile, dimple drain boardgeogrid,geo cell,3D geomat, drain mat, drainage net, grass paver etc.Our geosynthetic materials have been exported to more than 30 nations and regions, such as Southeast Asia, Australia, North America, Europe, Middle East and Africa. As HDPE geomembrane manufacturer our commitment:Professional equipment, high quality geomembrane liner series products, first-class service is your best choice,welcome to our company!

If you want to know more about the HDPE geomembranes  ,you can continue to ask me questions.


Hdpe Geomembrane Suppliers In China.jpg


HDPE geomembrane application fields:

◆Environmental protection projects: Geomembranes are used in anti-seepage layers of landfill sites, linings of sewage treatment ponds, and storage of hazardous waste.

◆Water conservancy projects: Waterproof geomembranes are used for anti-seepage of reservoirs/ponds, river lining, and waterproofing of artificial lakes,Geomembrane For Aquaculture Pond

HDPE geomembranes for mining and energy: Geomembranes are used for anti-seepage of tailings ponds, padding of heap leaching ponds, and vibration isolation of oil storage tank foundations.

◆Agriculture and aquaculture: Anti-seepage of aquaculture ponds, sealing of biogas digesters, waterproofing of irrigation water tanks.

◆Geomembrane For Aquaculture Pond is used widely.


Geomembrane Liner For Tailings Ponds.jpgHDPE Geomembrane Installation Pond Liner.jpg

     Geomembrane used for Mine Tailing Liner                              Reservoir geomembrane

HDPE Geomembrane for Landfill Liner.jpgGeo membrane Liner For Aquaculture.jpg

       HDPE geomembrane used for landfill  liner                                         Fish farm liner


After-sales service:

Our company provides a one-stop service, and our staff provides 24/7 online support to solve any technical problems related to HDPE geomembrane liner in a timely manner. Thank you for your love of our products.


High Tensile HDPE Geomembrane.jpg




Send your message to us
