How to Choose HDPE Geomembrane

HDPE sheet is safe and environmentally friendly.

Geomembranes have good physical and mechanic performance.

Geomembrane has high tearing resistance, strong deformation adaptability

Puncture-resisting and have aging resisting, ultra-violet radiation.

Geomembrane impermeable liner can resistant acid and alkali and corrosion resistance.

Has a long life and is easy to install

HDPE geomembrane standard:

GRI GM-13 standard,GB standard or customized according to requirement


  Contact Now
Product Details

How to Choose HDPE Geomembrane

HDPE geomembrane properties

◆Extremely strong anti-seepage performance

◆Chemical resistance and strong environmental adaptability

High-quality HDPE geomembranes and LLDPE geomembranes can withstand long-term erosion by corrosive media such as acids, alkalis, salts, and organic solvents, without experiencing swelling, cracking or degradation.

◆Excellent weather resistance

Performance:Can maintain stable performance in a wide temperature range of -40℃ to 60℃.

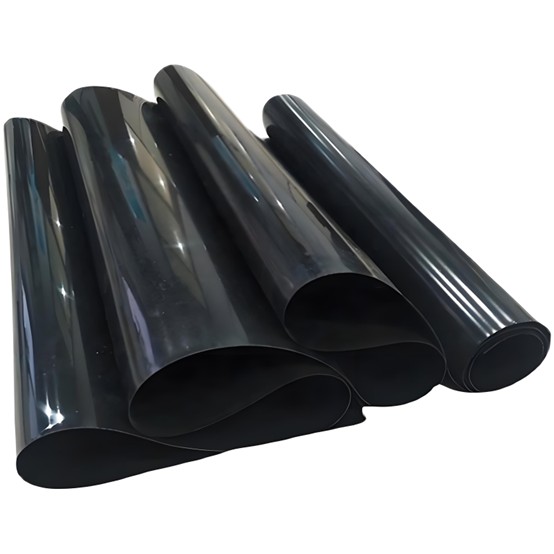

How to Choose HDPE Geomembrane.jpg

HDPE geomembrane thickness and technical parameters:


Test   Properties

unit

Test Method

Test Frequency

LK

MS75

LK

MS10

LK

MS15

LK

MS20

LK

MS30



Mechanical Properties

Thickness

mm

D5199

Per roll

0.75

1.00

1.50

2.00

3.00

Density

g/cc

D1505/D792

90,000kg

0.94

Tensile properties




D6693

Type IV



9,000kg


Yield strength

KN/m

11

15

22

29

44

Break strength

KN/m

20

27

40

53

80

Yield elongation

%

12

12

12

12

12

Break elongation

%

700

700

700

700

700

Tear Resistance

N

D1004

20,000kg

93

125

187

249

374

Puncture resistance

N

D4883

20,000kg

240

320

480

640

960

Stress crack Resistance

Hr.

D5397

Per GRI GM-10

300hr

Carbon Black Content

%

D4218

9,000kg

2.0-3.0%

Reference Properties

Oxidative Induction Time

Min








Standard OIT


D3895

90,000kg

100min

High Pressure OIT


D5885

400min

Oven Aging at 85℃(retained after 90 days)

%

D5712

Per

each formulation

55%

(a)standard OIT


D3895

(b)High Pressure OIT


D5885

UV Resistance High Pressure OIT Rerained   after1600h

%

D5885

Per

each formulation

50%

Roll Size

Roll width

m



7

7

7

7

7

Roll Length

m



280

210

140

105

70

Size Stability

%

2%


HDPE Geomembrane Thickness.jpg


Customer feedback about HDPE geomembrane:

Our geomembrane has been exported for many orders and has received unanimous praise from customers.

HDPE Geomembrane Customer Feedback.jpg


About our company:

Shandong Luke Composite Co.,Ltd is professional company on production and sales geosynthetics for years.We mainly produce turf reinforcement mat,geo membranegeotextile, dimple drain boardgeogrid,geo cell,3D geomat, drain mat, drainage net, grass paver etc.Our geosynthetic materials have been exported to more than 30 nations and regions, such as Southeast Asia, Australia, North America, Europe, Middle East and Africa. As HDPE geomembrane manufacturer our commitment:Professional equipment, high quality geomembrane liner series products, first-class service is your best choice,welcome to our company!

If you want to know more about the HDPE geomembranes  ,you can continue to ask me questions.


Hdpe Geomembrane Suppliers In China.jpg


HDPE geomembrane application fields:

◆Environmental protection projects: Geomembranes are used in anti-seepage layers of landfill sites, linings of sewage treatment ponds, and storage of hazardous waste.

◆Water conservancy projects: Waterproof geomembranes are used for anti-seepage of reservoirs/ponds, river lining, and waterproofing of artificial lakes,Geomembrane For Aquaculture Pond

HDPE geomembranes for mining and energy: Geomembranes are used for anti-seepage of tailings ponds, padding of heap leaching ponds, and vibration isolation of oil storage tank foundations.

◆Agriculture and aquaculture: Anti-seepage of aquaculture ponds, sealing of biogas digesters, waterproofing of irrigation water tanks.

◆Geomembrane For Aquaculture Pond is used widely.


Geomembrane Liner For Tailings Ponds.jpgHDPE Geomembrane Installation Pond Liner.jpg

     Geomembrane used for Mine Tailing Liner                              Reservoir geomembrane

HDPE Geomembrane for Landfill Liner.jpgGeo membrane Liner For Aquaculture.jpg

       HDPE geomembrane used for landfill  liner                                         Fish farm liner


After-sales service:

Our company provides a one-stop service, and our staff provides 24/7 online support to solve any technical problems related to HDPE geomembrane liner in a timely manner. Thank you for your love of our products.


China HDPE Geomembrane Suppliers.jpg


How to choose hdpe geomembrane:

The selection of geomembrane primarily depends on the engineering scenario. First, the seepage prevention grade, environmental medium, and loading conditions need to be clarified, and then the material of the geotextile can be selected accordingly.

Common scenarios:

For situations such as fish ponds, water storage tanks, and roof waterproofing, LLDP geomembranes are the preferred choice. They have good flexibility, are resistant to low temperatures, and have moderate costs. A thickness of 0.5 to 1.0mm is sufficient to meet the requirements for preventing seepage.

For high-risk scenarios:

Such as landfill sites, chemical wastewater ponds, and tailings reservoirs, HDPE geomembranes must be selected. They are resistant to strong acids and alkalis, and can withstand punctures. The thickness must be ≥1.5mm. For landfill sites, a thickness of 2.0mm or more is recommended, and it should comply with industry-specific standards.

For special scenarios:

Geomembranes with good elasticity and strong weather resistance can be chosen. They can adapt to long-term deformation and avoid cracking and leakage.

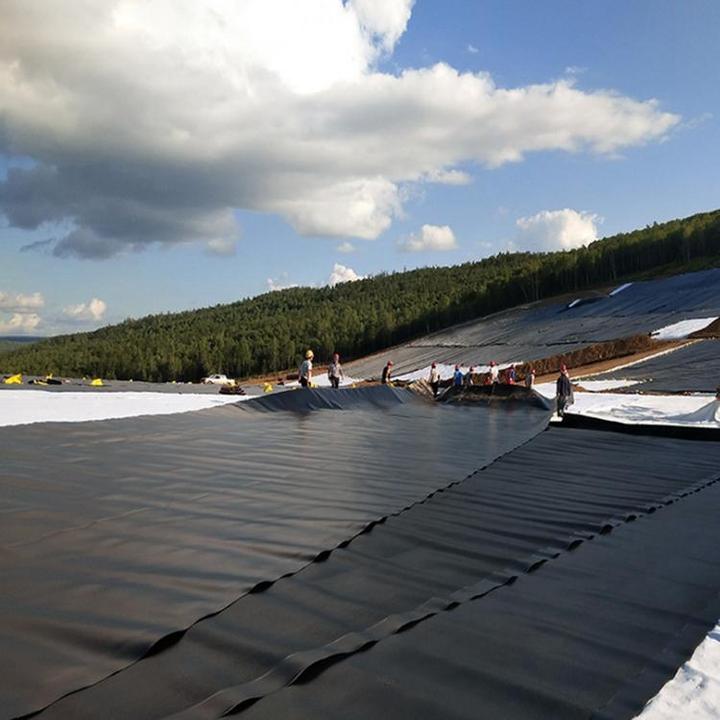

HDPE Geomembrane Installation.jpg
