HDPE geo membranes have good ductility and good flexibility.
Antioxidant,Anti-aging and UV Resistance.
Excellent Environmental Stress Cracking Resistance Property.
High Tensile Strength and Elongation
Have long service life.

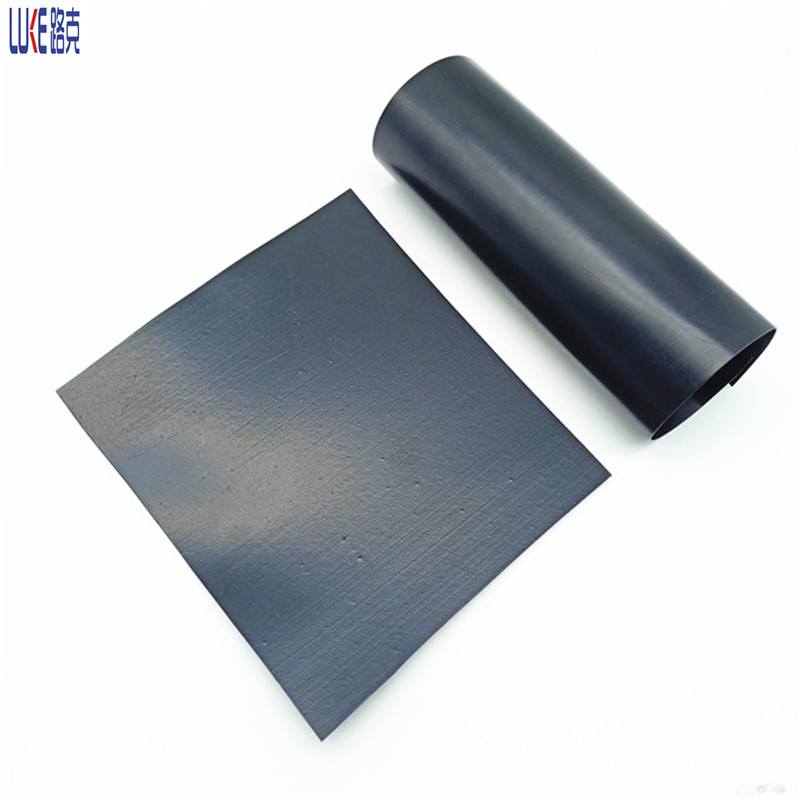

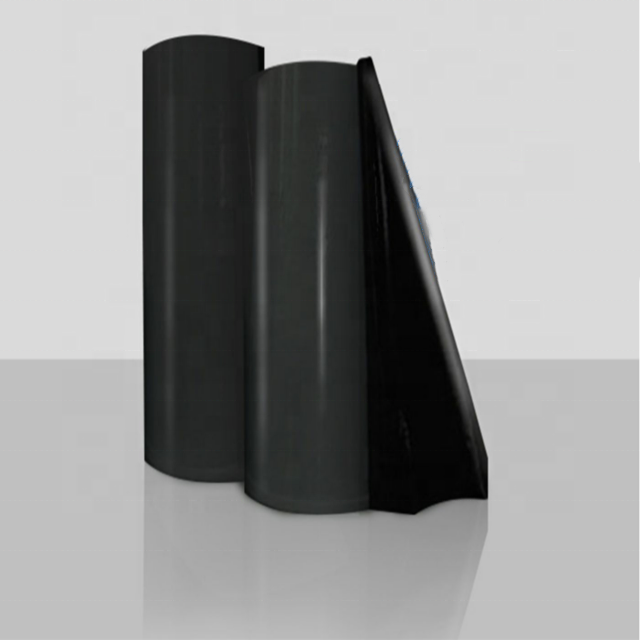

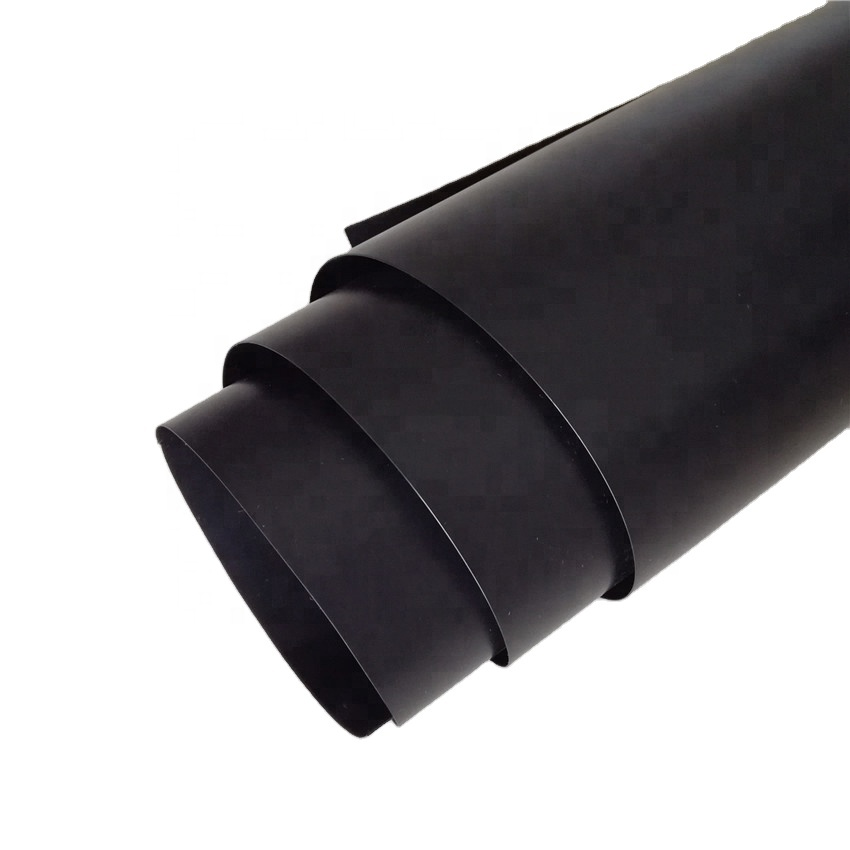

Black HDPE Geomembrane
The characteristics of 2mm HDPE geomembrane include impermeability, isolation, puncture resistance, moisture resistance, etc. High density polyethylene particles are used as raw materials to produce by blow molding process or calendering process. It has good anti-seepage effect and can prevent polluted water from penetrating into the ground. At the same time, the material is laid under the concrete of the workshop floor, which can protect the stored items to keep dry, and has a good puncture resistance effect, which can prevent the root object from penetrating the geomembrane. Support on-demand cutting customization, multiple production and processing lines, can provide construction guidance.

Hdpe geo membrane Parameter:
Test Properties | unit | Test Method | Test Frequency | LKMS75 | LKMS10 | LKMS15 | LKMS20 | LKMS30 | |
Mechanical Properties | Thickness | mm | D5199 | Per roll | 0.75 | 1.00 | 1.50 | 2.00 | 3.00 |
Density | g/cc | D1505/D792 | 90,000kg | 0.94 | |||||
Tensile properties Yield strength break strength yield elongation break elongation |
KN/m KN/m % % |
D6693 Type IV |
9,000kg |
11 8 12 100 |
15 10 12 100 |
22 16 12 100 |
29 21 12 100 |
44 32 12 100 | |
Tear Resistance | N | D1004 | 20,000kg | 93 | 125 | 190 | 250 | 375 | |
Puncture Resistance | N | D4833 | 20,000kg | 200 | 270 | 400 | 535 | 800 | |
Stress Crack Resistance | hr. | D5397 | Per GRI GM-10 | 300hr | |||||
Carbon Black Content | % | D4218 | 9,000kg | 2.0-3.0% | |||||
Reference Properties | Oxidative Induction Time (a) standard OIT (b) High Pressure OIT |
min |
D3895 D5885 |
90,000kg |
100min 400min | ||||
oven Aging at 85℃ Retained after 90 days (a) standard OIT (b) High Pressure OIT |
% |
D5712 D3895 D5885 | Per each formulation |
55%
| |||||
UV Resistance High Pressure OIT Retrained after 1600h |
% |
D5885 | Per each formulation |
50%
| |||||
Roll Size | Roll width | m | 7 | 7 | 7 | 7 | 7 | ||
Roll Length | m | 280 | 210 | 140 | 105 | 70 | |||
Size Stability | % | 2% | |||||||
Feature
1) Good physical and mechanic performance
2) High tearing resistance, strong deformation adaptability
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4) Good adaptability to high and low temperature, non-toxicity, long service life
5) Good waterproof, drainage, anti-seepage and damp proof effects
6) Complete width and thickness specifications, low cost and easy installation.

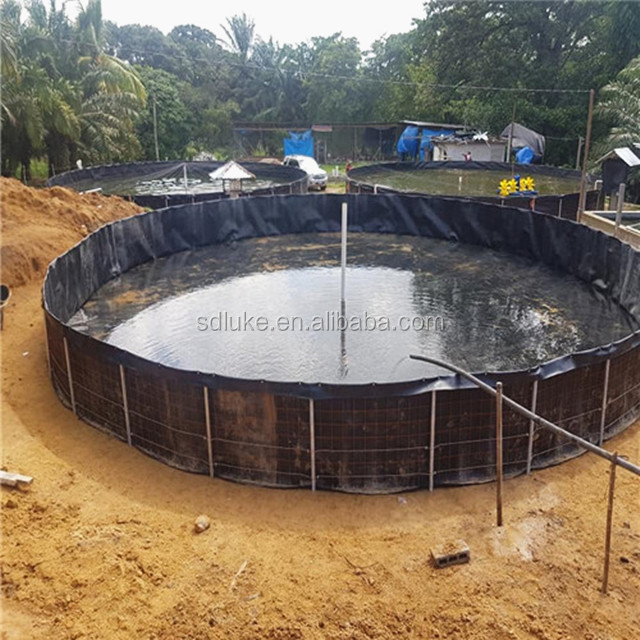

Application
1) Environmental protection, sanitation
(such as solid waste landfills, sewage treatment plants, power plants Chi-conditioning,industrial, hospital solid waste, etc)
2) Water Conservancy
(such as rivers, lakes and reservoirs of the anti-dam, plugging, reinforcement of the canal seepage, the vertical wall of the heart, slope protection, etc.)
3) Municipal Engineering
(subway, on the ground floor of the building, planted roof, the roof garden of anti-seepage, sewage pipes lining, etc.)
4) Landscape
(man-made lake, river, reservoir, golf courses reservoirs of the substrate, slope protection, green lawn of the waterproof moisture, etc.)
5) Petrochemical
(chemical plants, oil refineries, gas storage tanks of the anti-chemical reaction tanks, sedimentation tanks of the lining, etc.)

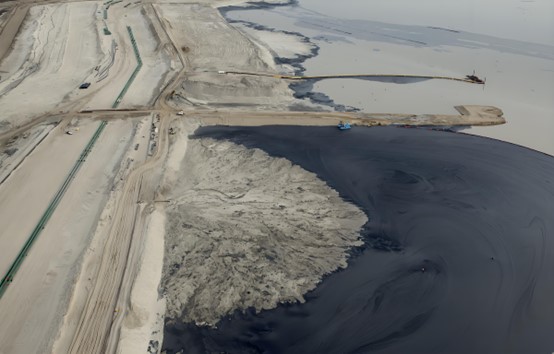

6) Mining
(washing and pool heap leaching, the ash-field, dissolved, precipitation, the yard, the tailings seepage substrates etc.)

About us:

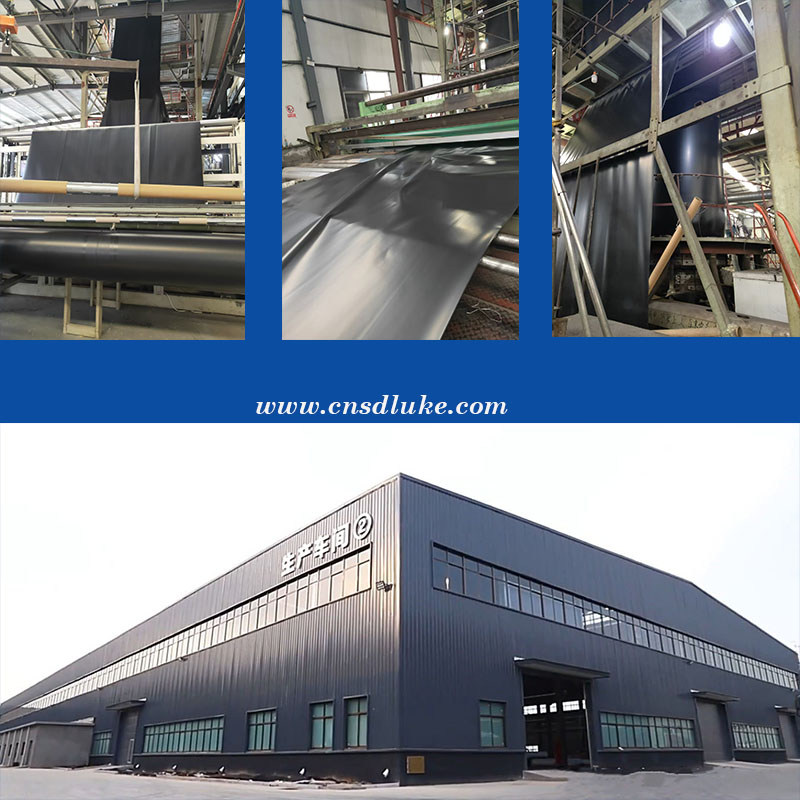

Shandong Luke Composite Co.,Ltd. is professional company on production and sales geosynthetics for years. We mainly produce geo membrane, geo textile, drain board, geogrid,geo cell,3D geomat, drain mat, drainage net, grass paver etc.
Our geosynthetic materials have been exported to more than 30 nations and regions, such as Southeast Asia, Australia, North America, Europe, Middle East and Africa. Professional equipment, high quality geomembrane series products, first-class service is your best choice, Welcome to request product prices!
