Black HDPE Geo membrane Pond Liner

Hdpe geo membrane chemical properties are stable.

Geomembrane liner has good impermeability.

Good anti-aging and anti-UV,Geomembrane/Geosynthetic Clay can still maintain the original performance when exposed for a long time.

Geomembrane construction is simple and convenient, and does not require complex processes and equipment.

After testing, the quality meets the ASTM standard GM GRI 13 completely.

Contact Now

Product Details

Black HDPE Geo membrane Pond Liner

The molecular structure of high-density polyethylene (HDPE) is highly compact, with a porosity of less than 0.01%, resulting in an even lower permeability coefficient. Therefore, with extremely high capabilities, it can prevent the leakage of filtrate. Customers can customize large-width geotextiles to reduce seams and save welding time.

Black HDPE Geo membrane Pond Liner.jpg

Parameter

	Test Properties	unit	Test Method	Test Frequency	LKMS75	LKMS10	LKMS15	LKMS20	LKMS30
Mechanical Properties	Thickness	mm	D5199	Per roll	0.75	1.00	1.50	2.00	3.00
	Density	g/cc	D1505/D792	90,000kg	0.94
	Tensile properties Yield strength break strength yield elongation break elongation	KN/m KN/m % %	D6693 Type IV	9,000kg	11 20 12 700	15 27 12 700	22 40 12 700	29 53 12 700	44 80 12 700
	Tear Resistance	N	D1004	20,000kg	93	125	187	249	374
	Puncture Resistance	N	D4833	20,000kg	240	320	480	640	960
	Stress Crack Resistance	hr.	D5397	Per GRI GM-10	300hr
	Carbon Black Content	%	D4218	9,000kg	2.0-3.0%
Reference Properties	Oxidative Induction Time (a) standard OIT (b) High Pressure OIT	min	D3895 D5885	90,000kg	100min 400min
	oven Aging at 85℃ Retained after 90 days (a) standard OIT (b) High Pressure OIT	%	D5712 D3895 D5885	Per each formulation	50% 80%
	UV Resistance High Pressure OIT Retrained after 1600h	%	D5885	Per each formulation	50%
Roll Size	Roll width	m			7	7	7	7	7
	Roll Length	m			280	210	140	105	70
	Size Stability	%	2%

Feature

1) Good physical and mechanic performance
2) High tearing resistance, strong deformation adaptability
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance

4) Good adaptability to high and low temperature, non-toxicity, long service life

5) Good waterproof, drainage, anti-seepage and damp proof effects

6) Complete width and thickness specifications, low cost and easy installation.

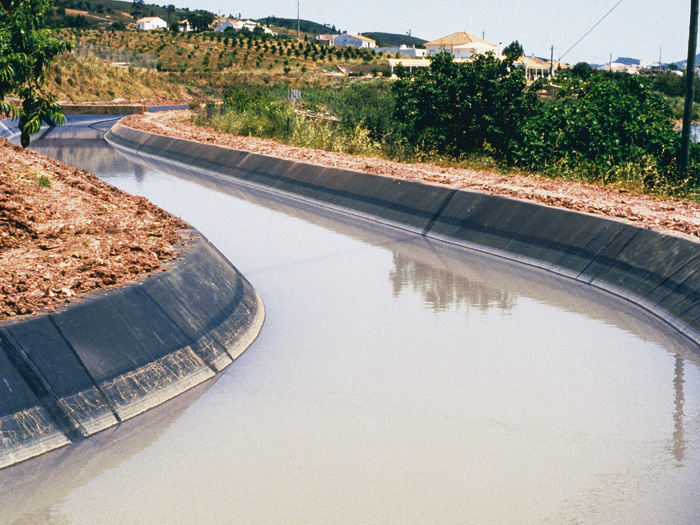

Geomembrane Sheet.jpg

Application

1) Environmental protection, sanitation

(such as solid waste landfills, sewage treatment plants, power plants Chi-conditioning,industrial, hospital solid waste, etc)
2) Water

(such as rivers, lakes and reservoirs of the anti-dam, plugging, reinforcement of the canal seepage, the vertical wall of the heart, slope protection, etc.)
3) Municipal Engineering

(subway, on the ground floor of the building, planted roof, the roof garden of anti-seepage, sewage pipes lining, etc.)

4) Landscape

(man-made lake, river, reservoir, golf courses reservoirs of the substrate, slope protection, green lawn of the waterproof moisture, etc.)
5) Petrochemical

(chemical plants, oil refineries, gas storage tanks of the anti-chemical reaction tanks, sedimentation tanks of the lining, etc.)
6) Mining

(washing and pool heap leaching, the ash-field, dissolved, precipitation, the yard, the tailings seepage substrates etc.)

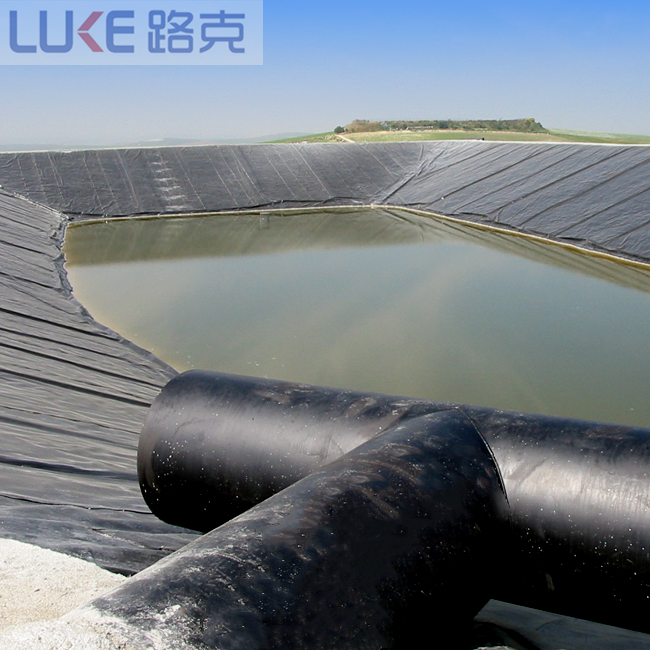

Black HDPE Geo membrane Pond Liner Application.png
