HDPE Geomembrane Liner Waterproof Impermeable Pond Dam Liner

HDPE geomembrane liner waterproof impermeable pond dam liner is made of 100% virgin HDPE resin with professional formula additives, our HDPE geomembrane liner features excellent impermeability, tensile strength, corrosion resistance and long service life, providing reliable anti-seepage isolation solutions for various complex engineering scenarios.It is mainly used as the overall anti-seepage lining for ponds, fish ponds, water storage tanks and landscape pools. Its core function is to prevent water leakage, isolate soil impurities / harmful substances, stabilize water quality and water level, and also provide slope protection and erosion prevention functions.

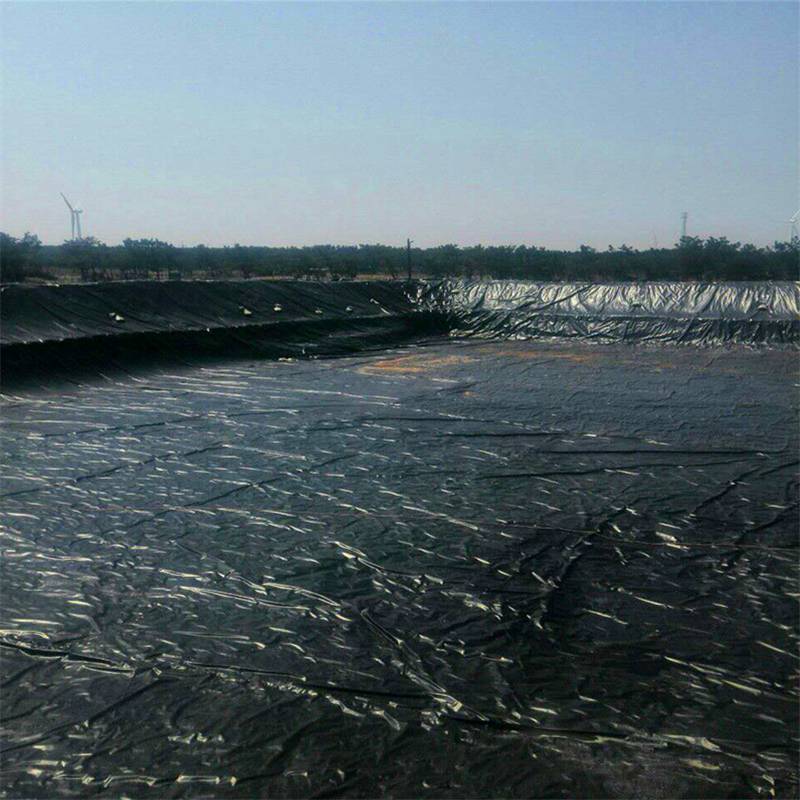

HDPE Geomembrane Liner for Shrimp Aquaculture.jpg



Test Properties

unit

Test Method

Test Frequency

LK

MS75

LK

MS10

LK

MS15

LK

MS20

LK

MS30



Mechanical Propertiers

Thickness

mm

D5199

Per roll

0.75

1.00

1.50

2.00

3.00

Density

g/cc

D1505/D792

90,000kg

0.94

Tensile properties




D6693

Type IV



9,000kg


Yield strength

KN/m

11

15

22

29

44

Break strength

KN/m

20

27

40

53

80

Yield elongation

%

12

12

12

12

12

Break elongation

%

700

700

700

700

700

Tear Resistance

N

D1004

20,000kg

93

125

187

249

374

Puncture resistance

N

D4883

20,000kg

240

320

480

640

960

Stress crack Resistance

Hr.

D5397

PerGRI GM-10

300hr

Carbon Black Content

%

D4218

9,000kg

2.0-3.0%

Reference Properties

Oxidative Induction Time

Min








Standard OIT


D3895

90,000kg

100min

High Pressure OIT


D5885

400min

Oven Aging at 85℃(retained after 90 days

%

D5712

Per

each formulation



50%

80%

(a)standard OIT


D3895

(b)High Pressure OIT


D5885

UV Resistance High Pressure OIT Rerained after1600h

%

D5885

Per

each formulation

50%

Roll Size

Roll width

m



7

7

7

7

7

Roll Length

m



280

210

140

105

70

Size Stability

%

2%

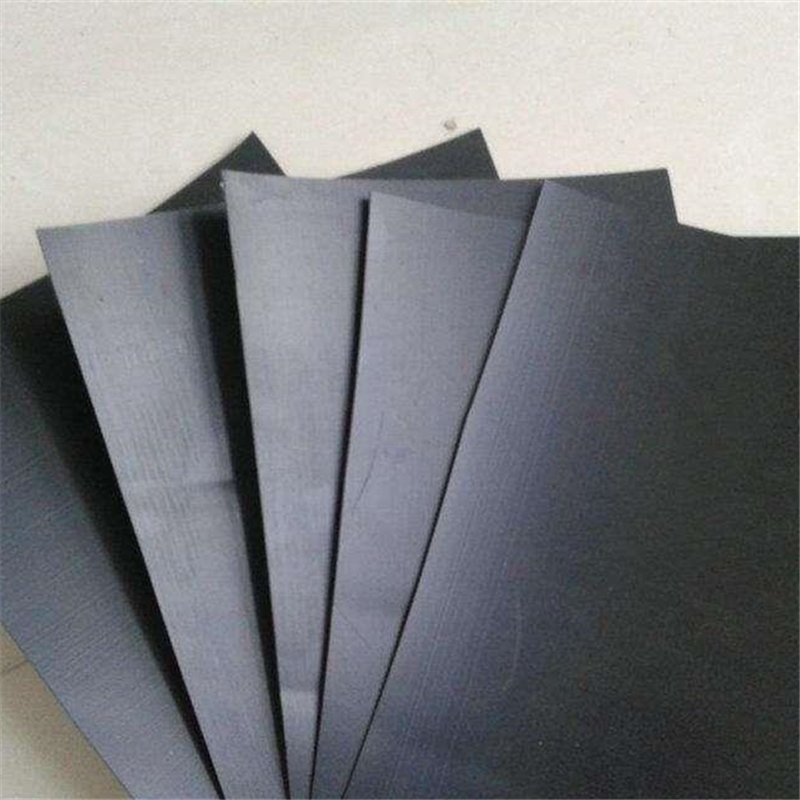

HDPE Geomembrane 1.0mm 1.5mm 2.0mm.jpg


HDPE geomembrane pond liner function:

◆Barrier and anti-seepage measures to prevent the contamination of groundwater by leachate.

◆HDPE geomembrane integrates anti-seepage and drainage,and has the functions of isolation and reinforcement.

◆It has high composite strength,high peel strength,high puncture resistance.

Landfill anti-seepage liner auxiliary leachate storage pond / regulating pond anti-seepage


100% Virgin UV Resistant HDPE Geomembrane.jpg


Lead time of geomembrane pond liner:

Quantity(square meters)

1-3000

3001-20000

20000

Lead time(days)

2

5

To be negotiated

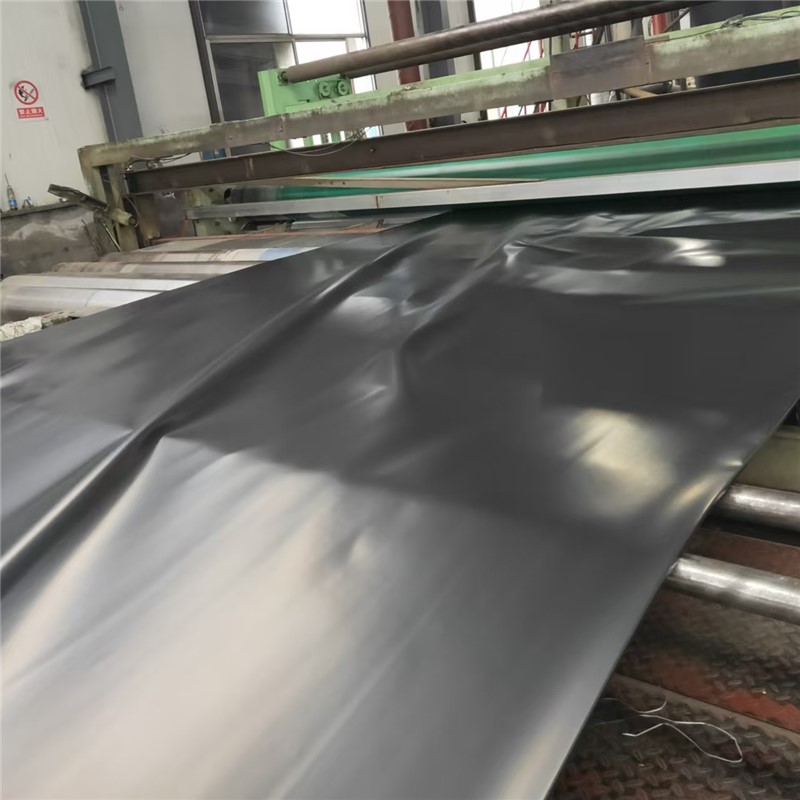

High Density Polyethylene HDPE Liner.jpg


HDPE geomembrane waterproof membrane pond liner:

◆Aquaculture: Waterproofing for fish ponds, shrimp ponds, lotus ponds, and high-level aquaculture tanks

Landscape Water Management: Artificial lakes, garden ponds, landscape water features, and river channel liners

Water Conservation and Storage: Agricultural reservoirs, irrigation ponds, rainwater collection tanks

Environmental Remediation: Sewage ponds, wastewater settling ponds, and impermeable isolation for saline-alkali land renovation ponds

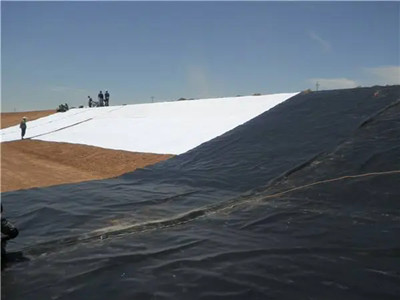

HDPE Geomembrane Impermeable Liner.jpgHDPE Geomembrane Waterproof Membrane Pond Liner.jpg

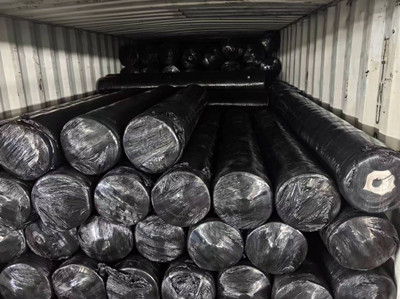

Packing and Delivery:

Tightly and neatly roll the HDPE geomembrane onto it to prevent the roll material from becoming loose, deformed, with creases or misalignment,The end faces should remain flat. It can be transported by sea or by rail.

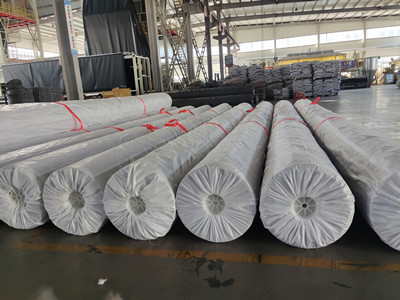

Virgin HDPE Landfill Liner.jpgVirgin HDPE Landfill Liner.jpg


HDPE geomembrane pond liner maintenance and lifespan:

Regularly inspect the slopes and weld seams for any damage or leakage, and repair them promptly; avoid having heavy equipment driving directly on it.

The new material HDPE black membrane (with UV resistance formula) can be used outdoors for more than 10 years, and its lifespan when buried is even longer;inferior recycled membrane has a very short lifespan and is prone to damage and leakage.

Choose compliant membrane specifically for aquatic products to prevent harmful substances from seeping into the water body and affecting the safety of aquaculture.

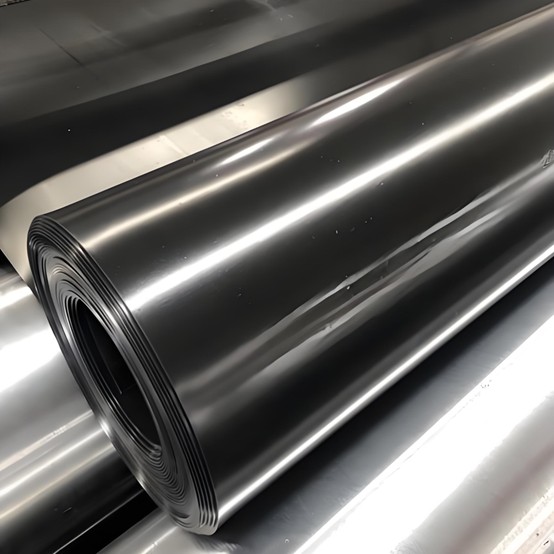

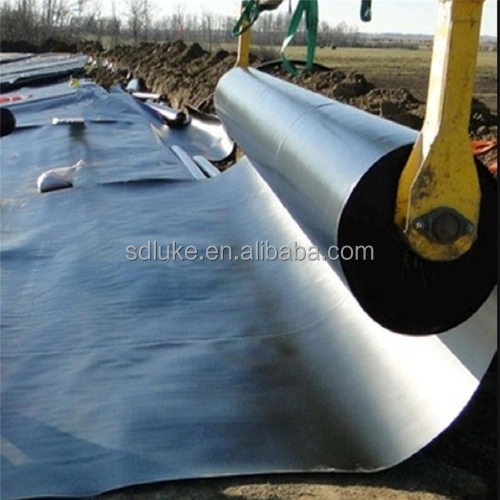

HDPE Geomembrane Anti-Seepage Membrane.jpgSmooth HDPE Geomembrane.jpg
