HDPE Geomembrane Liner for Landfill Leachate Treatment

HDPE geomembrane liner has good physical and mechanic performance.

HDPE geomembrane with geotexile as strengthenning material.

HDPE geomembrane has excellent tensile strength and UV resistance.

It has strong corrosion resistance.

It can aging resistance,cold resistance,heat resistance,moisture resistance and other properties.

Geomembrane is widely used in water conservancy projects, environmental protection projects and other projects

As fish pond geomembran has a strong ability to prevent puncture.

Contact Now

Product Details

HDPE Geomembrane Liner for Landfill Leachate Treatment

The core function of HDPE Geomembrane Anti-Seepage Membrane (High-Density Polyethylene geomembrane), used primarily as a Landfill Anti-Seepage Liner (and sharing basic design principles with Fish Pond Geomembrane), is to form a tight impermeable barrier, standardize leachate collection and drainage, prevent leachate from contaminating groundwater and soil, reduce the production of leachate at the source, and assist in the storage and treatment of leachate at the terminal stage. It does not directly degrade pollutants; instead, it achieves controlled collection and centralized disposal of leachate through the anti-seepage and drainage systems.

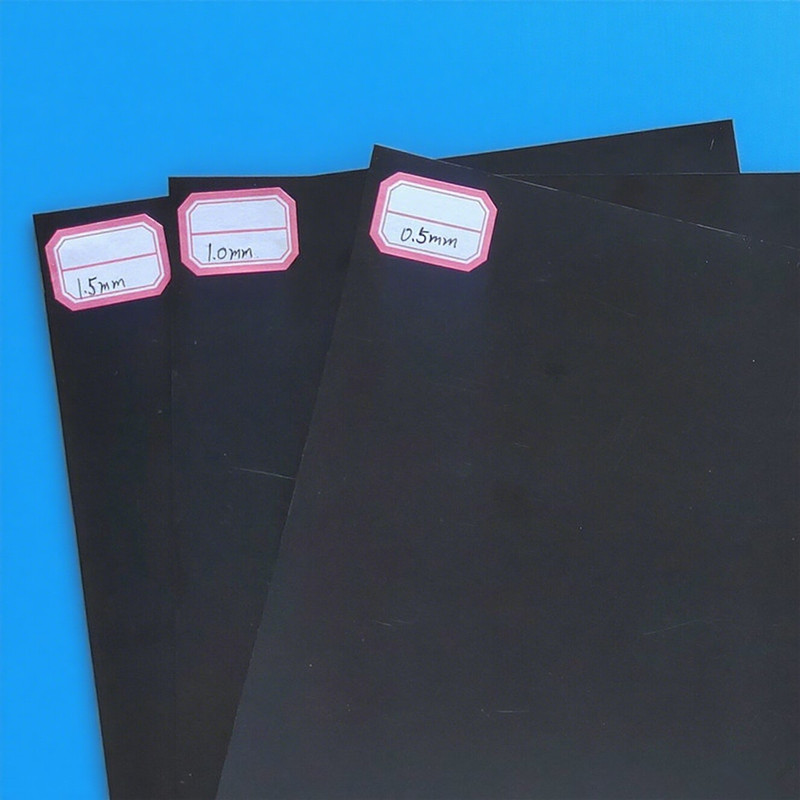

HDPE Geomembrane Liner for Landfill Leachate Treatment.jpg

HDPE geomembrane anti-seepage membrane:

	Test Properties	unit	Test Method	Test Frequency	LK MS75	LK MS10	LK MS15	LK MS20	LK MS30
Mechanical Propertiers	Thickness	mm	D5199	Per roll	0.75	1.00	1.50	2.00	3.00
	Density	g/cc	D1505/D792	90,000kg	0.94
	Tensile properties		D6693 Type IV	9,000kg
	Yield strength	KN/m			11	15	22	29	44
	Break strength	KN/m			20	27	40	53	80
	Yield elongation	%			12	12	12	12	12
	Break elongation	%			700	700	700	700	700
	Tear Resistance	N	D1004	20,000kg	93	125	187	249	374
	Puncture resistance	N	D4883	20,000kg	240	320	480	640	960
	Stress crack Resistance	Hr.	D5397	PerGRI GM-10	300hr
	Carbon Black Content	%	D4218	9,000kg	2.0-3.0%
Reference Properties	Oxidative Induction Time	Min
	Standard OIT		D3895	90,000kg	100min
	High Pressure OIT		D5885	90,000kg	400min
	Oven Aging at 85℃（retained after 90 days）	%	D5712	Per each formulation	50% 80%
	(a)standard OIT		D3895
	(b)High Pressure OIT		D5885
	UV Resistance High Pressure OIT Rerained after1600h	%	D5885	Per each formulation	50%
Roll Size	Roll width	m			7	7	7	7	7
	Roll Length	m			280	210	140	105	70
	Size Stability	%	2%

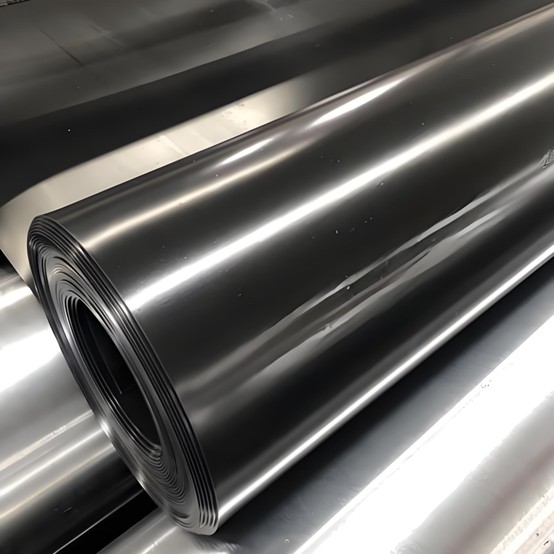

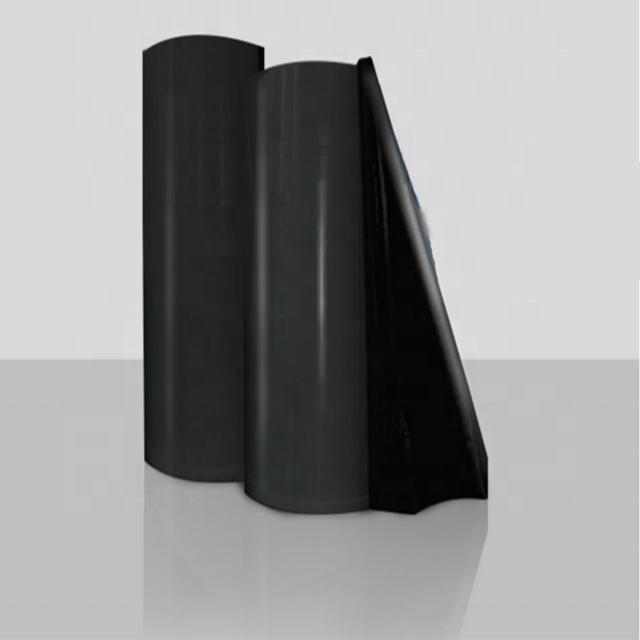

HDPE Geomembrane Waterproof Membrane.png

HDPE geomembrane pond liner function:

◆Barrier and anti-seepage measures to prevent the contamination of groundwater by leachate.

◆HDPE geomembrane integrates anti-seepage and drainage,and has the functions of isolation and reinforcement.

◆It has high composite strength,high peel strength,high puncture resistance.

◆Landfill anti-seepage liner auxiliary leachate storage pond / regulating pond anti-seepage

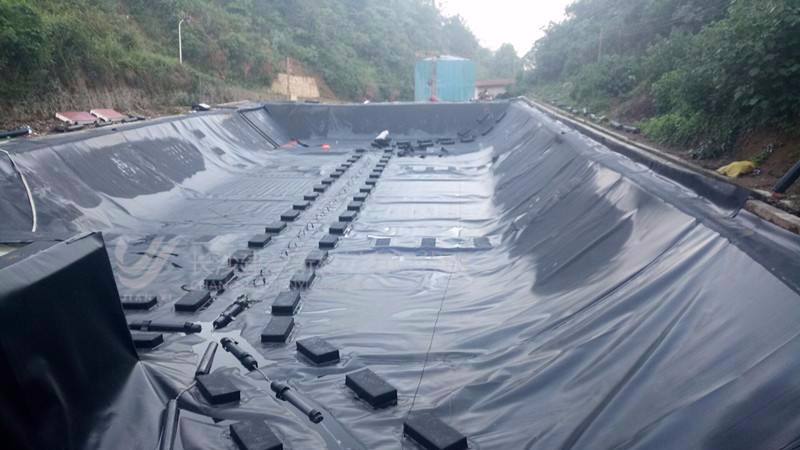

HDPE Geomembrane Liner for Landfill Leachate Treatment.jpg

Lead time of geomembrane pond liner:

Quantity(square meters)	1-3000	3001-20000	20000
Lead time(days)	2	5	To be negotiated

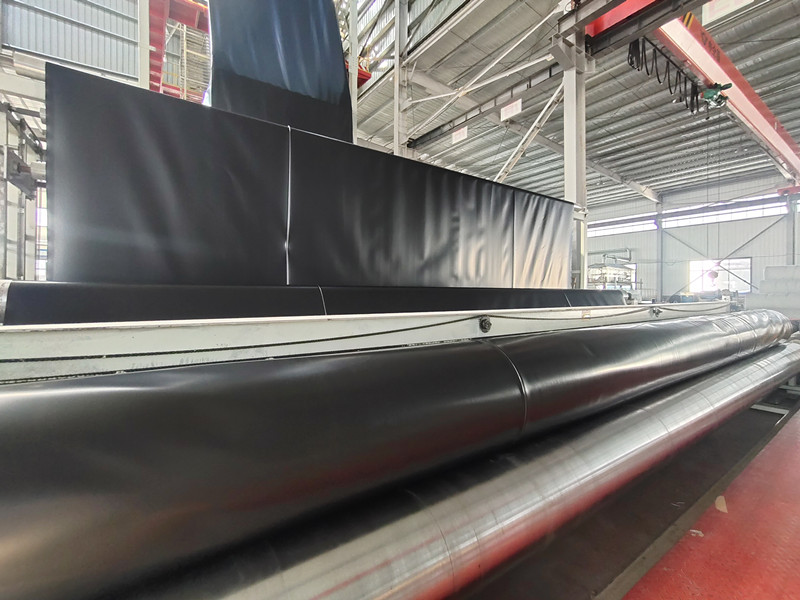

Landfill Anti-Seepage Liner.jpg

HDPE geomembrane anti-seepage membrane, including landfill anti-seepage liner and fish pond geomembrane, has the following main uses:

◆Water conservancy engineering,garden,petrochemical,mining

◆The most commonly used projects are:landfill,sewage threatment plant,artificial lake,reservoir,slope protection,greening,sedimentation tank,biogas digester,sewage tank,tunnel waterproofing and other projects

◆Environmental protection and sanitation

◆Aquaculture: Line fish and shrimp ponds to keep water, improve water quality and reduce seepage

◆Green roofs, photovoltaic projects and other special anti-seepage projects

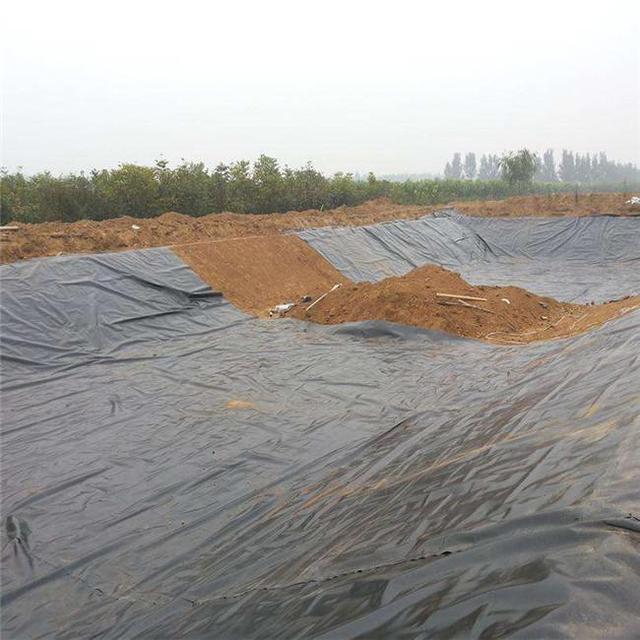

HDPE Geomembrane Impermeable Liner.jpg Landfill Anti-Seepage Liner.jpg

HDPE Geomembrane Impermeable Liner Landfill Anti-Seepage Liner

Packing and Delivery:

Tightly and neatly roll the HDPE geomembrane onto it to prevent the roll material from becoming loose, deformed, with creases or misalignment,The end faces should remain flat. It can be transported by sea or by rail.

Virgin HDPE Landfill Liner.jpg
