HDPE Smooth Geomembrane Liner Manufacturer

HDPE smooth geomembrane has excellent impermeability.

Geomembranes have good physical and mechanic performance.

Geomembrane has high tearing resistance, strong deformation adaptability

Puncture-resisting and have aging resisting, ultra-violet radiation.

Anti-seepage geomembrane can resistant acid and alkali and corrosion resistance.

It has a long life and is easy to install.


  Contact Now
Product Details

HDPE Smooth Geomembrane Liner Manufacturer

Smooth HDPE Geomembrane (Smooth High-Density Polyethylene Geomembrane) is mainly made from high-quality HDPE resin through processes such as extrusion and stretching. Its product line also includes HDPE Geomembrane Sheets (High-Density Polyethylene Geomembrane Sheets), which can be flexibly cut and laid, and HDPE Pond Liners (High-Density Polyethylene Pond Liners), specially designed for water body seepage prevention scenarios.

These HDPE geotechnical materials generally have excellent anti-seepage performance, effectively blocking the penetration of liquids and gases, and building a barrier for the safety of infrastructure projects - for example, in the construction of artificial lakes and reservoirs, HDPE Pond Liners utilize this characteristic to achieve efficient water body isolation, preventing leakage from polluting the soil or underground water sources; while HDPE Geomembrane Sheets can be cut according to the engineering size as needed, adapting to the laying requirements of different sites. Moreover, whether it is the Smooth HDPE Geomembrane itself, or HDPE Geomembrane Sheets, HDPE Pond Liners and other derivative products, all have good corrosion resistance and strong anti-aging properties. They can maintain stable performance and service life in outdoor natural environments for a long time, thus being widely used in municipal, environmental protection, and water conservancy fields, and receiving high market recognition.



HDPE Smooth Geomembrane Liner Manufacturer.jpg


The HDPE geomembrane functions:

◆Seepage prevention

◆Reinforcement of dykes

◆Isolation of soil

◆Enhancement of road surface

◆Prevention of building subsidence

These functions of geomembrane make it play an important role in civil engineering.


Technical parameters of HDPE geomembrane:


Test   Properties

unit

Test Method

Test Frequency

LK

MS75

LK

MS10

LK

MS15

LK

MS20

LK

MS30



Mechanical Properties

Thickness

mm

D5199

Per roll

0.75

1.00

1.50

2.00

3.00

Density

g/cc

D1505/D792

90,000kg

0.94

Tensile properties




D6693

Type IV



9,000kg


Yield strength

KN/m

11

15

22

29

44

Break strength

KN/m

20

27

40

53

80

Yield elongation

%

12

12

12

12

12

Break elongation

%

700

700

700

700

700

Tear Resistance

N

D1004

20,000kg

93

125

187

249

374

Puncture resistance

N

D4883

20,000kg

240

320

480

640

960

Stress crack Resistance

Hr.

D5397

Per GRI GM-10

300hr

Carbon Black Content

%

D4218

9,000kg

2.0-3.0%

Reference Properties

Oxidative Induction Time

Min








Standard OIT


D3895

90,000kg

100min

High Pressure OIT


D5885

400min

Oven Aging at 85℃(retained after 90 days)

%

D5712

Per

each formulation

55%

(a)standard OIT


D3895

(b)High Pressure OIT


D5885

UV Resistance High Pressure OIT Rerained   after1600h

%

D5885

Per

each formulation

50%

Roll Size

Roll width

m



7

7

7

7

7

Roll Length

m



280

210

140

105

70

Size Stability

%

2%


HDPE Smooth Geomembrane Liner Manufacturer.jpg

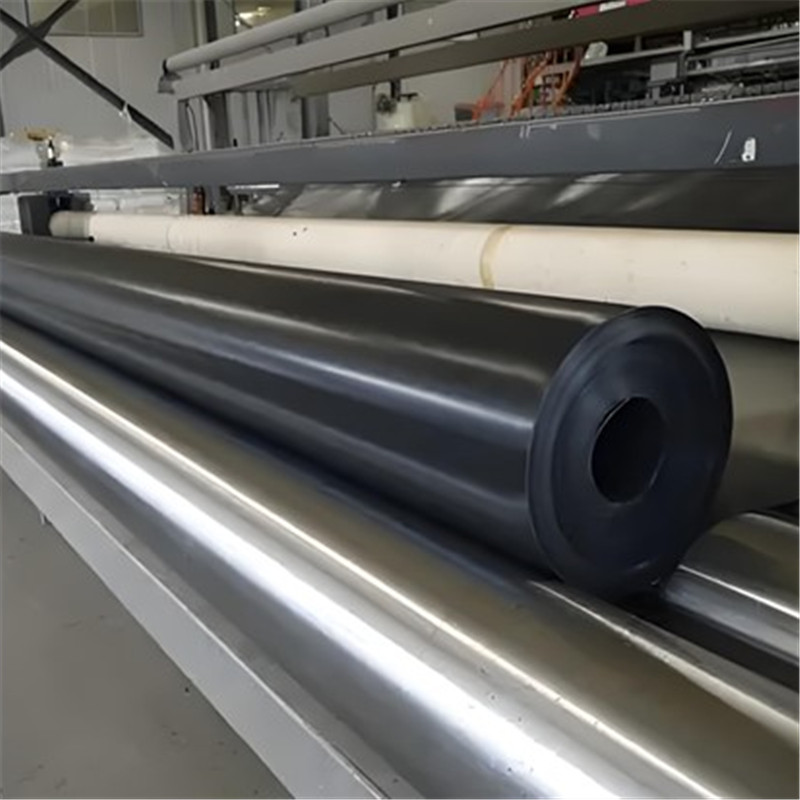

The packaging of geomembrane:

HDPE geomembrane roll is packed by woven bag or according to you requirements.


HDPE Smooth Geomembrane Liner Manufacturer.jpgHDPE Smooth Geomembrane Liner Manufacturer.jpg

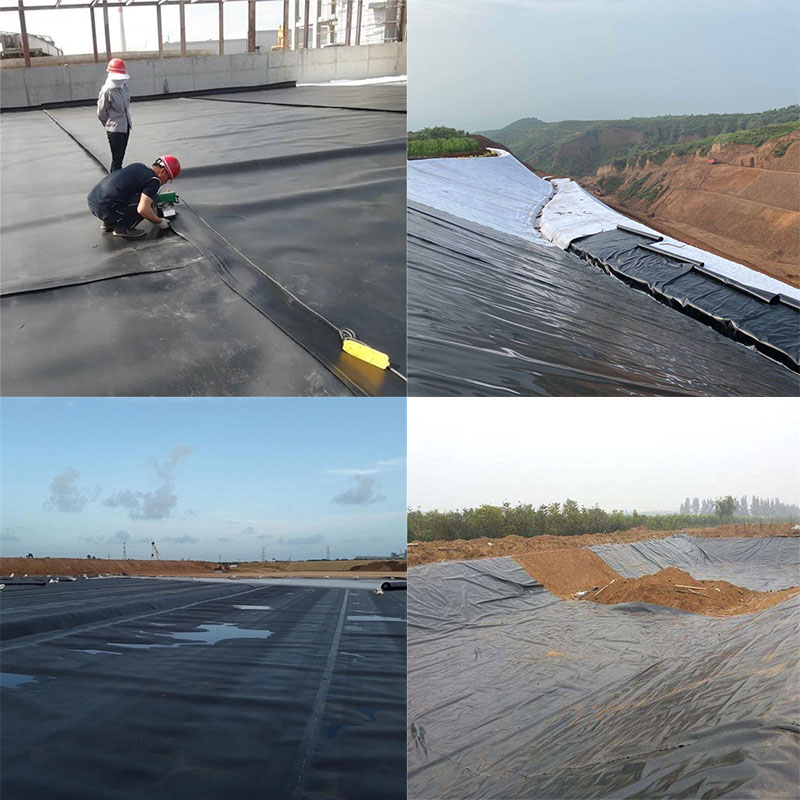

Application:

◆In water conservancy engineering, geomembrane liner is widely used in the seepage prevention treatment of reservoirs, embankments, channels and other projects

◆In environmental protection engineering, geomembrane is widely used in anti-seepage treatment of landfill sites, sewage treatment ponds and other projects

HDPE geomembrane sheet is also widely used in traffic engineering. For example, in the construction of traffic facilities such as roads and railways, the use of geomembrane for impermeable treatment of roadbed can effectively prevent water penetration leading to roadbed softening, settlement and other problems, and improve the stability and safety of traffic facilities.

◆In addition,  hdpe smooth geomembrane liner  can also be used for seepage prevention treatment of tunnel engineering to ensure the normal operation of facilities in the tunnel and the safety of personnel.


HDPE Smooth Geomembrane Liner Manufacturer.jpg


About our company:

Shandong Luke Composite Co.,Ltd. is professional company on production and sales geosynthetics for years.As HDPE geomembrane manufacturer our commitment:Professional equipment, high quality geomembrane series products, first-class service is your best choice,welcome to our company!

If you want to know more about the HDPE geomembranes  ,you can continue to ask me questions.
