HDPE Geomembrane Main Uses And Application

HDPE smooth geomembrane has excellent impermeability.

Geomembranes have good physical and mechanic performance.

Geomembrane has high tearing resistance, strong deformation adaptability

Puncture-resisting and have aging resisting, ultra-violet radiation.

Anti-seepage geomembrane can resistant acid and alkali and corrosion resistance.

It has a long life and is easy to install.

Contact Now

Product Details

HDPE Geomembrane Main Uses And Application

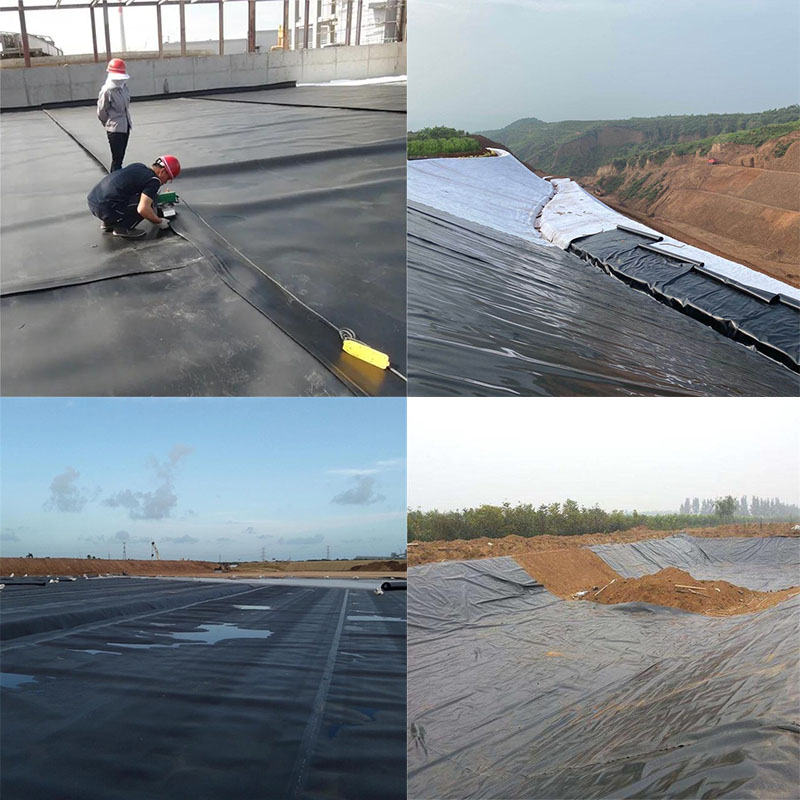

Hdpe geomembrane is a film made of high-density polyethylene material, which is mainly used in the fields of engineering, environmental protection engineering, water conservancy engineering and agricultural engineering. It should mainly include the following aspects:

◆Impermeable water project: HDPE geomembrane has good permeability resistance and can be used for groundwater pollution prevention, landfill, storage tanks, pools and other impermeable water projects.

◆Waste treatment project: HDPE geomembrane can be used for the impervious layer of waste landfill and the collection and treatment of sewage leachate, effectively preventing the pollution of soil and groundwater by waste leakage.

◆HDPE geomembrane used for water conservancy projects such as artificial lakes and reservoirs: HDPE geomembrane can be used as an impermeable layer in water conservancy projects such as artificial clear reservoirs to ensure the tightness and non-leakage of reservoirs

◆Geomembrane used for agricultural engineering: HDPE geomembrane can be used for mulching in greenhouses to prevent the loss of soil water and improve crop yield: dry channels and water-oil impermeable layers can be used

◆Road, railway engineering: geomembrane can be used as a road, railway base seepage layer, to avoid groundwater erosion and damage to the subgrade.

HDPE Geomembrane Main Uses And Application.jpg

Technical parameters of HDPE geomembrane:

	Test Properties	unit	Test Method	Test Frequency	LK MS75	LK MS10	LK MS15	LK MS20	LK MS30
Mechanical Properties	Thickness	mm	D5199	Per roll	0.75	1.00	1.50	2.00	3.00
	Density	g/cc	D1505/D792	90,000kg	0.94
	Tensile properties		D6693 Type IV	9,000kg
	Yield strength	KN/m			11	15	22	29	44
	Break strength	KN/m			20	27	40	53	80
	Yield elongation	%			12	12	12	12	12
	Break elongation	%			700	700	700	700	700
	Tear Resistance	N	D1004	20,000kg	93	125	187	249	374
	Puncture resistance	N	D4883	20,000kg	240	320	480	640	960
	Stress crack Resistance	Hr.	D5397	Per GRI GM-10	300hr
	Carbon Black Content	%	D4218	9,000kg	2.0-3.0%
Reference Properties	Oxidative Induction Time	Min
	Standard OIT		D3895	90,000kg	100min
	High Pressure OIT		D5885	90,000kg	400min
	Oven Aging at 85℃（retained after 90 days）	%	D5712	Per each formulation	55%
	(a)standard OIT		D3895
	(b)High Pressure OIT		D5885
	UV Resistance High Pressure OIT Rerained after1600h	%	D5885	Per each formulation	50%
Roll Size	Roll width	m			7	7	7	7	7
	Roll Length	m			280	210	140	105	70
	Size Stability	%	2%

HDPE Geomembrane Main Uses And Application.jpg

The packaging of geomembrane:

HDPE geomembrane roll is packed by woven bag or according to you requirements.

HDPE Smooth Geomembrane Liner Manufacturer.jpg HDPE Geomembrane Main Uses And Application.jpg

About our company:

Shandong Luke Composite Co.,Ltd. is professional company on production and sales geosynthetics for years.As HDPE geomembrane manufacturer our commitment:Professional equipment, high quality geomembrane liner series products, first-class service is your best choice,welcome to our company!

If you want to know more about the HDPE geomembranes ,you can continue to ask me questions.
