HDPE Geocell for Highway Construction

HDPE geocell can bear large loads and has good stability

The geocell can be folded and are convenient for transportation

After being filled with crushed stone, plain soil or graded aggregate

It forms an integrated high-strength reinforced bedding layer

The geocells have higher lateral restrict and effectively prevent slope landslide and subgrade collapse

It has a complete range of specifications to accommodate all types of roads

Contact Now

Product Details

HDPE Geocell for Highway Construction

Hdpe geocell for highway construction is engineered for geocell road stabilization subgrade reinforcement, and it is also extensively applied in paving projects of factory yards and rural Geocell Driveway.Manufactured from high-tensile HDPE/PP polymer sheets via ultrasonic welding, the product can be stretched out to form a three-dimensional honeycomb grid structure. It comes in standard heights of 50mm, 100mm, 150mm, 200mm, 250mm and 300mm, with welding spacing customizable on demand.As a core geosynthetic material, it addresses soft subgrade treatment and effectively prevents various pavement defects.

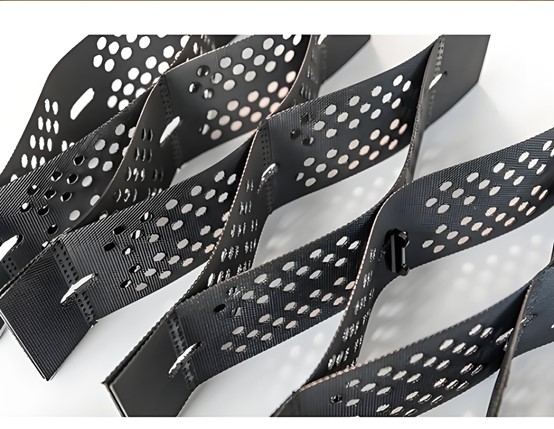

HDPE Geocell for Highway Construction.jpg

The geocell ground grid function and benefits:

◆HDPE geo grid ground gravel grid effectively stabilizes loose soil, minimizing erosion and maintaining surface integrity.

◆It allows water drainage, preventing pooling and ensuring long-term stability.

◆The installation process is very simple. Just unfold the grid, fix it to the ground, and then fill it with gravel. This not only saves time but also reduces labor costs.

◆Resistant to UV rays, chemicals, and temperature fluctuations, this geocell system provides durable performance in various environmental conditions.

◆Whether for residential, commercial, or industrial applications, the HDPE Geocell Gravel Grid delivers a cost-effective, sustainable solution for reliable ground stabilization.

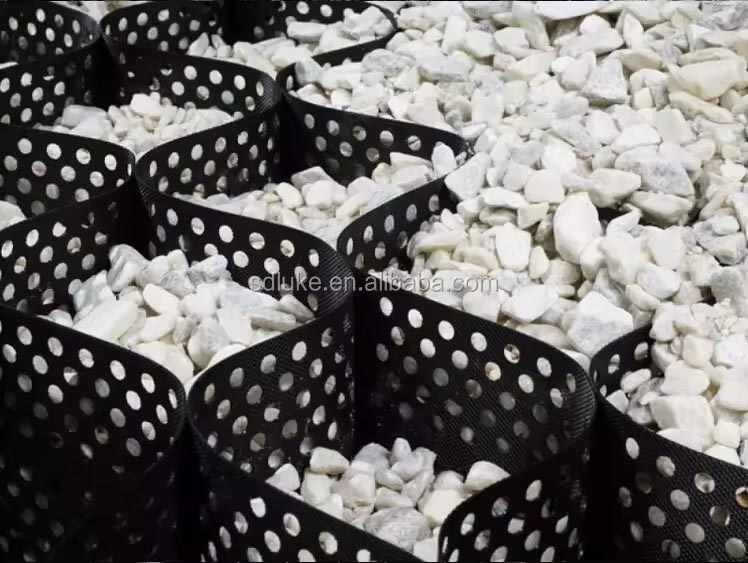

Gravel Stabilizer Geocell.jpg

Technical parameters of hdpe geocell:

Product type	Height (mm)	Welding Distance(mm)	Thickness (mm)	Tensile Strength of Welding Points(N/cm)	Tensile Strength of Commenction of Cells(N/cm)	Tensile Strength of Yield of Each Sheet(Mpa)
Smooth and Not Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Smooth and Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Textured and Not Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Textured and Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Remaiks: This is a basic technical specification. All the above technical parameters can be reached according to customer’s requirement and other special standard can be carried out by agreement or contract.

HDPE Gravel Gird Geocell.jpg

HDPE geocells Packaging:

The HDPE geocell is packed with pallet.In the packaging of the geocells,it is need to choose packaging materials that resist external pressure and wear resistance.

Gravel Stabilizer Geocell.jpg

HDPE geocell for highway construction feature:

◆The three-dimensional honeycomb structure has significantly superior constraining performance compared to ordinary geogrids

◆It is highly strong and resistant to fatigue, suitable for vehicle reciprocating rolling

◆It can withstand extreme outdoor climates and is applicable to all types of road environments across the country

◆ It is foldable and convenient for construction

◆It has a permeable void structure, enabling rapid drainage of water accumulation within the roadbed

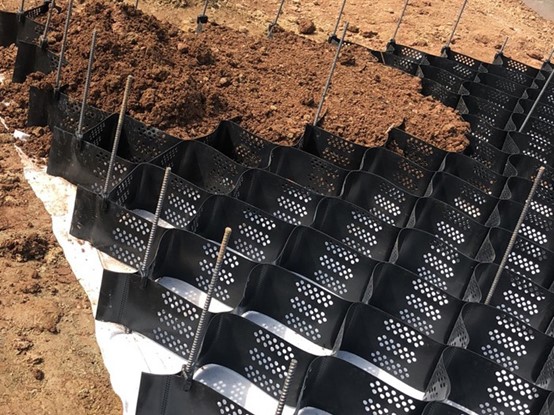

Geocell Subgrade Reinforcement.jpg

The application of HDPE geocell:

◆Plastic geocells used for road, railway, expressway subgrade reinforcement

◆Temporary road ground assistance, airport runway assistance

◆Sports field surface, parking lot and warehouse

◆Hdpe gravel gird geocell for slope protection and ecological restoration

◆Dam seepage prevention and reinforcement

◆Landfill, fixed anti-seep membrane, maintaining the stability of the foundation structure

◆Artificial wetland construction, maintaining the terrain structure of the wetland

◆Geocell gravel grid for building foundation treatment, enhancing the bearing capacity of the foundation

◆Plastic geocells for desert management and engineering in frozen soil areas to improve the stability of the subgrade

Geocell for Road.jpg HDPE Gravel Gird Geocell.jpg

Plastic geocells for road subgrade reinforcement Hdpe gravel gird geocell for slope protection

Geocells for Soil and Gravel Stabilization.jpg Gravel Stabilizer Geocell .jpg

Geocells for soil and gravel stabilization Gravel stabilizer geocell

About our company:

Shandong Luke Composite Co.,Ltd is professional company on production and sales geosynthetics for years.We mainly produce geomembrane,geotextile,drain board,geogrid,hdpe geocell,3D geomat,drain mat,drainage net,grass paver etc.

Our company aim is :quality first,reputation first!

Professional equipment,high quality HDPE geocell,first-class service is your best choice,welcome to our company!

Geocell China Supplier.jpg

After-sales services:

Our company provides a one-stop service, and our staff provides 24/7 online support to solve any technical problems related to HDPE gravel grid in a timely manner. Thank you for your love of our products.

Luke Geo cell Ground Grid.jpg

The core differences between geogrids and geocell:

The geogrid is planar, while the geocell provide three-dimensional constraints, resulting in a stronger reinforcement effect;

The geogrid is only reinforced in layers, and the geocells can independently form a rigid base layer, which has significant advantages in soft soil foundations;

The geocells have their own soil retention cavities, and greening slope protection is a core scenario that the grid cannot replace.

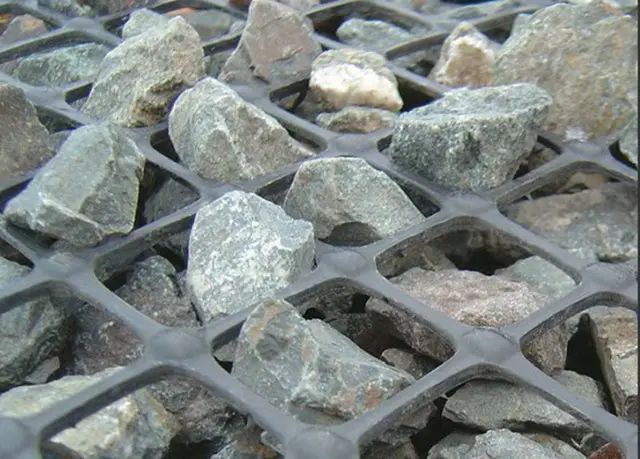

Gravel Stabilizer Geogrid.png Gravel Stabilizer Geocell.jpg
