HDPE Gravel Grid geocells

HDPE gravel grid geocell can bear large loads and has good stability.

The geocells have higher lateral restrict and effectively prevent slope landslide and subgrade collapse.

The geocell is flexible and has a small transport volume.

Convenient connection and fast construction speed.

The geocell height, welding distance can be customized as your according.

Contact Now

Product Details

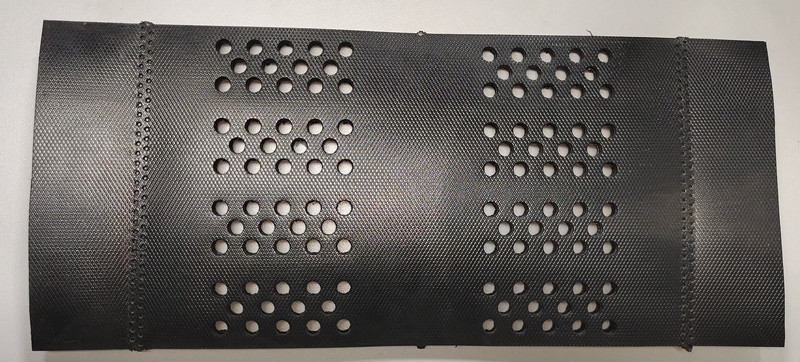

HDPE Gravel Grid Geocells

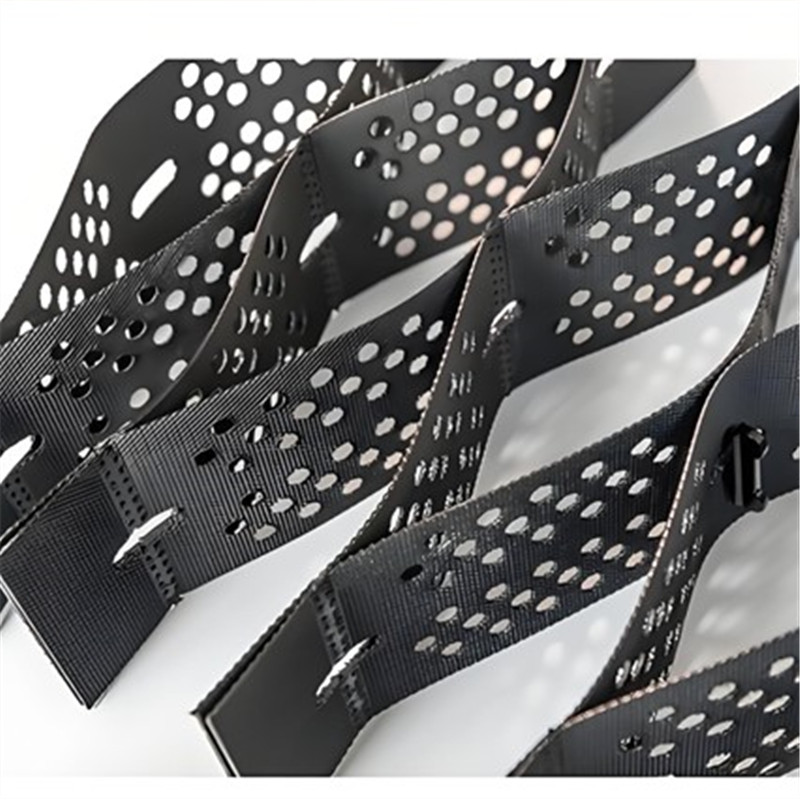

HDPE gravel grid geocells, also known as plastic geocells, are high-performance geosynthetic products made from high-density polyethylene (HDPE). They feature a three-dimensional honeycomb structure.When expanded and filled with gravel, sand, or soil, forms a stable, load-bearing system.

These geocells excel in enhancing ground stability—they distribute weight evenly, prevent soil erosion, and boost the bearing capacity of weak subgrades, making them ideal for roads, parking lots, and embankments. Specifically, as a geocell for slope, they play a critical role in slope protection: their interlocking structure anchors the slope soil, resists water-induced erosion, and maintains slope integrity, even in harsh environmental conditions.

The HDPE gravel grid geocell has high strength, chemical corrosion resistance and long service life. It is an environmentally friendly and cost-effective choice for civil engineering and geological engineering projects.

HDPE Gravel Grid Geocell.jpg

The features of HDPE gravel grid geocell:

◆HDPE geocell has the characteristics of light weight, high strength, corrosion resistance, aging resistance, good seepage resistance

◆The geocell gravel grid is flexible, foldable and easy to transport ,which can be drawn into a network during construction.

◆The hdpe geocells have high side limit and anti-slip, anti-deformation, effectively enhance the bearing capacity of the roadbed and disperse the load.

◆It can change the geocell height, welding distance and other geometric dimensions to meet different engineering needs.

◆Convenient connection and fast construction speed.

Gravel Stabilizer Geocell.jpg

Technical parameters of hdpe geocell:

Product type	Height (mm)	Welding Distance(mm)	Thickness (mm)	Tensile Strength of Welding Points(N/cm)	Tensile Strength of Commenction of Cells(N/cm)	Tensile Strength of Yield of Each Sheet(Mpa)
Smooth and Not Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Smooth and Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Textured and Not Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Textured and Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Remaiks: This is a basic technical specification. All the above technical parameters can be reached according to customer’s requirement and other special standard can be carried out by agreement or contract.

HDPE Gravel Gird Geocell.jpg

HDPE geocells Packaging:

The HDPE geocell is packed with pallet.In the packaging of the geocells,it is need to choose packaging materials that resist external pressure and wear resistance.

Gravel Stabilizer Geocell.jpg

The application of HDPE geocell:

◆Plastic geocells used for road, railway, expressway subgrade reinforcement

◆Temporary road ground assistance, airport runway assistance

◆Sports field surface, parking lot and warehouse

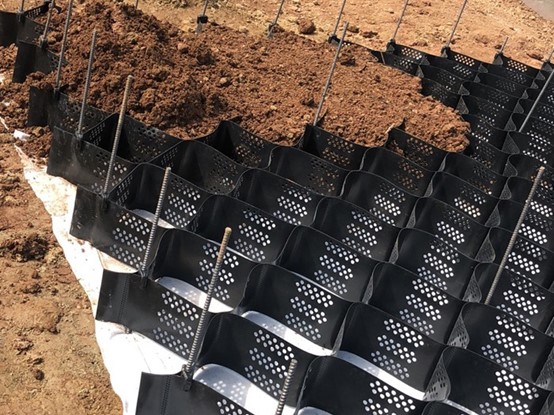

◆Hdpe gravel gird geocell for slope protection and ecological restoration

◆Dam seepage prevention and reinforcement

◆Landfill, fixed anti-seep membrane, maintaining the stability of the foundation structure

◆Artificial wetland construction, maintaining the terrain structure of the wetland

◆Geocell gravel grid for building foundation treatment, enhancing the bearing capacity of the foundation

◆Plastic geocells for desert management and engineering in frozen soil areas to improve the stability of the subgrade

Geocell for Road.jpg HDPE Gravel Gird Geocell.jpg

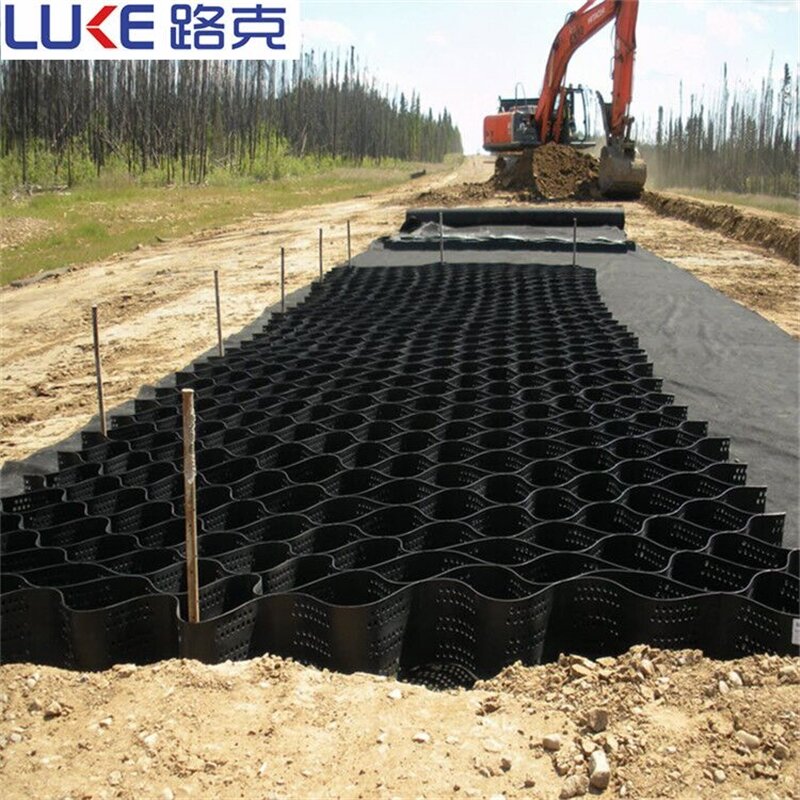

Plastic geocells for road subgrade reinforcement Hdpe gravel gird geocell for slope protection

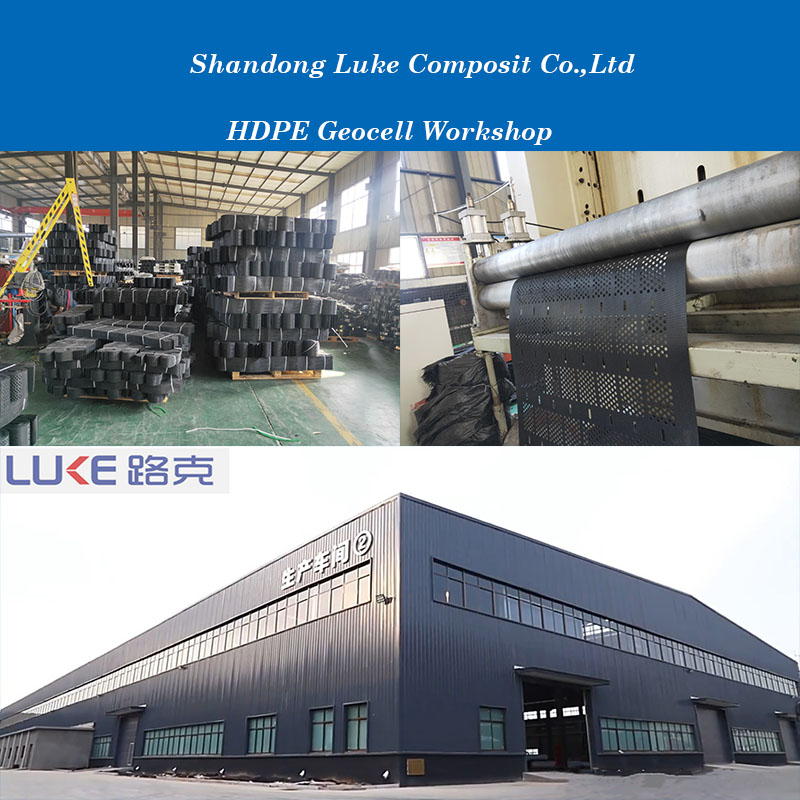

About our company:

Shandong Luke Composite Co.,Ltd is professional company on production and sales geosynthetics for years.We mainly produce geomembrane,geotextile,drain board,geogrid,hdpe geocell,3D geomat,drain mat,drainage net,grass paver ect.

Our company aim is :quality first,reputation first!

Professional equipment,high quality HDPE geocell,first-class service is your best choice,welcome to our company!

HDPE Geocell Supplier .jpg

After-sales services:

Our company provides a one-stop service, and our staff provides 24/7 online support to solve any technical problems related to HDPE gravel grid in a timely manner. Thank you for your love of our products.

Geocell for Sale .jpg
