Gravel Stabilizer Geocell HDPE Geocell Ground Gravel Grid

HDPE gravel grid geocell can bear large loads and has good stability.

The geocells have higher lateral restrict and effectively prevent slope landslide and subgrade collapse.

The geocell ground grid is flexible and has a small transport volume.

Convenient connection and fast construction speed.

The geocell gravel grid height, welding distance can be customized as your according.

Factory sales hdpe geocell grids and has the best price

Contact Now

Product Details

Gravel Stabilizer Geocell HDPE Geocell Ground Gravel Grid

The HDPE Geocell Gravel Grid is a plastic production for ground stabilization, It can enhance the load-bearing capacity of gravel surfaces. Made from high-density polyethylene (HDPE), this three-dimensional honeycomb structure provides exceptional reinforcement for driveways, pathways, parking lots, and construction sites.

As a Honeycomb Geocell Gravel Stabilizer, its cellular design confines gravel particles, preventing lateral movement and rutting. When expanded, the interconnected cells form a robust matrix that distributes weight evenly, reducing soil compaction and extending the lifespan of gravel surfaces.

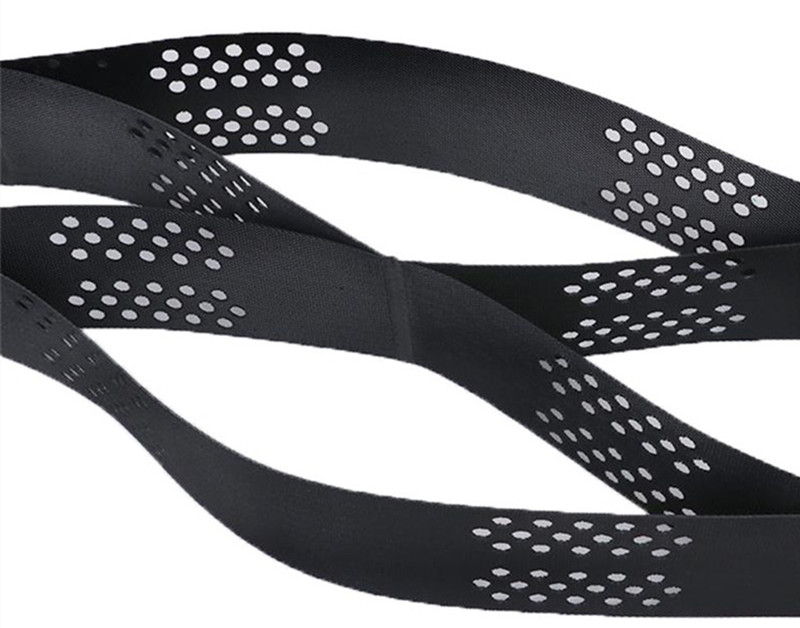

HDPE Geocell Ground Gravel Grid .jpg

The geocell ground grid function and benefits:

◆HDPE geo grid ground gravel grid effectively stabilizes loose soil, minimizing erosion and maintaining surface integrity.

◆It allows water drainage, preventing pooling and ensuring long-term stability.

◆The installation process is very simple. Just unfold the grid, fix it to the ground, and then fill it with gravel. This not only saves time but also reduces labor costs.

◆Resistant to UV rays, chemicals, and temperature fluctuations, this geocell system provides durable performance in various environmental conditions.

◆Whether for residential, commercial, or industrial applications, the HDPE Geocell Gravel Grid delivers a cost-effective, sustainable solution for reliable ground stabilization.

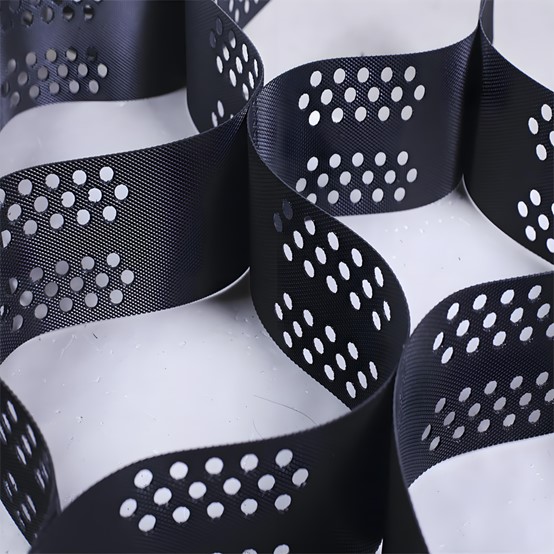

Geocell Ground Grid.jpg

Technical parameters of hdpe geocell:

Product type	Height (mm)	Welding Distance(mm)	Thickness (mm)	Tensile Strength of Welding Points(N/cm)	Tensile Strength of Commenction of Cells(N/cm)	Tensile Strength of Yield of Each Sheet(Mpa)
Smooth and Not Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Smooth and Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Textured and Not Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Textured and Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Remaiks: This is a basic technical specification. All the above technical parameters can be reached according to customer’s requirement and other special standard can be carried out by agreement or contract.

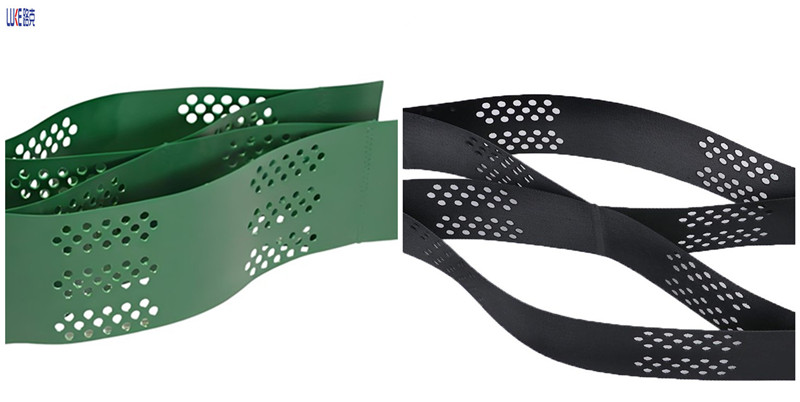

HDPE Gravel Gird Geocell.jpg

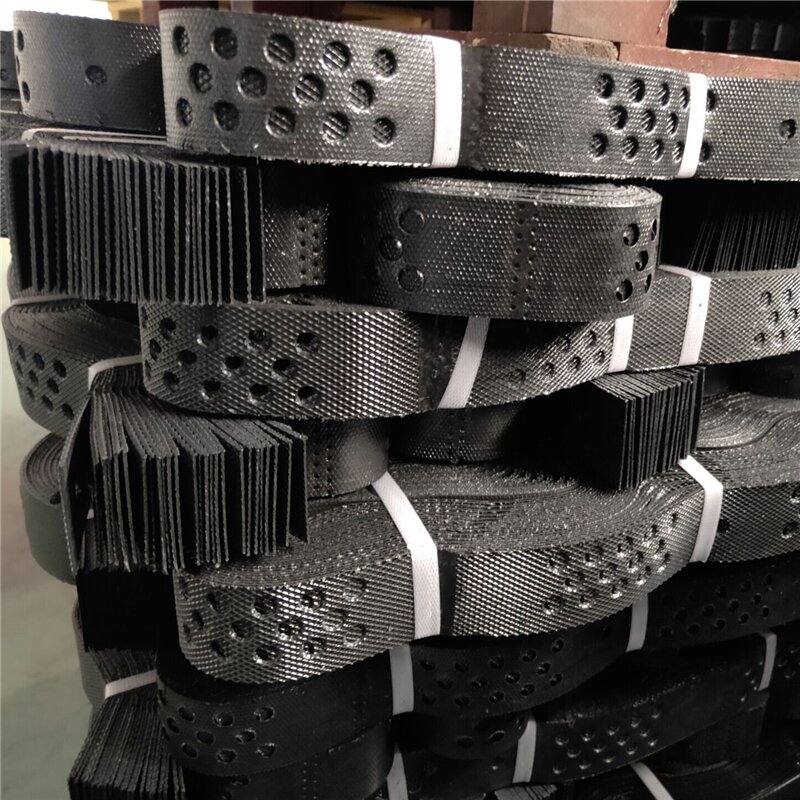

HDPE geocells Packaging:

The HDPE geocell is packed with pallet.In the packaging of the geocells,it is need to choose packaging materials that resist external pressure and wear resistance.

Gravel Stabilizer Geocell.jpg

The application of HDPE geocell:

◆Plastic geocells used for road, railway, expressway subgrade reinforcement

◆Temporary road ground assistance, airport runway assistance

◆Sports field surface, parking lot and warehouse

◆Hdpe gravel gird geocell for slope protection and ecological restoration

◆Dam seepage prevention and reinforcement

◆Landfill, fixed anti-seep membrane, maintaining the stability of the foundation structure

◆Artificial wetland construction, maintaining the terrain structure of the wetland

◆Geocell gravel grid for building foundation treatment, enhancing the bearing capacity of the foundation

◆Plastic geocells for desert management and engineering in frozen soil areas to improve the stability of the subgrade

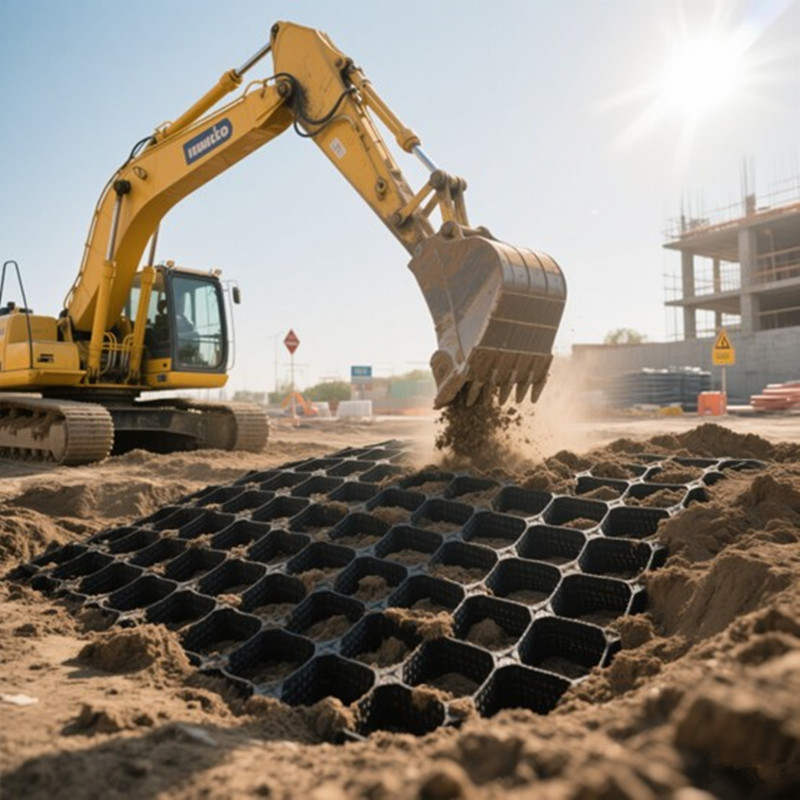

Geocell for Road.jpg HDPE Gravel Gird Geocell.jpg

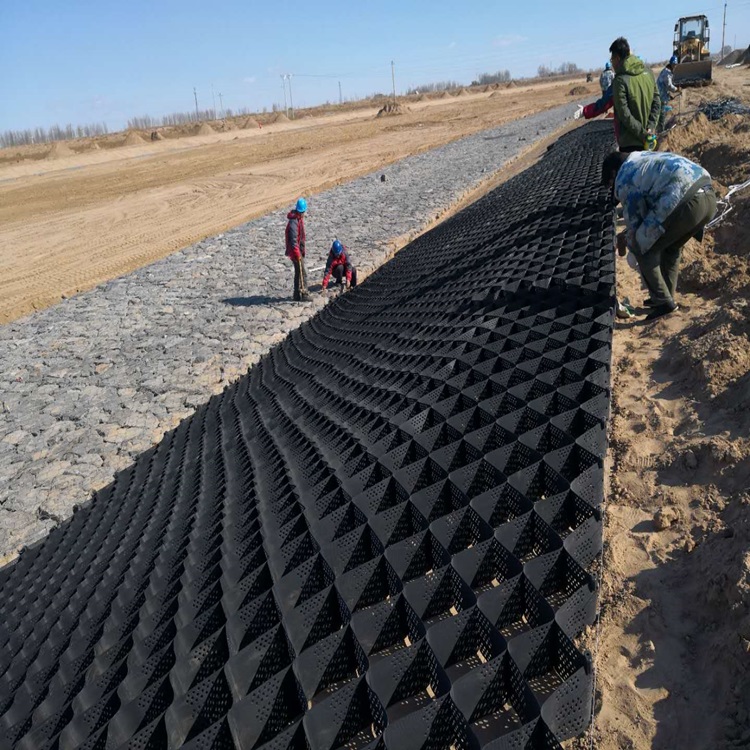

Plastic geocells for road subgrade reinforcement Hdpe gravel gird geocell for slope protection

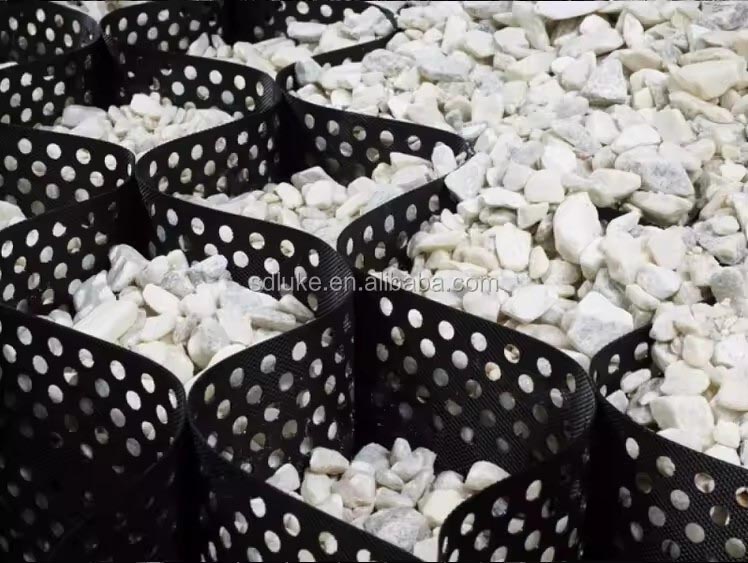

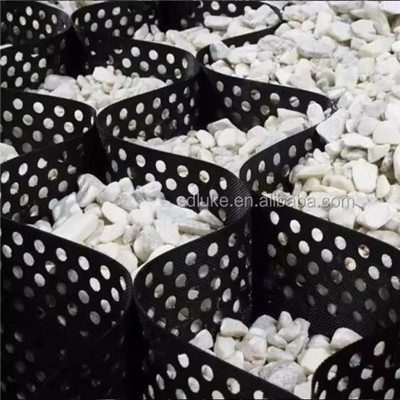

Geocells for Soil and Gravel Stabilization.jpg Geocell Gravel Grid .jpg

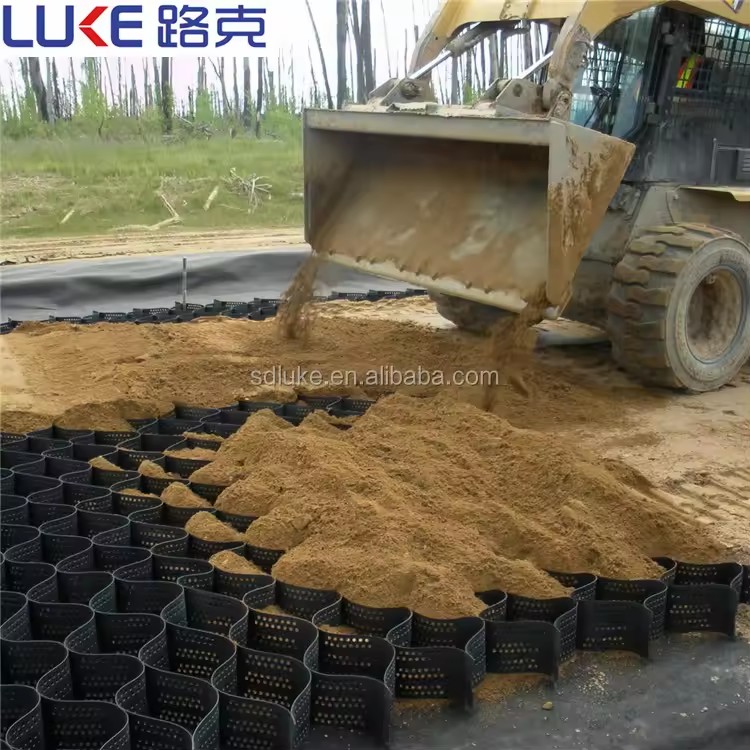

Geocells for soil and gravel stabilization Geocell gravel grid

About our company:

Shandong Luke Composite Co.,Ltd is professional company on production and sales geosynthetics for years.We mainly produce geomembrane,geotextile,drain board,geogrid,hdpe geocell,3D geomat,drain mat,drainage net,grass paver etc.

Our company aim is :quality first,reputation first!

Professional equipment,high quality HDPE geocell,first-class service is your best choice,welcome to our company!

Luke HDPE Geocell Grid Ground.jpg

After-sales services:

Our company provides a one-stop service, and our staff provides 24/7 online support to solve any technical problems related to HDPE gravel grid in a timely manner. Thank you for your love of our products.

Luke Geo cell Ground Grid.jpg
