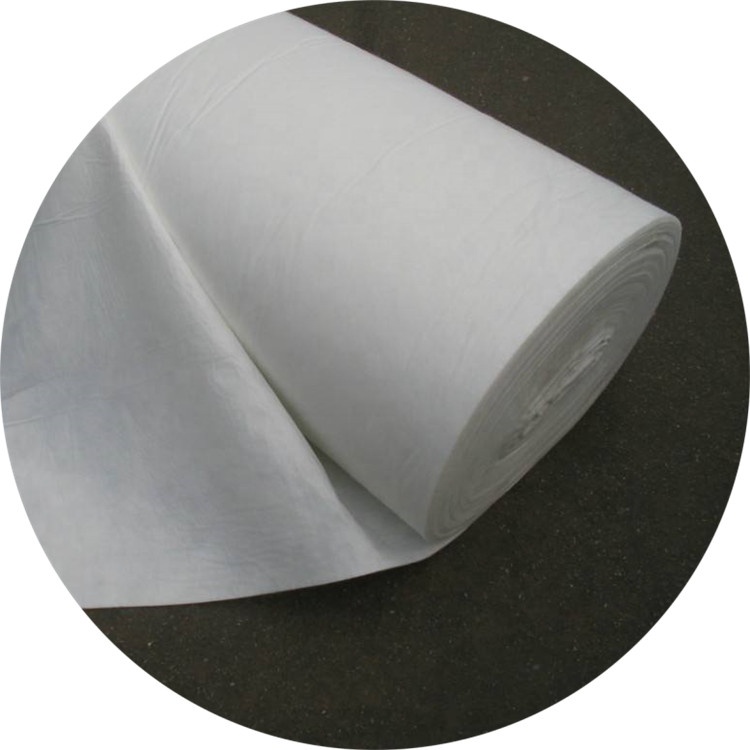

Felt Type Drainage Fabric Geotextile For Draining

Felt Type Drainage Fabric Geotextile For Draining

Felt-type drainage fabric, also known as non-woven geotextile, is commonly used in drainage applications due to its excellent filtration and water permeability properties. It is made from synthetic fibers (such as polypropylene or polyester) that are mechanically bonded together through needle-punching or thermal processes. This type of geotextile is ideal for separating, filtering, and draining water in various civil engineering and construction projects.

Key Features of Felt-Type Drainage Geotextile:

◆ Filtration: Prevents soil particles from clogging drainage systems while allowing water to pass through.

◆ Permeability: High water flow capacity ensures efficient drainage.

◆Durability: Resistant to UV rays, chemicals, and biological degradation.

◆Separation: Keeps different soil layers or materials (soil and gravel) from mixing.

◆ Flexibility: Conforms to uneven surfaces and accommodates ground movement.

Geotextile specification:

Name:non-woven Geotextile Filter Fabric

Width:1~6mm

Thickness:0.9mm-5mm

Weight:100g~800g/m²

Material:PP(polypropylene) or PET(Polyester)

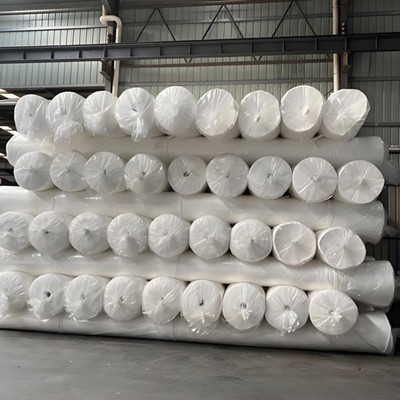

Lead time and packaging of  geotextiles:

Woven bag in roll or customer’s requirements.

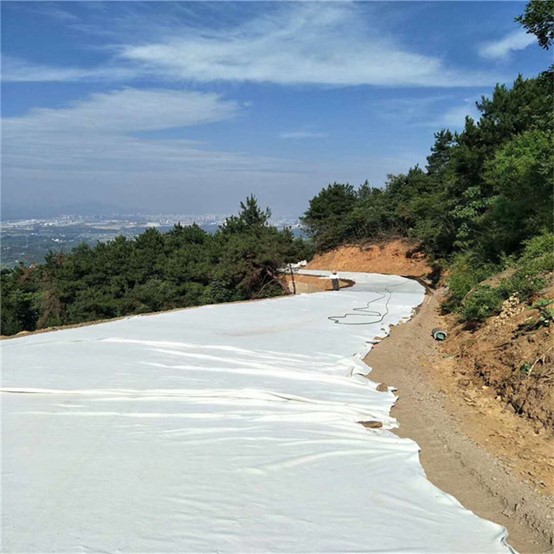

Installation tips:

◆Site Preparation: Clear the area of debris and level the ground.

◆Fabric Placement: Roll out the geotextile fabric over the prepared area, ensuring it covers the entire surface.

◆Overlap and Secure: Overlap adjacent fabric sheets by a minimum of 12 inches and secure them with stakes or pins to prevent movement.

◆Rock Placement: Carefully place the coastal rocks (riprap) over the fabric, ensuring even distribution and minimal fabric damage.

Application of geotextile filter fabric :

◆Reinforcement in retaining wall backfill

◆Strengthen the weak road and fix the cracks on the road.

◆ Improve the stability of slope and reinforcement soil,avoid water and soil loss and soil frozen in jure.

◆Isolation layer of drainage pipe or gravel sub-drain.

◆Vertical or horizontal drainage,bury in soil to release air pressure.

◆ Reinforcement the weak foundation of engineering of road,railway,embankment,airport.

◆Road and railway construction:Used beneath roads, railways, and embankments to improve drainage and stability.

About our products and our after-sales service:

Shandong Luke Composite Co., Ltd. is a professional company specializing in the production and sales of geomaterials. The company mainly produces geotextile, geomembrane, drain board,geogrid,geocell,3D geomat, drain mat drainage net, grass paver ect.Our company provides a one-stop service, and our staff provides 24/7 online support to solve any technical problems related to fiber in a timely manner. Thank you for your love of our products.

our aim is quality first, credit first!
