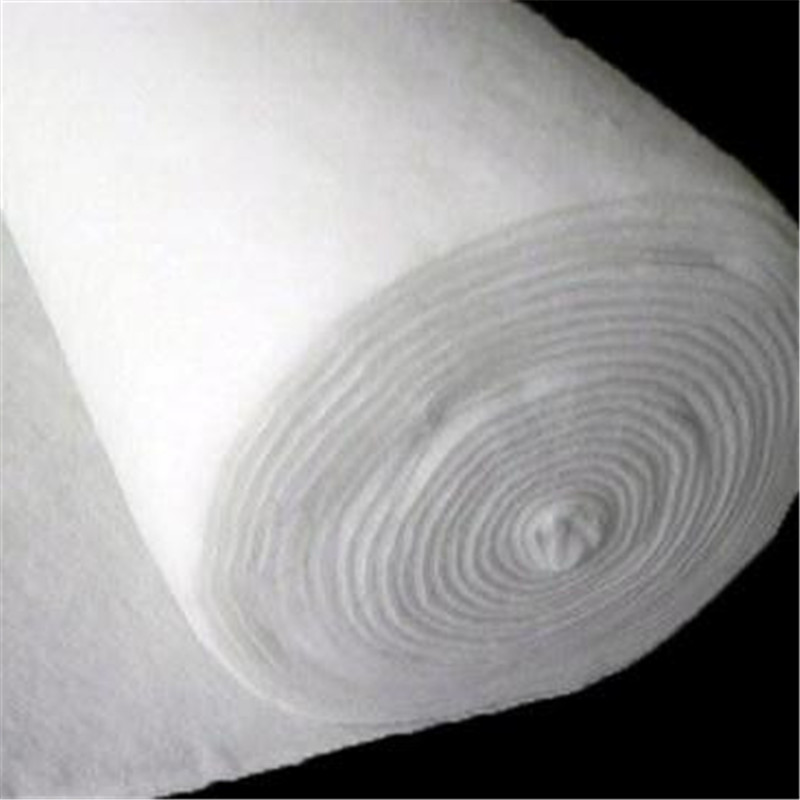

Non-woven Geotextile Filter Fabric

Non-woven Geotextile Filter Fabric

Non-woven geotextile filter fabric is produced from polyester or polypropylene fiber. Different from woven fabric woven fabrics, it is produced by bonding fibers mechanically (needle-punching), thermally, or chemically, resulting in a porous, felt-like structure. Its primary roles include filtration, separation, drainage, and protection in civil engineering projects. Typically made from polypropylene or polyester, chosen for durability, chemical resistance, and resistance to biological degradation. These materials ensure longevity in harsh environments.

High performance geotextiles:

◆ Filtration: Prevents soil particles from clogging drainage systems while allowing water to pass through.

◆Durability: Resistant to UV rays, chemicals, and biological degradation.

◆Separation: Keeps different soil layers or materials (soil and gravel) from mixing.

◆ Flexibility: Conforms to uneven surfaces and accommodates ground movement.

◆Drainage: Facilitates lateral water flow, reducing hydrostatic pressure.

◆Protection: Shields waterproof membranes or surfaces from punctures and abrasion.

Geotextile specification:

Name:non-woven Geotextile Filter Fabric

Width:1~6mm

Thickness:0.9mm-5mm

Weight:100g~800g/m²

Material:PP(polypropylene) or PET(Polyester)

Lead time and packaging of  geotextiles:

Woven bag in roll or customer’s requirements.

Installation Considerations:

◆Overlap Seams:Minimum 12-18 inch overlap to ensure continuity.

◆Securing: Use stakes or pins to prevent displacement.

◆Orientation:Place the permeable side toward the drainage source.

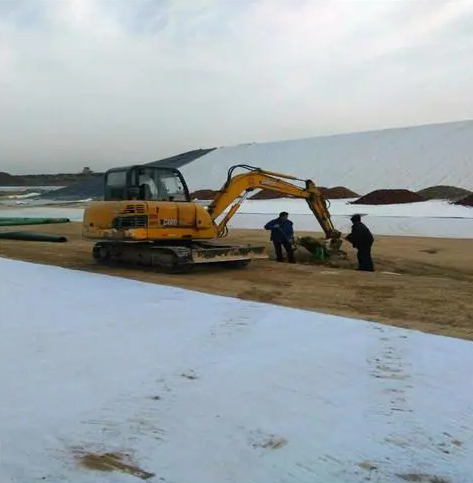

Application of geotextile filter fabric:

Geotextile fabric for roads  construction: Stabilizes substrates and prevents aggregate sinking into soft soils.

Drainage systems: Used in French drains, retaining walls, and  landfills to enhance water flow.

Erosion control: Protects slopes and riverbanks via products like silt fences.

Landscaping: Acts as a weed barrier while permitting water permeability.

About our products and our after-sales service:

Shandong Luke Composite Co., Ltd. is a professional company specializing in the production and sales of geomaterials. The company mainly produces geotextile, geomembrane, drain board,geogrid,geocell,3D geomat, drain mat drainage net, grass paver ect.Our company provides a one-stop service, and our staff provides 24/7 online support to solve any technical problems related to fiber in a timely manner. Thank you for your love of our products.

our aim is quality first, credit first!
