2.0mm Impermeable High Density Polyethylene Geomembrane

Impermeable high density polyethylene geomembrane is safe and environmentally friendly.

Geomembrane sheets have good physical and mechanic performance.

Geomembrane has high tearing resistance, strong deformation adaptability

Puncture-resisting and have aging resisting, ultra-violet radiation.

Impermeable hdpe geomembrane can resistant acid and alkali and corrosion resistance.

Can be customized with different widths and thicknesses according to customer requirements.


  Contact Now
Product Details

2.0mm Impermeable High Density Polyethylene Geomembrane

The impermeable high-density polyethylene geomembrane has an extremely excellent waterproofing performance, completely preventing water from seeping through.The membrane body is made of dense materials such as high-density polyethylene, with a molecular structure without pores. The permeability coefficient is generally ≤ 1×10⁻¹³ cm/s, and some high-end products can reach ≤ 1×10⁻¹⁴ cm/s, which is almost impermeable. Compared with traditional clay anti-seepage and concrete waterproofing, its anti-seepage effect is improved by more than 100 times. It can completely block surface water, sewage, water storage, etc. from seeping in, protecting the groundwater environment and reducing water loss.

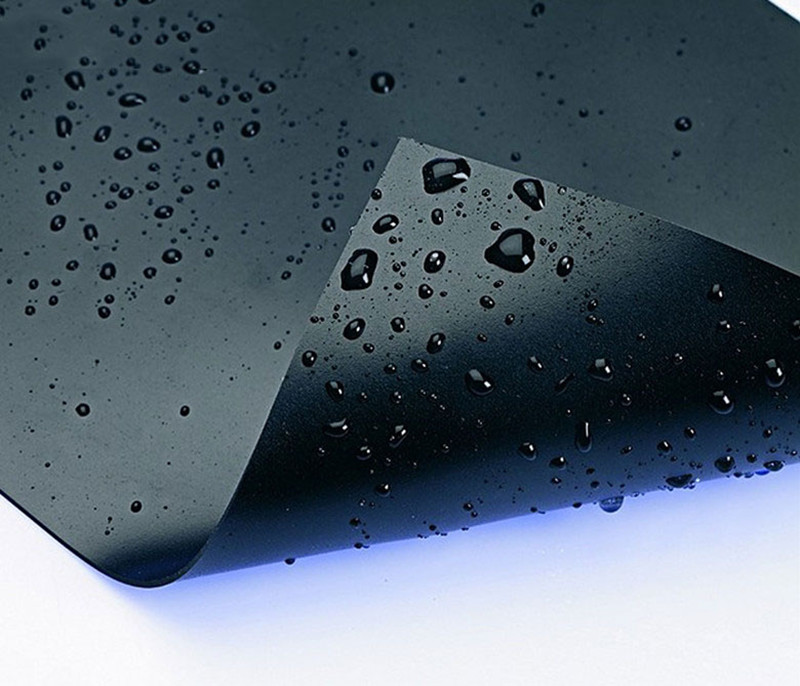

2.0mm Impermeable High Density Polyethylene Geomembrane.jpg


HDPE geomembrane technical parameters:




Test Properties

unit

Test Method

Test Frequency

LK

MS75

LK

MS10

LK

MS15

LK

MS20

LK

MS30



Mechanical Properties

Thickness

mm

D5199

Per roll

0.75

1.00

1.50

2.00

3.00

Density

g/cc

D1505/D792

90,000kg

0.94

Tensile properties




D6693

Type IV



9,000kg


Yield strength

KN/m

11

15

22

29

44

Break strength

KN/m

20

27

40

53

80

Yield elongation

%

12

12

12

12

12

Break elongation

%

700

700

700

700

700

Tear Resistance

N

D1004

20,000kg

93

125

187

249

374

Puncture resistance

N

D4883

20,000kg

240

320

480

640

960

Stress crack Resistance

Hr.

D5397

Per GRI GM-10

300hr

Carbon Black Content

%

D4218

9,000kg

2.0-3.0%

Reference Properties

Oxidative Induction Time

Min








Standard OIT


D3895

90,000kg

100min

High Pressure OIT


D5885

400min

Oven Aging at 85℃(retained after 90 days

%

D5712

Per

each formulation



50%

80%

(a)standard OIT


D3895

(b)High Pressure OIT


D5885

UV Resistance High Pressure OIT Rerained after1600h

%

D5885

Per

each formulation

50%

Roll Size

Roll width

m



7

7

7

7

7

Roll Length

m



280

210

140

105

70

Size Stability

%

2%

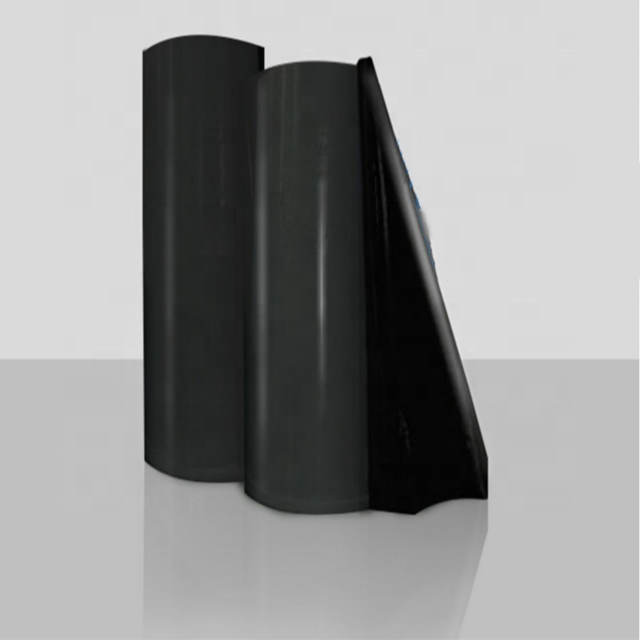

HDPE Pond Liner.png


The features of HDPE geomembrane pond liners:

◆Hdpe geomembrane has excellent anti-seepage performance and almost completely prevents the penetration of liquids and gases.

◆It is resistant to strong acids, strong alkalis, oils and organic solvents, and is suitable for chemical pollution sites.

◆Uv resistance and weather resistance, with a long service life.

◆Impermeable High Density Polyethylene Geomembrane has strong tensile strength and high elongation at break.

Hdpe geomembrane sheet has good temperature adaptability, excellent high-temperature stability and does not crack at low temperatures.

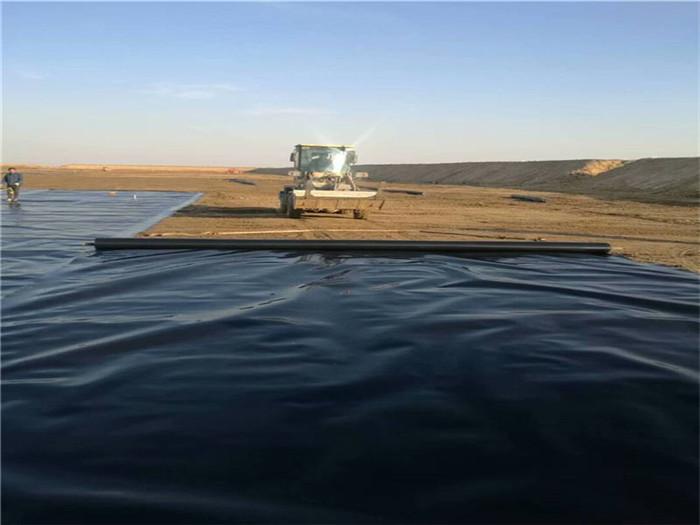

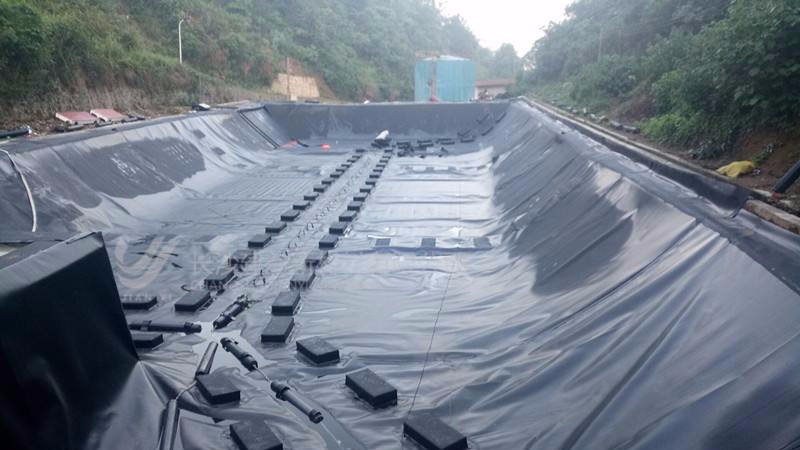

High quality HDPE geomembrane pond liner.jpgImpermeable HDPE geomembrane.jpg


The packaging of geomembrane:

HDPE geomembrane roll is packed by woven bag or according to your request.


HDPE Smooth Geomembrane Liner Manufacturer.jpg HDPE  Geomembrane For Pond.jpg


Customer feedback about HDPE geomembrane:

Our geomembrane has been exported for many orders and has received unanimous praise from customers.

HDPE Geomembrane Customer Feedback.jpg


About our company:

Shandong Luke Composite Co.,Ltd is professional company on production and sales geosynthetics for years.We mainly produce turf reinforcement mat,geo membranegeotextile, dimple drain boardgeogrid,geo cell,3D geomat, drain mat, drainage net, grass paver etc.Our geosynthetic materials have been exported to more than 30 nations and regions, such as Southeast Asia, Australia, North America, Europe, Middle East and Africa. As HDPE geomembrane manufacturer our commitment:Professional equipment, high quality geomembrane liner series products, first-class service is your best choice,welcome to our company!

If you want to know more about the HDPE geomembranes  ,you can continue to ask me questions.

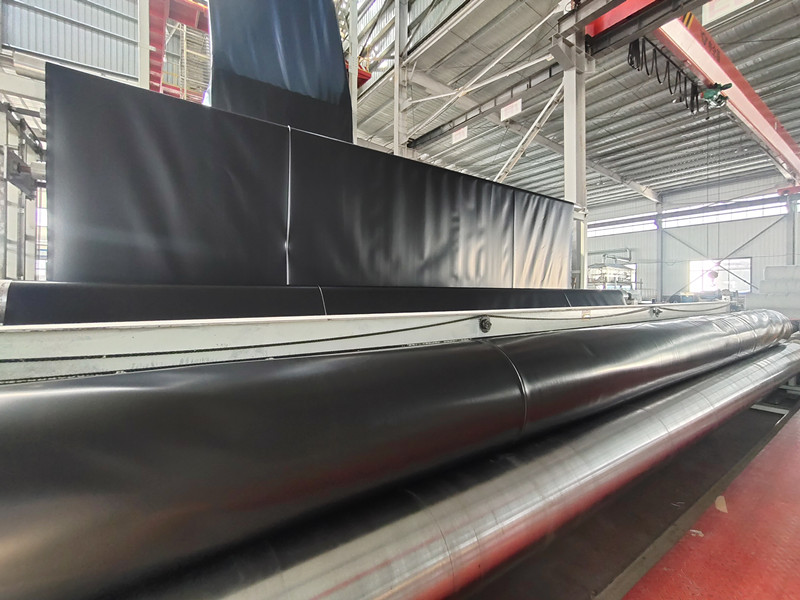

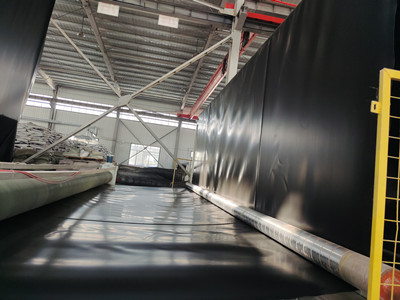

Wholesale HDPE geomembrane.jpg1764315857398483.jpg


HDPE Pond Liner Special Application:

Suitable for agricultural irrigation ponds, aquaculture fish ponds (koi ponds, fish and shrimp breeding ponds), landscape ponds, and household water storage tanks, etc.

HDPE Geomembrane for Reservoir Liner Special Application:

Suitable for large drinking water reservoirs, medium-sized irrigation reservoirs, flood control and regulation reservoirs, and anti-seepage repair projects of old reservoirs, etc.

It can also be used for projects such as anti-seepage of sewage ponds, lining of garbage landfills, anti-seepage of artificial lakes, and anti-seepage of channels.


Geomembrane Liner For Tailings Ponds.jpgHDPE Geomembrane Installation Pond Liner.jpg

 Geomembrane used for Mine Tailing Liner                       Reservoir geomembrane

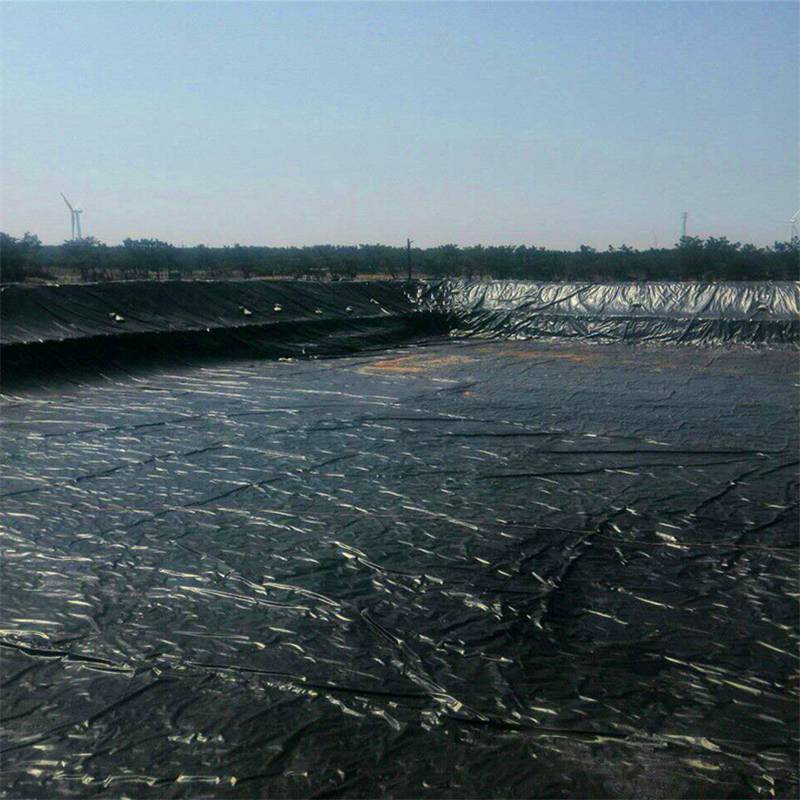

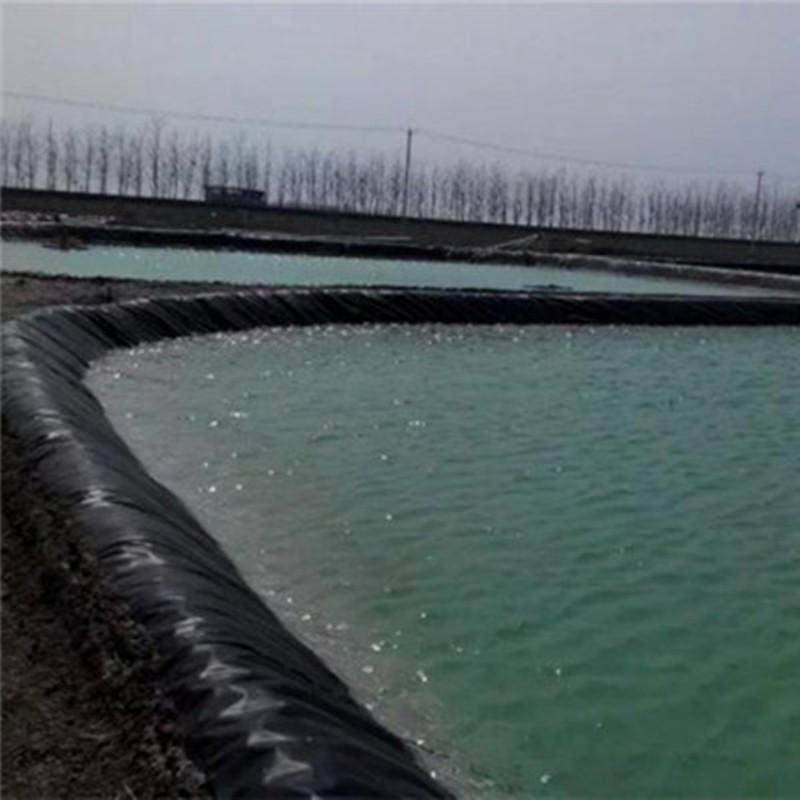

HDPE Geomembrane for Landfill Liner.jpgHDPE Geomembrane Pond Liner.jpg

 HDPE waterproof geomembrane for landfill  liner               Fish safe HDPE pond liner


HDPE pond liner installation and after-sales service:

Our company provides a one-stop service, and our staff provides 24/7 online support to solve any technical problems related to HDPE geomembrane liner in a timely manner. Thank you for your love of our products.


HDPE Pond Liner Installation:.jpg
