HDPE Geomembrane Liner For Waterproofing

HDPE  geomembrane sheet has excellent impermeability.

Geomembranes have good physical and mechanic performance.

Geomembrane has high tearing resistance, strong deformation adaptability

Puncture-resisting and have aging resisting, ultra-violet radiation.

Anti-seepage geomembrane can resistant acid and alkali and corrosion resistance.

It has a long life and is easy to install.


  Contact Now
Product Details

HDPE  Geomembrane Liner For Waterproofing

HDPE (high-density polyethylene) geomembrane is a flexible anti-seepage material made of high-density polyethylene resin. With the addition of auxiliary materials such as carbon black, anti-aging agents, antioxidants, and stabilizers, it forms a continuous membrane layer through extrusion or calendering processes. It is mainly used to prevent the penetration of liquids, gases, or pollutants and is a core material in the field of engineering anti-seepage. With a typical thickness ranging from 0.5mm to 3.0mm, it provides exceptional resistance to chemicals, UV radiation, and punctures. HDPE geo membrane  is often used as a waterproof liner for ponds, tailings seepage prevention, etc .The hdpe geomembrane price is affordable  and excellent performance,so it is used in widely.All products are produced in accordance with national standards and the American GRI standards.

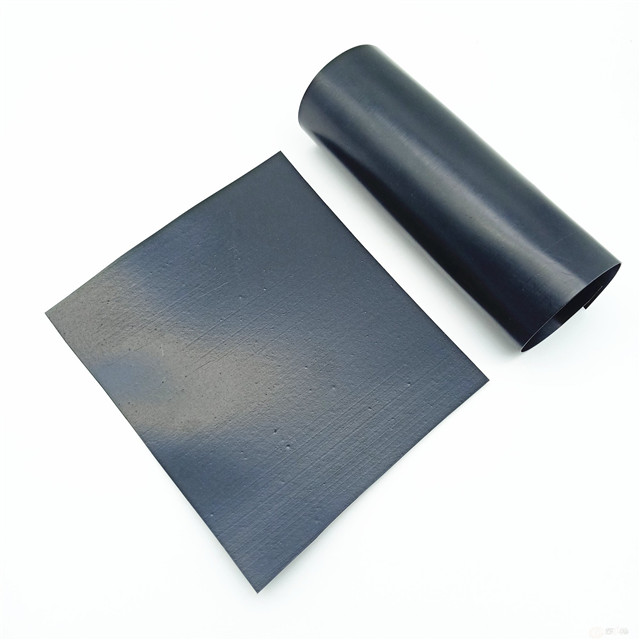

HDPE Geomembrane Sheet.jpg


Technical parameters of HDPE geo membrane sheet:


Test   Properties

unit

Test Method

Test Frequency

LK

MS75

LK

MS10

LK

MS15

LK

MS20

LK

MS30



Mechanical Properties

Thickness

mm

D5199

Per roll

0.75

1.00

1.50

2.00

3.00

Density

g/cc

D1505/D792

90,000kg

0.94

Tensile properties




D6693

Type IV



9,000kg


Yield strength

KN/m

11

15

22

29

44

Break strength

KN/m

20

27

40

53

80

Yield elongation

%

12

12

12

12

12

Break elongation

%

700

700

700

700

700

Tear Resistance

N

D1004

20,000kg

93

125

187

249

374

Puncture resistance

N

D4883

20,000kg

240

320

480

640

960

Stress crack Resistance

Hr.

D5397

Per GRI GM-10

300hr

Carbon Black Content

%

D4218

9,000kg

2.0-3.0%

Reference Properties

Oxidative Induction Time

Min








Standard OIT


D3895

90,000kg

100min

High Pressure OIT


D5885

400min

Oven Aging at 85℃(retained after 90 days)

%

D5712

Per

each formulation

55%

(a)standard OIT


D3895

(b)High Pressure OIT


D5885

UV Resistance High Pressure OIT Rerained   after1600h

%

D5885

Per

each formulation

50%

Roll Size

Roll width

m



7

7

7

7

7

Roll Length

m



280

210

140

105

70

Size Stability

%

2%


HDPE  Geomembrane Liner For Waterproofing.jpg


The features of HDPE geomembrane liners:

◆Hdpe geomembrane has excellent anti-seepage performance and almost completely prevents the penetration of liquids and gases.

◆It is resistant to strong acids, strong alkalis, oils and organic solvents, and is suitable for chemical pollution sites.

◆Uv resistance and weather resistance, with a long service life.

◆It has strong tensile strength and high elongation at break.

Hdpe geomembrane sheet has good temperature adaptability, excellent high-temperature stability and does not crack at low temperatures.




The packaging of geomembrane:

HDPE geomembrane roll is packed by woven bag or according to you requirements.


HDPE Smooth Geomembrane Liner Manufacturer.jpgHDPE  Geomembrane For Pond.jpg


Customer feedback about HDPE geomembrane:

Our geomembrane has been exported for many orders and has received unanimous praise from customers.

HDPE Geomembrane Customer Feedback.jpg


About our company:

Shandong Luke Composite Co.,Ltd. is professional company on production and sales geosynthetics for years.We mainly produce turf reinforcement mat,geo membrane, geo textile, drain board, geogrid,geo cell,3D geomat, drain mat, drainage net, grass paver etc.Our geosynthetic materials have been exported to more than 30 nations and regions, such as Southeast Asia, Australia, North America, Europe, Middle East and Africa. As HDPE geomembrane manufacturer our commitment:Professional equipment, high quality geomembrane liner series products, first-class service is your best choice,welcome to our company!

If you want to know more about the HDPE geomembranes  ,you can continue to ask me questions.

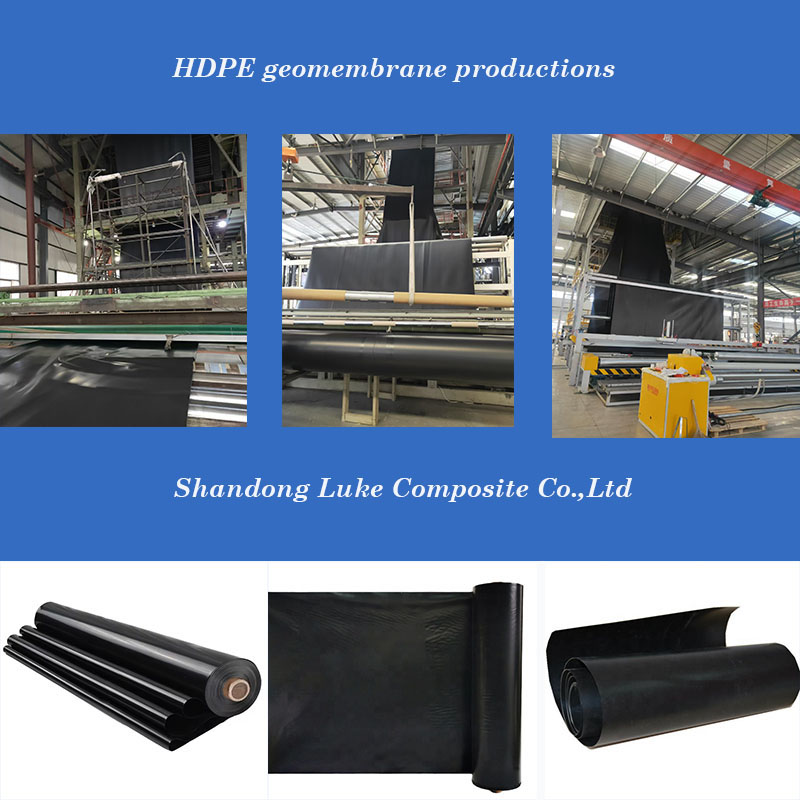

HDPE  Geomembrane Workshop.jpg


HDPE geomembrane application fields:

◆Environmental protection projects: Geomembranes are used in anti-seepage layers of landfill sites, linings of sewage treatment ponds, and storage of hazardous waste.

◆Water conservancy projects: Waterproof geomembranes are used for anti-seepage of reservoirs/ponds, river lining, and waterproofing of artificial lakes.

◆Mining and energy: Geomembranes are used for anti-seepage of tailings ponds, padding of heap leaching ponds, and vibration isolation of oil storage tank foundations.

◆Agriculture and aquaculture: Anti-seepage of aquaculture ponds, sealing of biogas digesters, waterproofing of irrigation water tanks.


Geomembrane Liner For Tailings Ponds.jpgHDPE Geomembrane For Reservoir Anti-seepage.jpg

HDPE Geomembrane Liner For  Fish Pond.jpgGeo membrane Liner For Aquaculture.jpg


After-sales service:

Our company provides a one-stop service, and our staff provides 24/7 online support to solve any technical problems related to HDPE geomembrane liner in a timely manner. Thank you for your love of our products.
