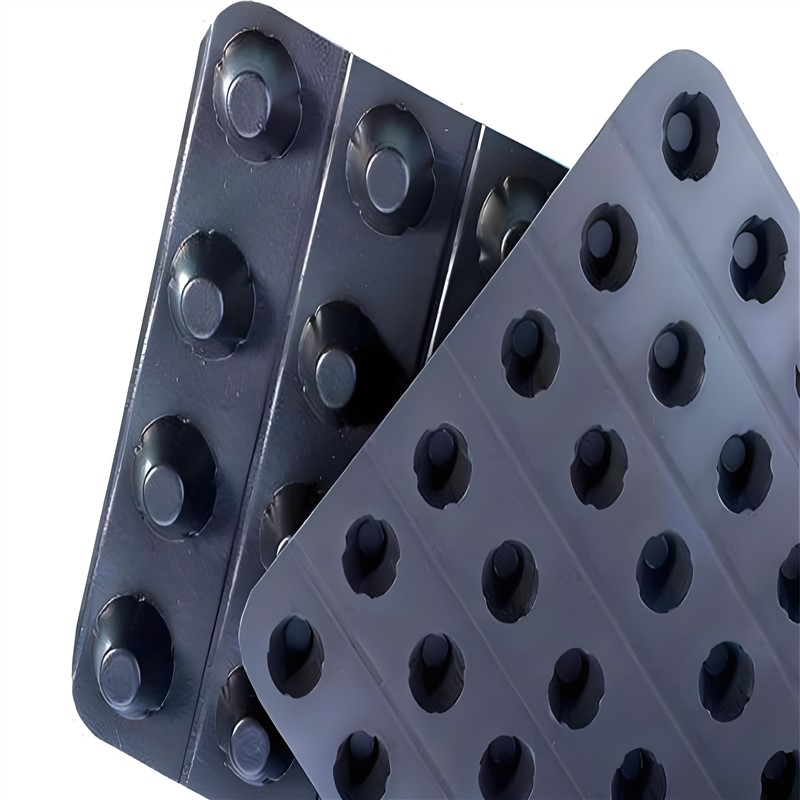

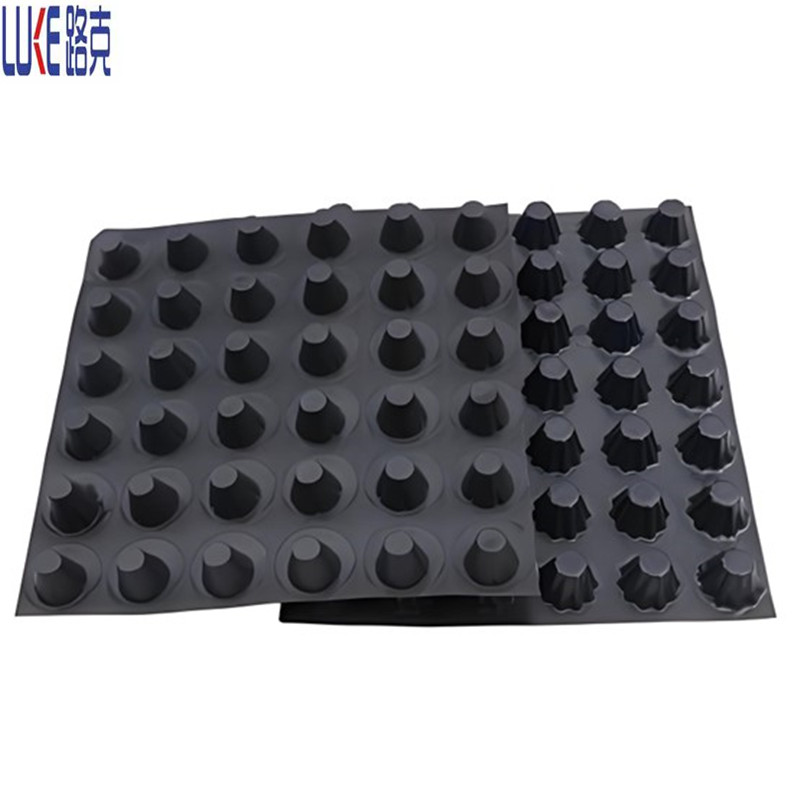

Hdpe Plastic Dimpled Drain Board Sheet

Hdpe Plastic Dimpled Drain Board Sheet

Most plastic drainage sheets are made of high density polyethylene (HDPE) or composite materials with geotextile layers, providing durability, chemical resistance and UV protection. Some products combine HDPE with low density polyethylene (LDPE) to increase flexibility for drainage in buildings. The plastic drainage board has two functions of water storage and drainage, and the compression performance is obviously better than that of similar products, and can withstand high compression loads above 450Kpa, and can withstand the extreme load of mechanical rolling in the backfilling process of planting roofing.

Product specifications:

Name:                                                    HDPE Dimple Drainage Board

Material:                                                HDPE

Color:                                                     Black

Pattern:                                                  Plain

Shape:                                                    Roll form

Application:                                           Landscape and Green Roofs

Country of Origin:                                Made in China

Minimum order quantity：                 500 square meter

Dimple Drain Board Sheet Features:

◆Convenient construction, easy maintenance and economy.

◆Strong load resistance and durability.

◆can ensure that excess water quickly drained away.

◆the water storage part can store part of the water.

◆can provide sufficient water and oxygen for plant growth.

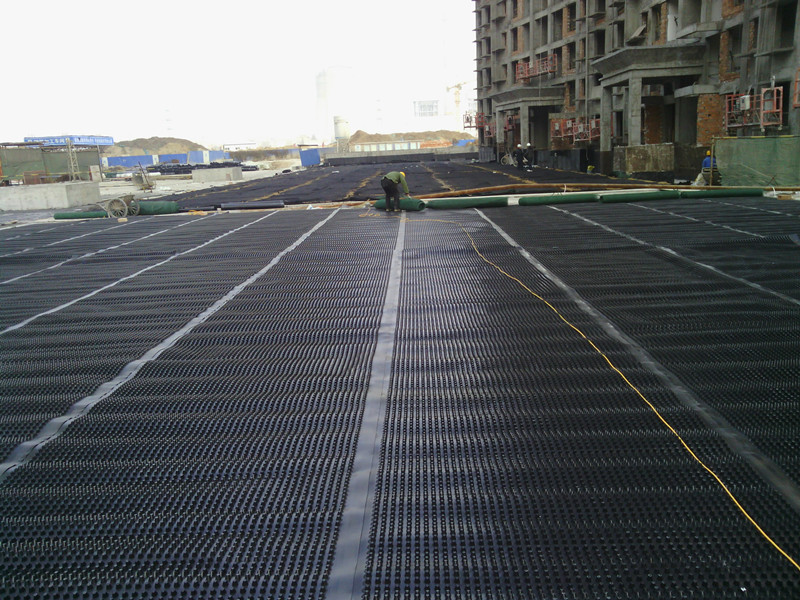

Installation Tips

Orientation: Dimples face the structure (e.g., wall or membrane) to create drainage channels

Geotextile Layer: Attach fabric to the soil-facing side to prevent clogging.

drainage Outlets: Ensure channels direct water to weep holes or pipes.

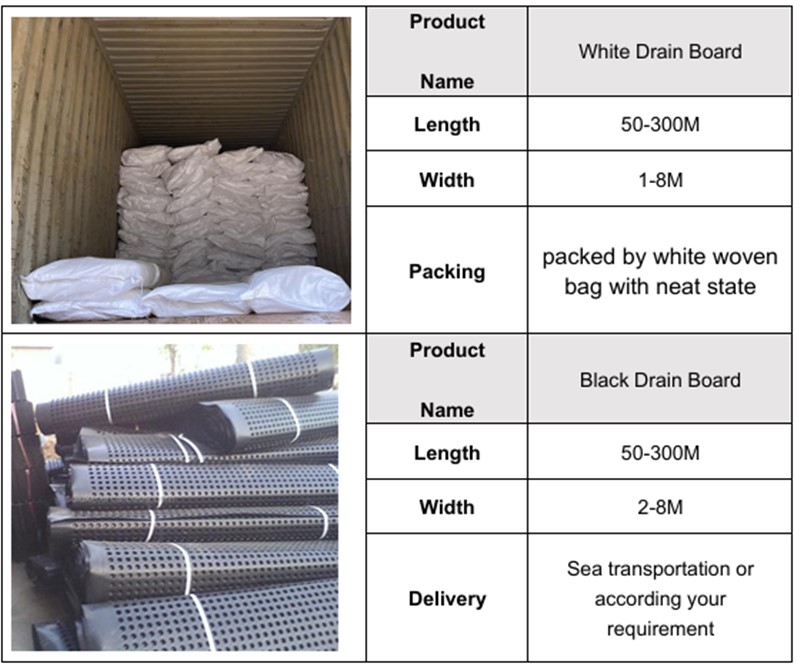

Drain board packaging and divery:

Packed by roll or in white woven bag, neatly packed, or according to your requirements.and delivery within the specified date.

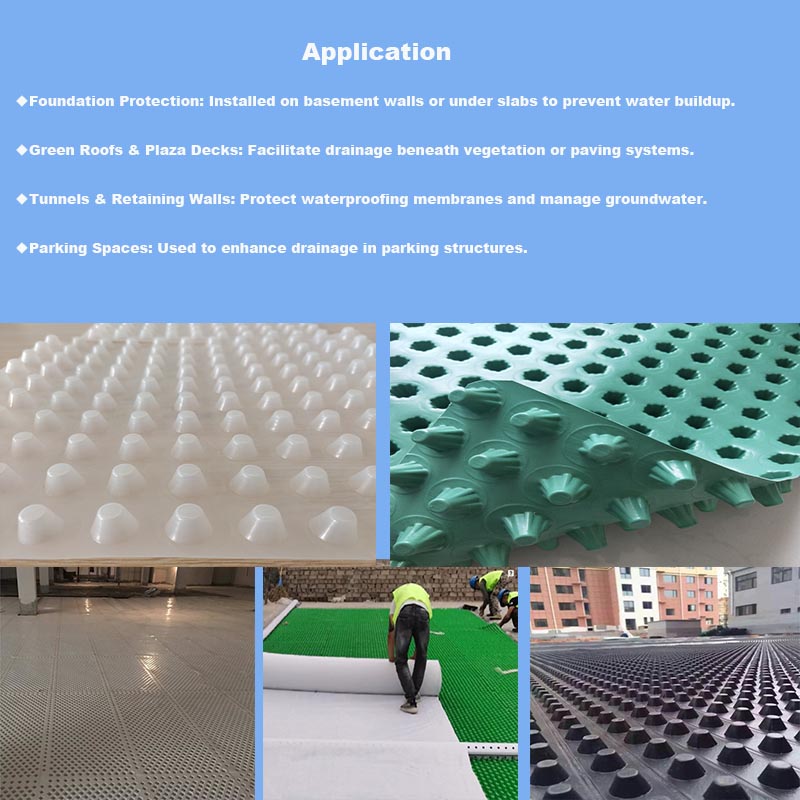

Hdpe plastic dimpled drain board dimple drainage sheet application:

◆Foundation Protection: Installed on basement walls or under slabs to prevent water buildup.

◆Green Roofs & Plaza Decks: Facilitate drainage beneath vegetation or paving systems.

◆Tunnels & Retaining Walls: Protect waterproofing membranes and manage groundwater.

◆Parking Spaces: Used to enhance drainage in parking structures.

About us:

Shandong Luke Composite Co.,Ltd. is professional company on production and sales geosynthetics for years, which is located at the foot of the beautiful Mountain Tai.

We mainly produce geomembrane, geotextile, drain board, geogrid,geocell,3D geomat, drain mat, drainage net, grass paver ect.

Our geosynthetic materials have been exported to more than 30 nations and regions, such as Southeast Asia, Australia, North America, Europe, Middle East and Africa.

Our commitment:

Professional equipment, high quality geomembrane series products, first-class service is your best choice, welcome to our company!

If you want to know more about the dimple drainage board ,you can continue to ask me questions.
