High Quality Dimple Drain Board

High compression strength

Good Waterproofing and Drainage

Have Good Vertical Drainage Properties

The overhead structure of the drainage board can block the heat transfer and reduce the indoor temperature

Product Details

High-quality drainage boards are usually made of high-density polyethylene (HDPE) or polypropylene (PP), also known as plastic drainage sheets.How to choose high quality drainage board?Choose from the following aspects:

◆Material selection:

The preferred choice of HDPE or PP material drainage board to ensure its durability and compression performance.

◆Drainage capacity:

Select the displacement of the drainage board (drainage capacity per unit time) according to the needs of the project.

◆Compressive strength:

Select the appropriate compressive strength (usually in kPa) according to the engineering load.

Geotextile matching:

If soil particles need to be filtered, choose a drain board with geotextiles.

Environmental Certification:

Ensure that products comply with environmental standards (such as ISO certification, RoHS certification, etc.).

Brand and after-sales service:

Choose well-known brands to ensure product quality and after-sales service.

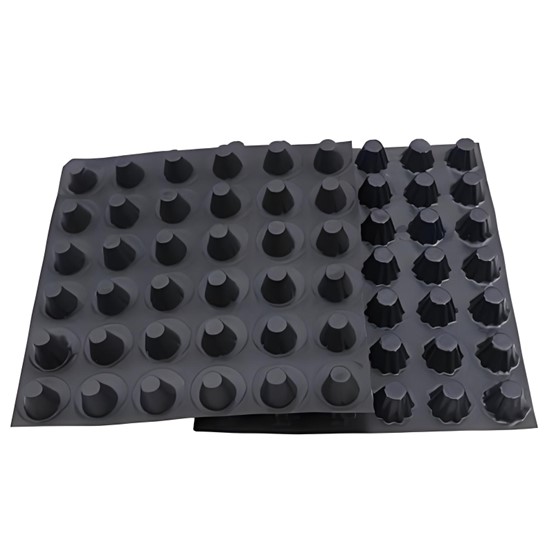

Plastic Drainage Board Sheet.jpg

Technical Parameter of hdpe dimple drain board:

No	Model Name	LK-H08	LK-H10	LK-H12	LK-H16	LK-H20	LK-H25	LK-H30
1	Material	HDPE	HDPE	HDPE	HDPE	HDPE	HDPE	HDPE
2	Drain height(mm)	08	10	12	16	20	25	30
3	Weight (g/m²)	1000	1100	1200	1400	1500	1600	1800
4	Board thickness (mm)	0.7	0.8	0.9	1	1.1	1.1	1.2
5	Tensile strength(N/100mm)	350	350	350	350	350	350	350
6	Anti- pression strength(Kpa)	300	300	300	300	300	300	300
7	Elongation rate (% ＞)	80	80	80	80	80	80	80
8	Flow (cm³.s) ≥	10	10	10	10	10	10	10
9	CBR puncture strength N	350	350	350	350	350	350	350
