Fast Assembly PP Modular Rainwater Tank

Fast Assembly PP Modular Rainwater Tank

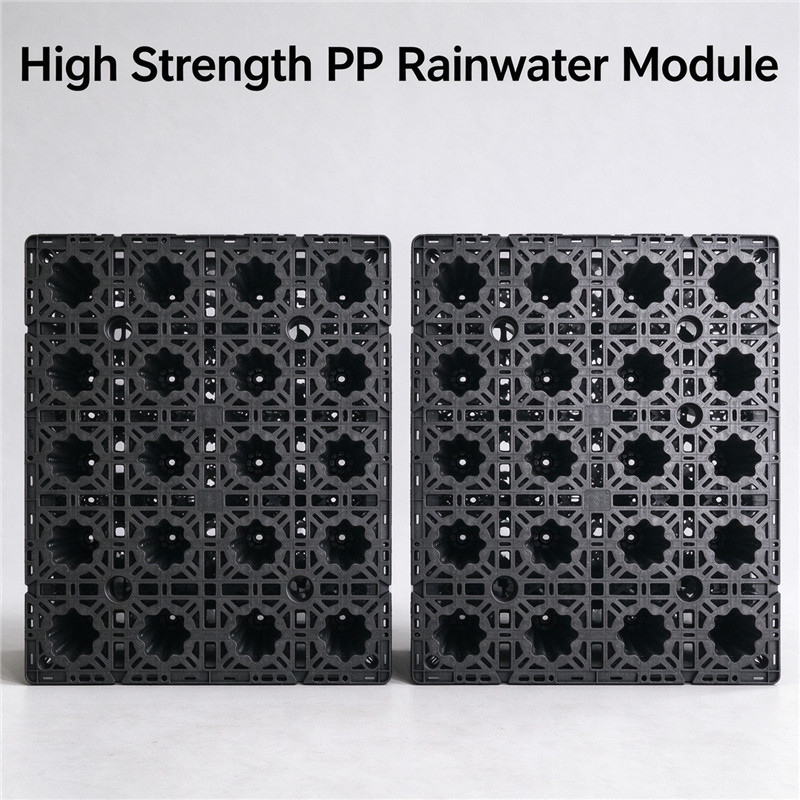

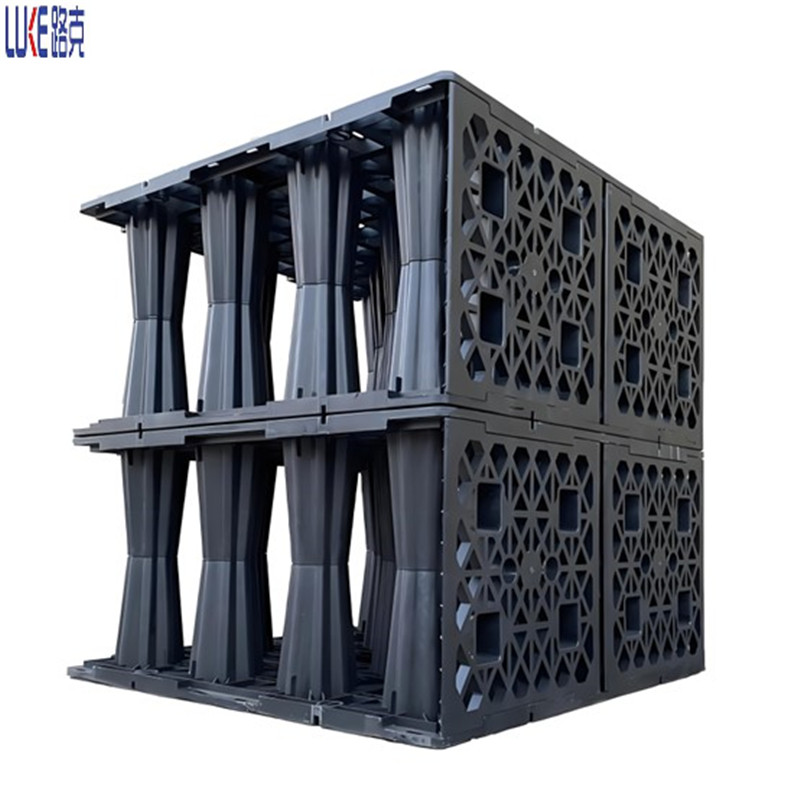

Fast assembly PP modular rainwater collection tank. The main body is a high-strength polypropylene lattice unit, also known as the PP rainwater storage module. It features a snap-adaptation system for on-site rapid assembly, requiring no large equipment and allowing flexible combination and adjustment of capacity. When used as the heavy load stormwater module, it offers excellent load-bearing performance, with the top suitable for soil covering and greening or constructing parking lots. As the garden sponge city module, it is compatible with residential and garden sponge projects. The module has a high porosity; wrapping an impermeable membrane allows it to store rainwater, which can be used for landscaping irrigation and road washing. The material is aging-resistant and recyclable. Compared to traditional concrete storage tanks, it has a shorter construction period and is widely applied in municipal, park, and real estate projects for rainwater regulation and reuse.

Fast assembly PP modular rainwater tank features:

◆The unit rainwater modules are assembled by snap-fit connection

◆The on-site construction is simple and does not require large machinery

◆The module adopts optimized grid structure design, with a void ratio of up to 95%

◆Efficient installation, no excavation required, shortens project cycle

◆Environmentally friendly and energy-saving, saves costs

The rainwater harvesting module function:

◆PP Rainwater Storage Module: Collect and store rainwater for irrigation and road washing

◆Heavy Load Stormwater Module: Detain stormwater, reduce peak flow and relieve pressure on drainage pipes

◆Garden Sponge City Module: Retain and infiltrate rainwater in gardens to recharge groundwater

◆Realize rainwater resource reuse and save tap water

◆Control surface runoff to meet sponge city requirements

Installation instructions:

The rainwater module Installation is simple:

◆Level the site and lay anti-seepage membranes

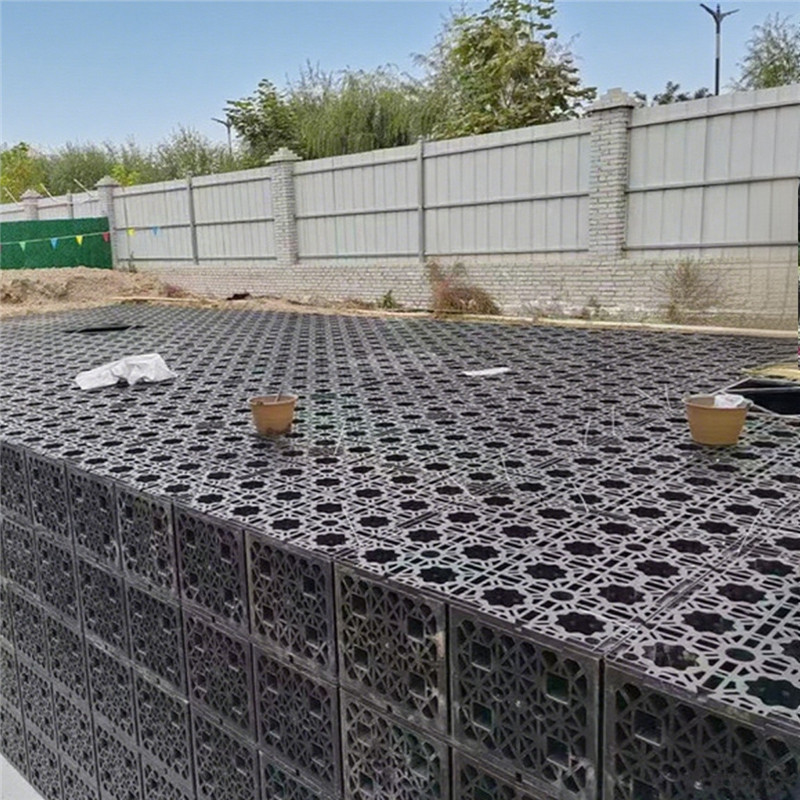

◆Assemble the rainwater collection modules into a tank

◆Cover with geotextile and backfill with soil

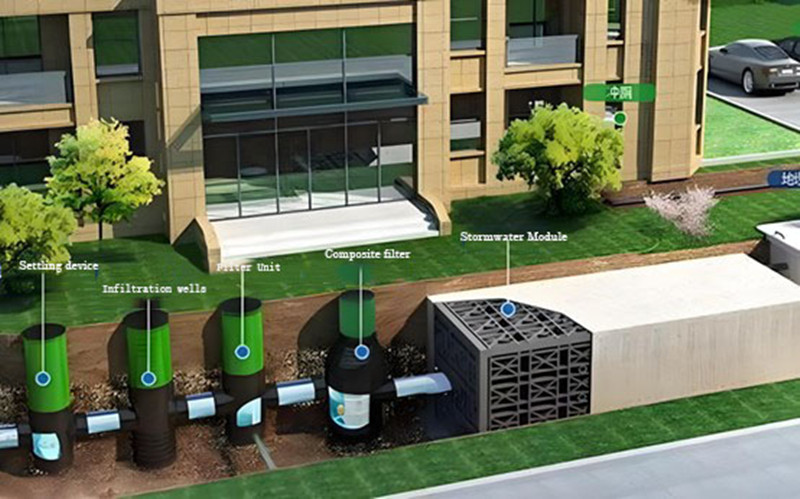

◆Connect the inlet and outlet pipes and purification devices

Important note:

The backfilling should be layered and compacted to ensure the stability of the underground water storage module; Regularly check the sealing of the module to prevent leakage.

Raiwater module harvesting system other case:

A residential community installed a 200m³ underground water storage tank using the residential rainwater module, achieving over 12,000 tons of water savings per year; A commercial parking lot used the parking lot rainwater module, reducing flooding 3 times per year during the rainy season, and reducing sanitation water costs by 40% by reusing the rainwater.

About our company:

Shandong Luke Composite Co., Ltd is professional company on production and sales geosynthetics for years, We mainly produce geomembrane, geotextile, drain board, geogrid,geocell,3D geomat, drain mat, rainwater collection module ,drainage net, grass paver etc.Our geosynthetic materials and rainwater harvesting modules have been exported to more than 30 nations and regions, such as Southeast Asia, Australia, North America, Europe, Middle East and Africa.

If you want to know more about the modular rainwater storage modules, you can continue to ask me questions.

Rainwater collection modules  display:

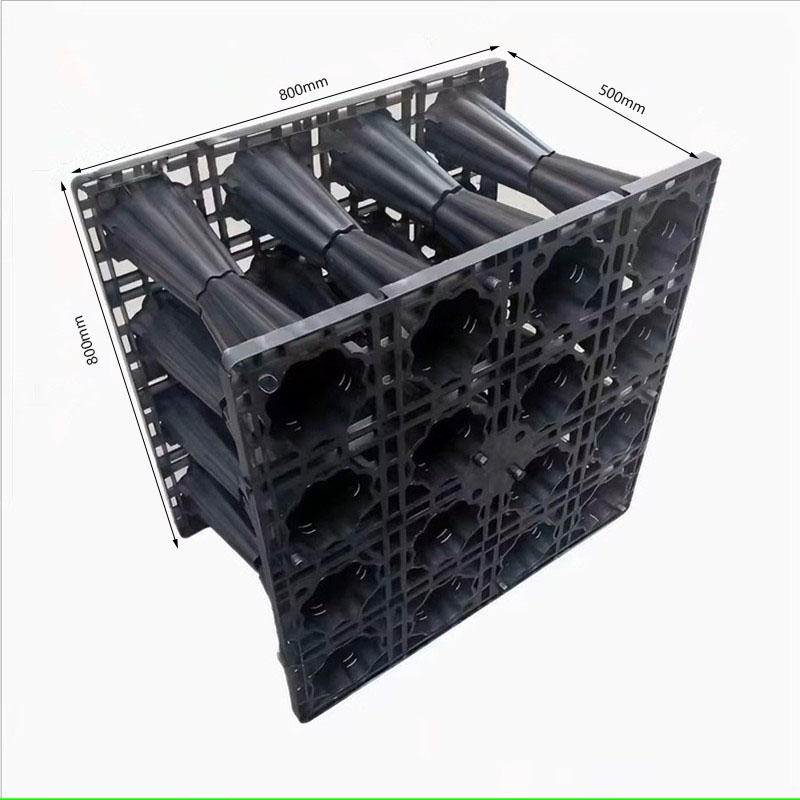

The company offers various models of water storage modules for your selection

Application:

Sponge city construction

Municipal road stormwater management

Underground parking lot rainwater storage

Residential & Park landscape water recycling

Urban square & Airport stormwater treatment

Construction site water conservation project
