Modular Rainwater Harvesting System

Modular Rainwater Harvesting System

Rainwater harvesting module is a grid water storage structure made of polypropylene(PP) or high density polyethylene(HDPE), which is widely used in rainwater collection systems. 《According to the Technical Code for Rainwater Utilization Engineering of Buildings and Communities》 (GB50400), the modular water storage system must meet the requirements of pressure resistance, seepage prevention and water quality protection. Modular rainwater harvesting system is widely used in the construction of sponge cities and projects requiring drainage.

Comparison between modular rainwater collection and traditional cement ponds:

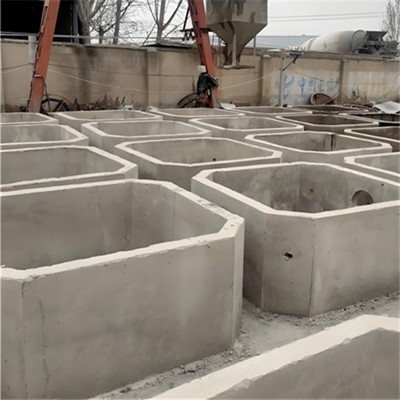

The installation cost of concrete rainwater collection systems is relatively high because of the need for on-site pouring and a long construction period. At the same time, the concrete pool may have cracks or leakage problems during long-term use, which requires regular maintenance and repair.

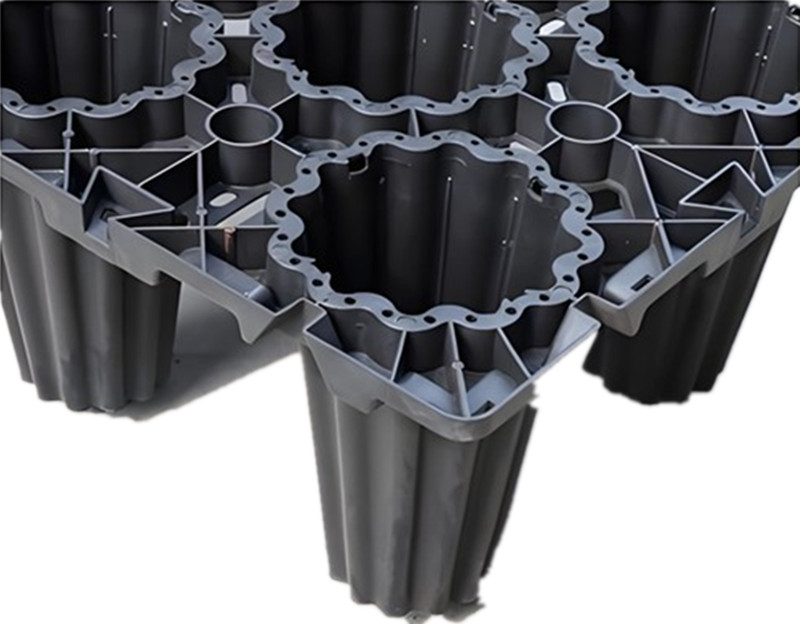

The PP module is a prefabricated plastic module that can be quickly and easily assembled to form a rainwater collection tank. The installation cost of such systems is low, the construction period is short, and no specialized skills are required. In addition, the PP module rainwater collection system has better environmental performance, because the plastic module can be recycled, reducing the burden on the environment.

In addition,the closed modular rainwater collection can be disinfected by ultraviolet light to eliminate water pollution.

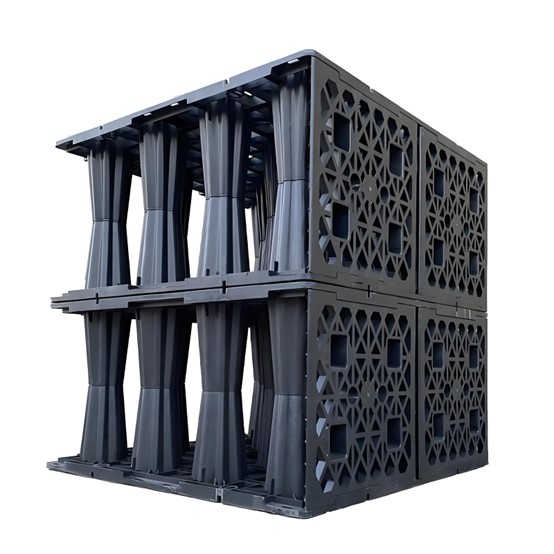

Rainwater harvesting module technical parameters：

Product Name: PP rainwater harvesting modules or rainwater harvesting tanks

Material: Polypropylene

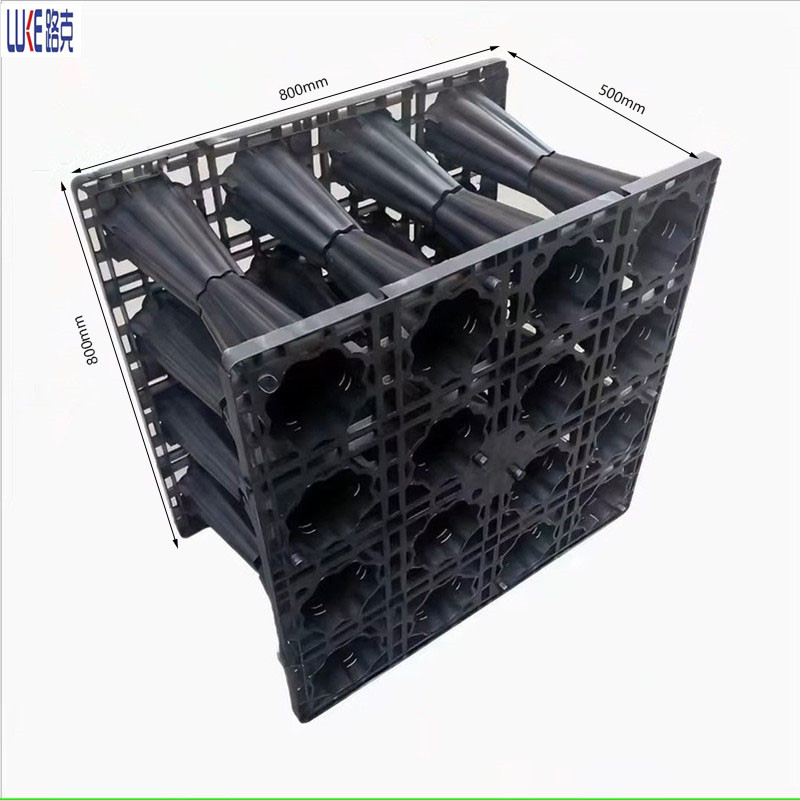

Size:800mm*800mm*250mm,1000mm*1000mm*250mm or according your needs

Color: Black or green

Work Temperature:-30℃~+120℃

Pressure Bearing:≤45T

Void Ratio:90%-95%

Compressive Strength: High

Function:

The use of rainwater harvesting systems can alleviate urban waterlogging and replenish groundwater

Using a collection module to collect rainwater can save water and energy

Industrial water circulation, anti-pollution, anti-seepage

Ensure subgrade stability and emergency drainage

Drought-resistant irrigation, ecological water replenishment

Peak regulation flow, disaster prevention buffer

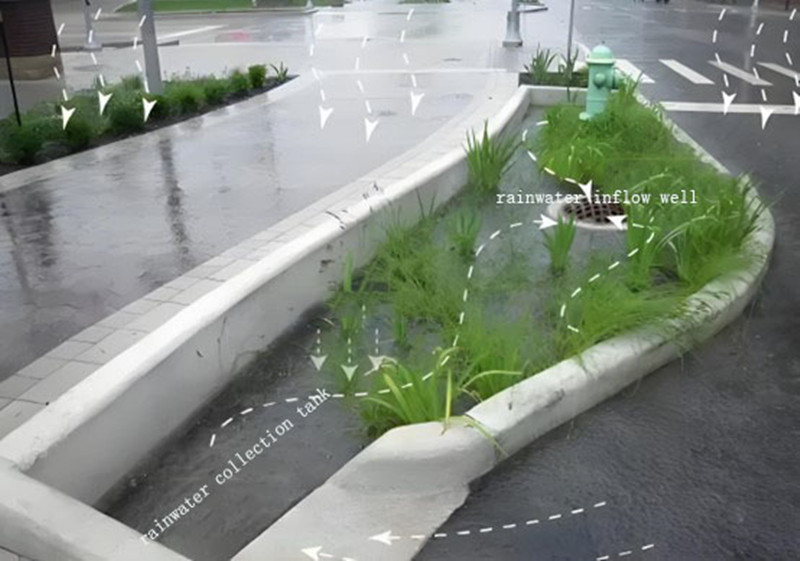

The working process of the rainwater module：

The working principle of the rainwater module begins with the collection of rainwater. When rainwater falls to the ground, it is directed to the rainwater module through a pre-designed rainwater collection system, such as storm pipes, storm drains, etc. In this process, the rainwater is initially filtered to remove large particles of impurities in order to protect the internal structure of the rainwater module from damage.

Application:

Sponge city construction

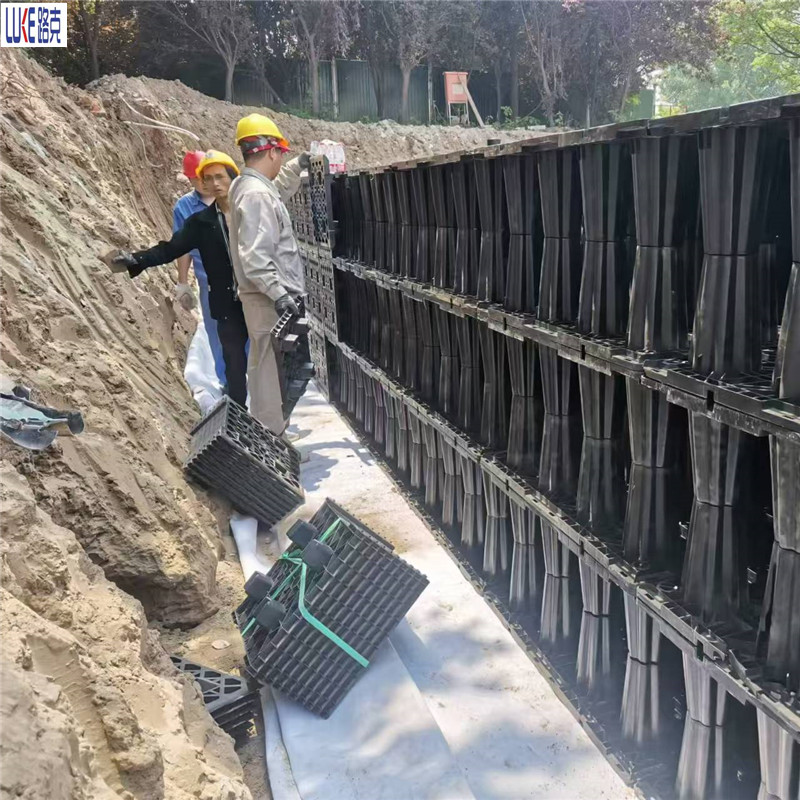

Road rainwater collection, parks/plazas water storage,roof rainwater collection.

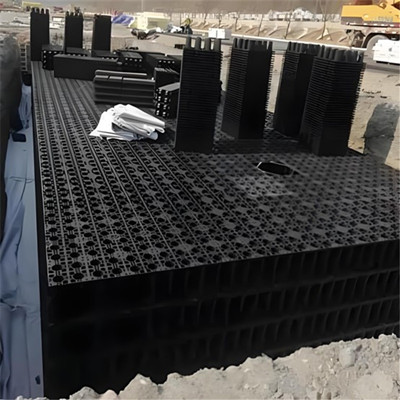

Modules are buried under sidewalks/green belts to collect road runoff.

The top of the module is covered with soil to plant waterlogging tolerant plants, forming an ecological landscape.

Highway drainage: Water storage modules are embedded in service areas or slopes to collect rainwater for green irrigation.

Waterlogging prevention of airport runways.

Water saving and consumption reduction: roof rainwater recycling, underground garage drainage.

About our company:

Shandong Luke Composite Co.,Ltd. is professional company on production and sales geosynthetics for years,We mainly produce geomembrane, geotextile, drain board, geogrid,geocell,3D geomat, drain mat, rainwater collection module ,drainage net, grass paver etc.

Our geosynthetic materials and rainwater harvesting modules have been exported to more than 30 nations and regions, such as Southeast Asia, Australia, North America, Europe, Middle East and Africa.

Our commitment:

Professional equipment, high quality rainwater collection water series products, first-class service is your best choice, welcome to our company!

If you want to know more about the sponge city rainwater collection system,you can continue to ask me questions.
