Customizable Rainwater Harvesting Module

Freely assembled with customizable dimensions and volume to suit complex underground pipeline construction.

Made of PP plastic, it is highly compressive and corrosion-resistant, ensuring a long service life when buried and allowing traffic on the surface.

Sponge city rainwater module system on-site assembly requires no concrete pouring, enabling fast construction and significantly shortening municipal project timelines.

Combines rainwater storage and recycling, effectively preventing urban flooding and meeting sponge city acceptance standards.

Simple sludge cleaning and low maintenance costs result in a total cost far lower than that of concrete tanks.

Contact Now

Product Details

Customizable Rainwater Harvesting Module

This customizable PP interlocking Road Rainwater Collection Module is designed for municipal works, widely applied to Sponge City Rainwater Module projects and Park Rainwater Storage System.It made of high-density PP, the module is pressure-resistant, anti-aging and corrosion-proof. The interlocking structure allows flexible adjustment of the storage capacity to fit terrain, pipelines and actual water demand.

When buried underground, it collects rainwater from roads and squares for stormwater detention and runoff control to prevent urban flooding. The stored rainwater can be reused for road cleaning and landscape irrigation, complying with sponge city standards.Featuring high load capacity, the module can withstand vehicle traffic. We offer size customization and integrated solutions for engineering clients.

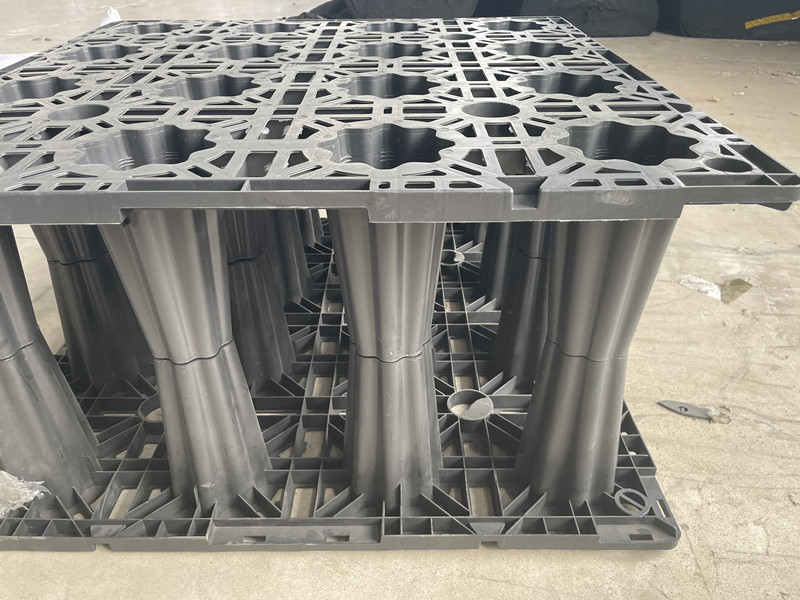

Customizable Rainwater Harvesting Module.jpg

Sponge city rainwater module:

◆95% of the hollowed-out space achieves an efficient water storage rate.

◆Extremely strong pressure-bearing capacity

◆Efficient installation, no excavation required, shortens project cycle

◆Environmentally friendly and energy-saving, saves costs

◆High safety performance, complies with industrial safety standards

1000*1000 Rainwter Harvesting Module.jpg

The rainwater harvesting module function:

The underground rainwater module is a part of the rainwater collection system, which can effectively collect and store rainwater. The rainwater resources collected through the rainwater module can be used for greening irrigation, farmland irrigation, livestock watering, road or site washing, etc., with a wide range of applications.

Rainwater Module for Sponge City.jpg Park Rainwater Storage System..jpg

Sponge City Rainwater Module Park Rainwater Storage System

Installation instructions:

The rainwater module Installation is simple:

◆Level the site and lay anti-seepage membranes;

◆Assemble the rainwater collection modules into a tank;

◆Cover with geotextile and backfill with soil;

◆Connect the inlet and outlet pipes and purification devices.

Important note:

The backfilling should be layered and compacted to ensure the stability of the underground water storage module; Regularly check the sealing of the module to prevent leakage.

Road Rainwater Collection Module.jpg

Raiwater module harvesting system other case:

A residential community installed a 200m³ underground water storage tank using the residential rainwater module, achieving over 12,000 tons of water savings per year; A commercial parking lot used the parking lot rainwater module, reducing flooding 3 times per year during the rainy season, and reducing sanitation water costs by 40% by reusing the rainwater.

Park Rainwater Storage System.jpg Road Rainwater Collection Module.jpg

Application:

Rainwater collection modules are widely used mainly including the following aspects:

◆Irrigated plants: The collected rainwater can be used to water plants, grasslands, and also for agricultural irrigation.

◆ Flush the toilet: Reduce reliance on traditional water systems.

◆ Clean the road: Keep the environment clean.

◆ Cleaning: Used for all kinds of cleaning work.

◆ Circulating cooling water: Used in industry and construction.

◆ Fire water: Water supply in case of emergency.

Rainwater Harvesting For Residence Community.jpg Rainwater Collection For Gardens.jpg Underground Water Storage For Parking Lots.jpg Collecting Rainwater for Irrigation.jpg

About our company:

Shandong Luke Composite Co., Ltd is professional company on production and sales geosynthetics for years, We mainly produce geomembrane, geotextile, drain board, geogrid,geocell,3D geomat, drain mat, rainwater collection module ,drainage net, grass paver etc.Our geosynthetic materials and rainwater harvesting modules have been exported to more than 30 nations and regions, such as Southeast Asia, Australia, North America, Europe, Middle East and Africa.

If you want to know more about the modular rainwater storage modules, you can continue to ask me questions.
