95% Void Ratio PP Rainwater Harvesting Module

95% Void Ratio PP Rainwater Harvesting Module

Our PP rainwater storage module, also known as the 95% void ratio rainwater module and anti-corrosion rainwater soakaway module, serves as the core part of the sponge city stormwater management system. It is manufactured from high-purity food-grade polypropylene. Boasting a 95% void ratio, outstanding compression strength, anti-aging and anti-corrosion features, this modular product allows quick on-site assembly. Suitable for municipal roads, parking lots, landscape gardens, residential quarters and more, it can efficiently collect, store, infiltrate and reuse rainwater, ease urban waterlogging and support ecological development of sponge cities.

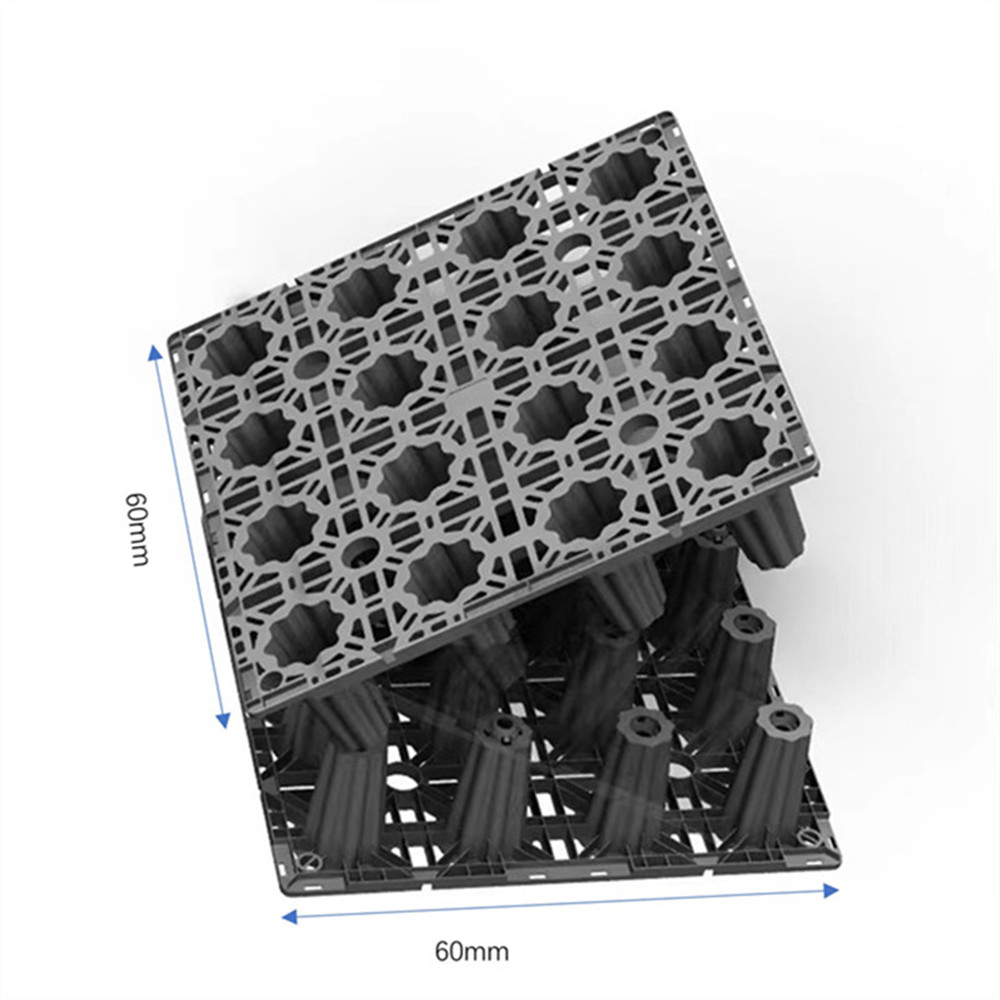

95% void ratio PP rainwater harvesting module:

◆The module adopts optimized grid structure design, with a void ratio of up to 95%

◆Extremely strong pressure-bearing capacity

◆Efficient installation, no excavation required, shortens project cycle

◆Environmentally friendly and energy-saving, saves costs

◆High safety performance, complies with industrial safety standards

The rainwater harvesting module function:

The underground rainwater module is a part of the rainwater collection system, which can effectively collect and store rainwater. The rainwater resources collected through the rainwater module can be used for greening irrigation, farmland irrigation, livestock watering, road or site washing, etc., with a wide range of applications.

                     Sponge City Rainwater Module                                   Park Rainwater Storage System

Installation instructions:

The rainwater module Installation is simple:

◆Level the site and lay anti-seepage membranes;

◆Assemble the rainwater collection modules into a tank;

◆Cover with geotextile and backfill with soil;

◆Connect the inlet and outlet pipes and purification devices.

Important note:

The backfilling should be layered and compacted to ensure the stability of the underground water storage module; Regularly check the sealing of the module to prevent leakage.

Raiwater module harvesting system other case:

A residential community installed a 200m³ underground water storage tank using the residential rainwater module, achieving over 12,000 tons of water savings per year; A commercial parking lot used the parking lot rainwater module, reducing flooding 3 times per year during the rainy season, and reducing sanitation water costs by 40% by reusing the rainwater.

Application:

Rainwater collection modules are widely used mainly including the following aspects:

◆Irrigated plants: The collected rainwater can be used to water plants, grasslands, and also for agricultural irrigation.

◆ Flush the toilet: Reduce reliance on traditional water systems.

◆ Clean the road: Keep the environment clean.

◆ Cleaning: Used for all kinds of cleaning work.

◆ Circulating cooling water: Used in industry and construction.

◆ Fire water: Water supply in case of emergency.

About our company:

Shandong Luke Composite Co., Ltd is professional company on production and sales geosynthetics for years, We mainly produce geomembrane, geotextile, drain board, geogrid,geocell,3D geomat, drain mat, rainwater collection module ,drainage net, grass paver etc.Our geosynthetic materials and rainwater harvesting modules have been exported to more than 30 nations and regions, such as Southeast Asia, Australia, North America, Europe, Middle East and Africa.

If you want to know more about the modular rainwater storage modules, you can continue to ask me questions.

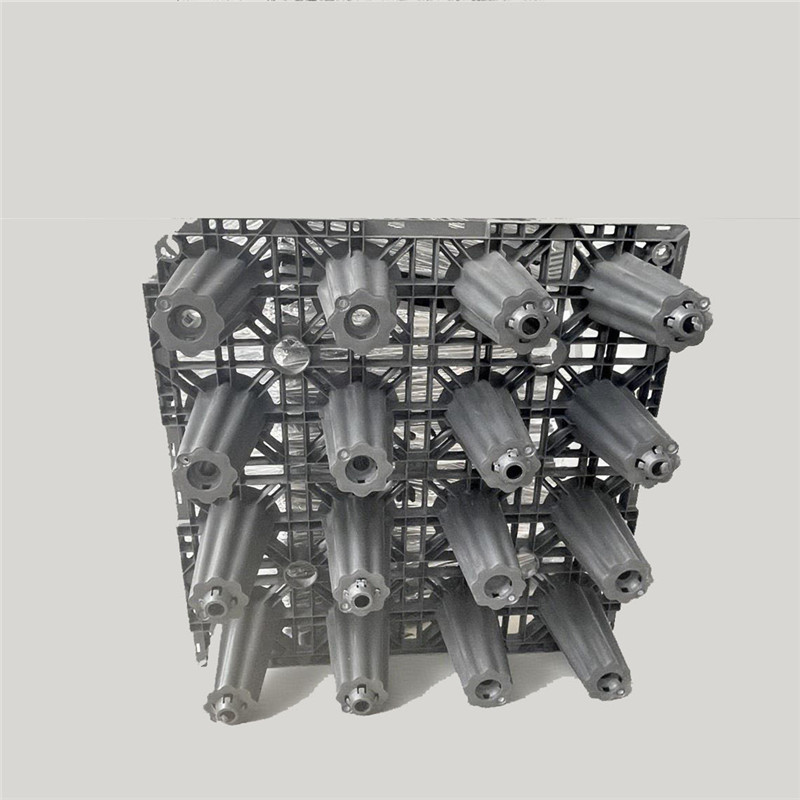

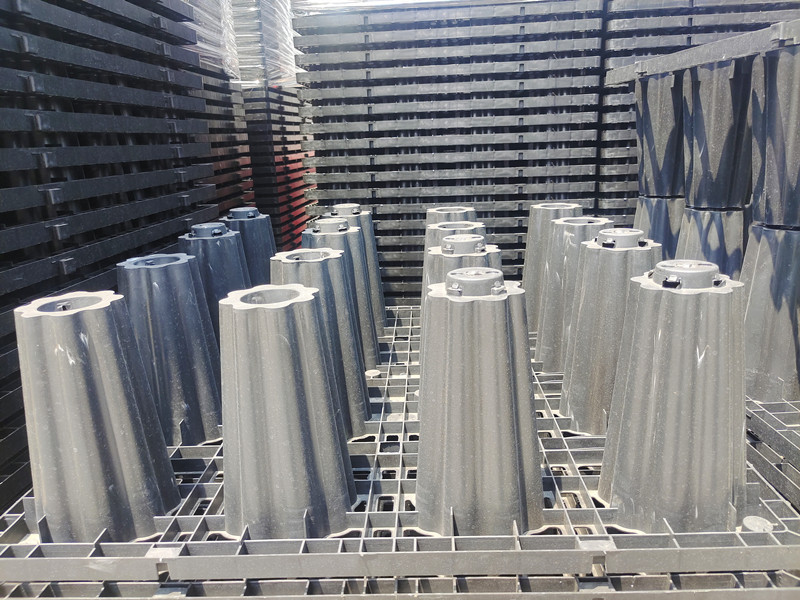

Rainwater collection modules  display:

The company offers various models of water storage modules for your selection
