Luke HDPE Geomembrane Liner for Pond

Luke geomembrane liner pond has good flexibility

Antioxidant,Anti-aging and UV Resistance

Excellent environmental stress cracking resistance property

High tensile strength and elongation

Custom size HDPE geomembrane pond liner according your need

Factory supply and provide samples

Contact Now

Product Details

Luke HDPE Geomembrane Liner for Pond

Geomembrane for pond liner, also known as high-density polyethylene membrane, HDPE geotextile membrane or anti-seepage membrane. This material is made from high-density polyethylene resin. The product is non-toxic, resistant to acid and alkali corrosion, has high anti-seepage performance and anti-ultraviolet aging properties, and can last for 50-70 years. It is widely used in environmental protection, water conservancy and municipal engineering such as landfill sites, sewage treatment ponds and anti-seepage of artificial lakes.

Luke geomembrane liner for pond feature:

◆Good physical and mechanic performance

◆High tearing resistance, strong deformation adaptability

◆Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance

◆Good adaptability to high and low temperature, non-toxicity, long service life

◆Good waterproof, drainage, anti-seepage and damp proof effects

◆Complete width and thickness specifications, low cost and easy installation.

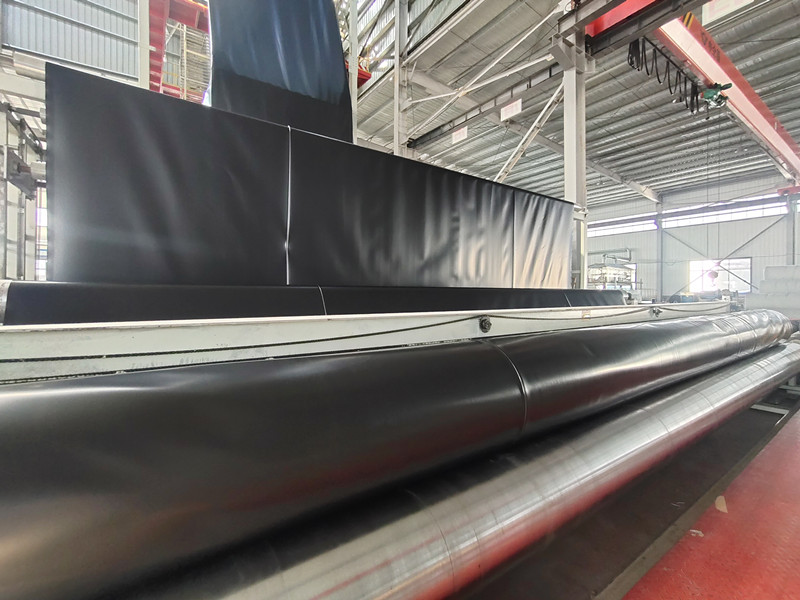

HDPE Pond Liner.jpg

Geomembrane liner for pond parameter:

	Test Properties	unit	Test Method	Test Frequency	LK MS75	LK MS10	LK MS10	LK MS10	LK MS10
Mechanical Properties	Thickness	mm	D5199	Per roll	0.75	1.00	1.50	2.00	3.00
	Density	g/cc	D1505/D792	90,000kg	0.94
	Tensile properties		D6693 Type IV	9,000kg
	Yield strength	KN/m			11	15	22	29	44
	Break strength	KN/m			20	27	40	53	80
	Yield elongation	%			12	12	12	12	12
	Break elongation	%			700	700	700	700	700
	Tear Resistance	N	D1004	20,000kg	93	125	187	249	374
	Puncture resistance	N	D4883	20,000kg	240	320	480	640	960
	Stress crack Resistance	Hr.	D5397	Per GRI GM-10	300hr
	Carbon Black Content	%	D4218	9,000kg	2.0-3.0%
Reference Properties	Oxidative Induction Time	Min
	Standard OIT		D3895	90,000kg	100min
	High Pressure OIT		D5885	90,000kg	400min
	Oven Aging at 85℃（retained after 90 days）	%	D5712	Per each formulation	55%
	(a)standard OIT		D3895
	(b)High Pressure OIT		D5885
	UV Resistance High Pressure OIT Retained after1600h	%	D5885	Per each formulation	50%
Roll Size	Roll width	m			7	7	7	7	7
	Roll Length	m			280	210	140	105	70
	Size Stability	%	2%

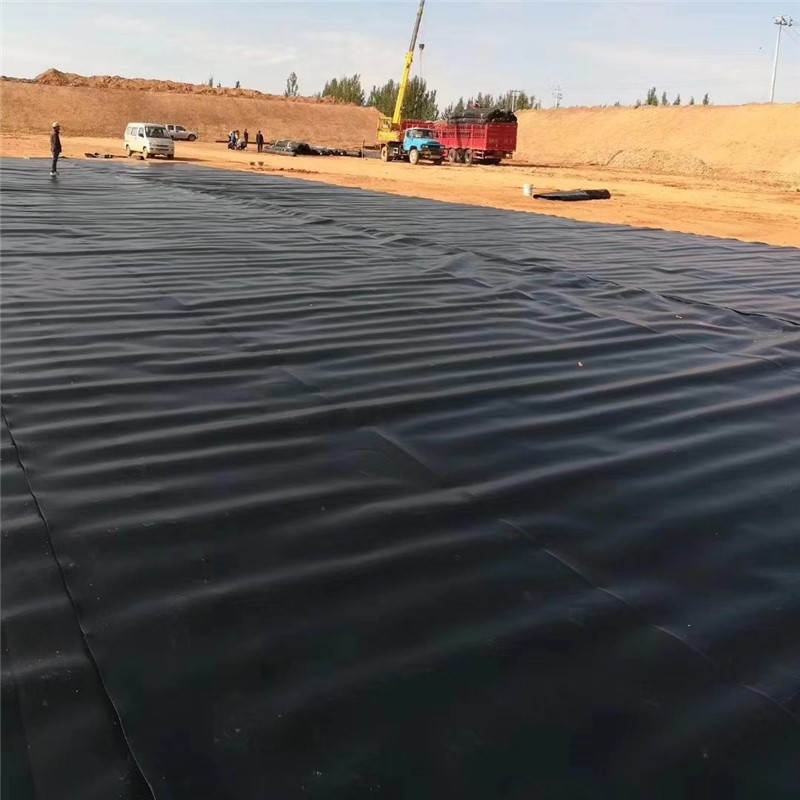

Application

◆Environmental protection, sanitation

(such as solid waste landfills, sewage treatment plants, power plants Chi-conditioning,industrial, hospital solid waste, etc)

◆Water Conservancy

(such as rivers, lakes and reservoirs of the anti-dam, plugging, reinforcement of the canal seepage, the vertical wall of the heart, slope protection, etc.)

◆Municipal Engineering

(subway, on the ground floor of the building, planted roof, the roof garden of anti-seepage, sewage pipes lining, etc.)

◆Landscape

(man-made lake, river, reservoir, golf courses reservoirs of the substrate, slope protection, green lawn of the waterproof moisture, etc.)

◆Petrochemical

(chemical plants, oil refineries, gas storage tanks of the anti-chemical reaction tanks, sedimentation tanks of the lining, etc.)

◆Mining

(washing and pool heap leaching, the ash-field, dissolved, precipitation, the yard, the tailings seepage substrates etc.)

High Quality HDPE Geomembrane

About us:

Shandong Luke Composite Co.,Ltd is professional company on production and sales geosynthetics for years.We mainly produce turf reinforcement mat,geomembrane, geotextile, dimple drain board, geogrid,geo cell,3D geomat, drain mat, drainage net, grass paver etc.Our geosynthetic materials have been exported to more than 30 nations and regions, such as Southeast Asia, Australia, North America, Europe, Middle East and Africa. As HDPE geomembrane manufacturer our commitment: Professional equipment, high quality geomembrane liner series products, first-class service is your best choice, welcome to our company!

If you want to know more about the HDPE geomembranes ,you can continue to ask me questions.

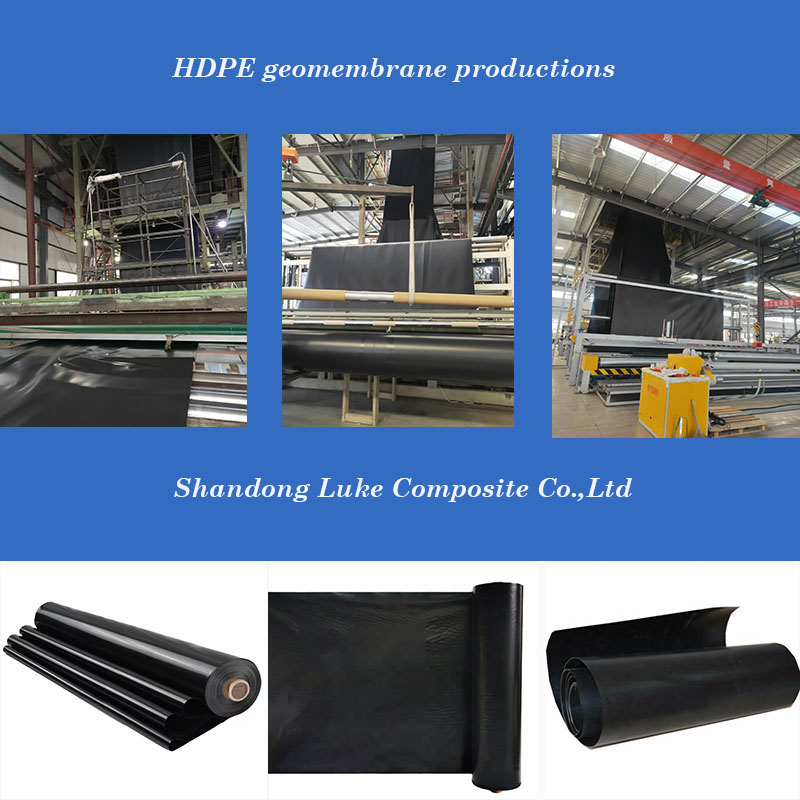

HDPE Geomembrane Manufacturer.jpg
