HDPE 3D Composite Drainage Net for Landfill

The core of the composite drainage net is a three-dimensional net core made of HDPE materials.

The material structure is stable, with strong anti-aging performance.

It does not deform under low or high temperatures.

High drainage efficiency, capable of quickly draining groundwater.

Has both vertical and horizontal drainage capabilities.

Avoids blockage of drainage channels

Has excellent compressive strength, and simplifies construction.

Contact Now

Product Details

HDPE 3D Composite Drainage Net for Landfill

A landfill composite drainage net (also known as landfill composite geotechnical drainage net) is a high-performance geosynthetic material specifically designed for the construction of landfill sites. It combines a three-dimensional (3D) geotextile core with a non-woven geotextile layer to form a multi-functional system, featuring functions such as drainage, filtration, separation, and reinforcement. This is beneficial for environmental protection and the stability of the landfill site.

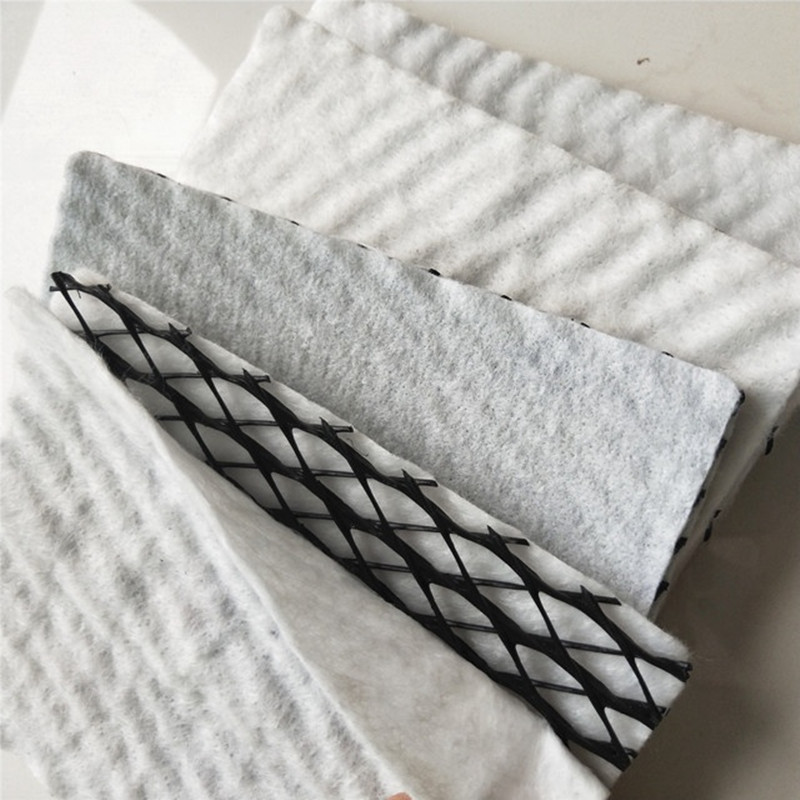

HDPE 3D Composite Drainage Net for Landfill.jpg

3D composite drainage net technical parameter:

Test Properties	Unit	LKDN750	LKDN1000	LKDN1300	LKDN1600
Unit Weight	g/m²	750	1000	1300	1600
Thickness	mm	5	6	7	7.6
Hydraulic Conductivity	m/s	K*10^-4	K*10^-4	K*10^-4	K*10^-4
Elongation	%	<50	<50	<50	<50
Tensile Strength(Geonet)	Kn/m	8	10	12	14
Geotextile weight	g/m²	200,300,400

Composite Geonet for Drainage.jpg

3D geotextile composite drainage net feature:

◆Strong drainage performance

◆Composite drainage has high tensile strength

◆Maintains long-term stable drainage

◆Corrosion-resistant, resistant to acids and alkalis, and has a long service life

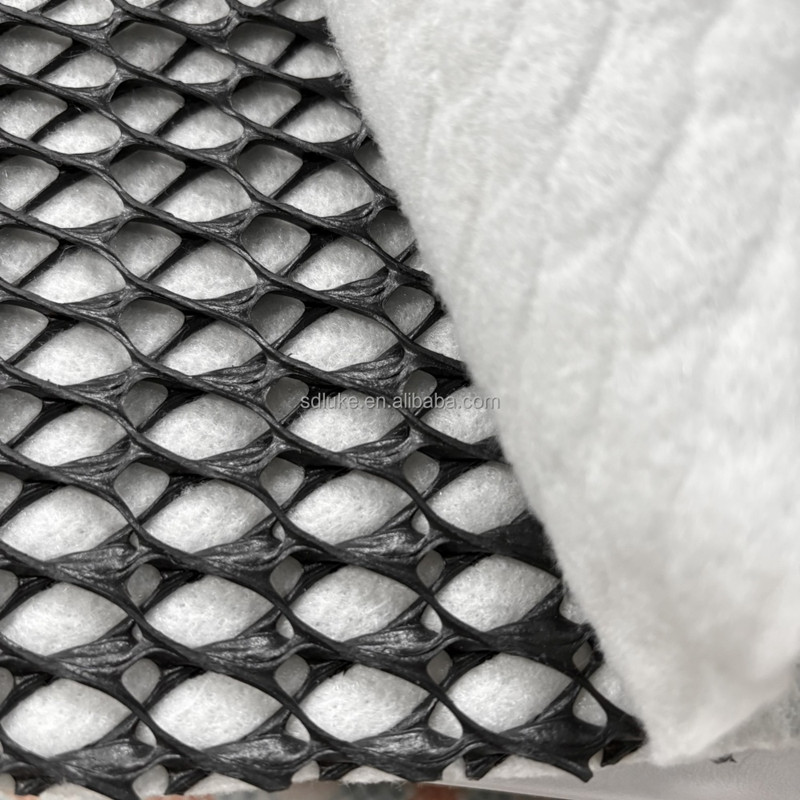

Landfill Composite Geotechnical Drainage Net.jpg

Composite geonet for drainage packaging and transportation：

The composite drainage net are packaged in double-layer waterproof woven bags, with each roll independently sealed and equipped with an inner moisture-proof film to ensure it is not affected by rain during transportation. Customized pallet packaging service is provided, with each pallet capable of stacking 5 to 8 rolls, saving transportation space and reducing logistics costs.

Composite Geonet for Drainage.jpg

After-sales service:

Our company provides a one-stop service, and our technical staff provides 24/7 online support to solve any technical problems related to hdpe composite drainage nets in a timely manner. we can custom composite geonet according your need.Thank you for your love of our products.

Our commitment:

Professional equipment, high quality composite drainage net series products, first-class service is your best choice, welcome to our company!

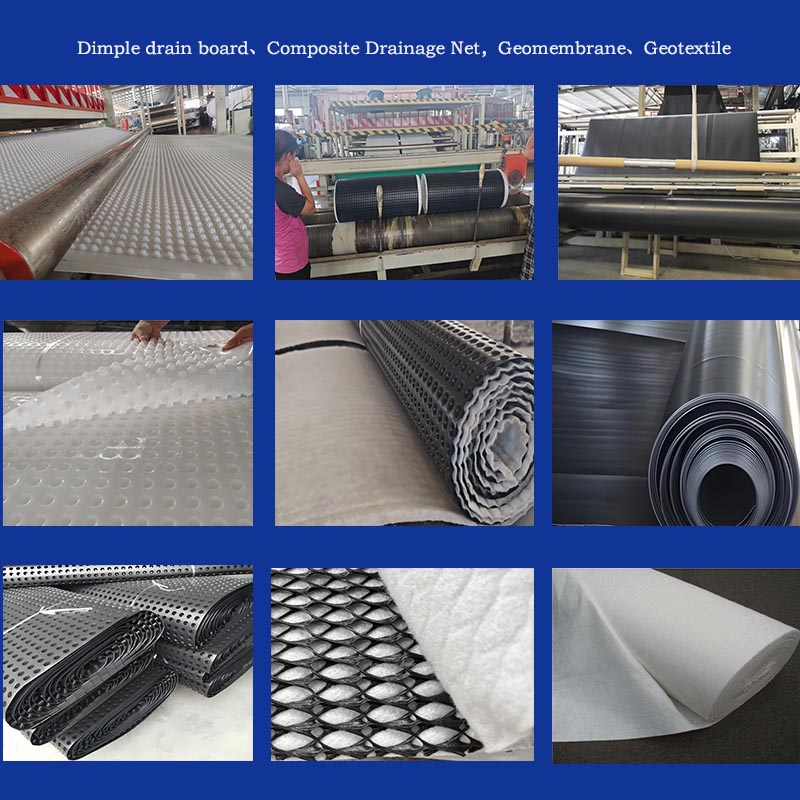

Composite Drainage Net Factory Supply.jpg
