Plastic HDPE Geocell
Economy: The use of geocell reduces the amount of filling and reduces the engineering cost.
Environmental protection: hdpe geocell can be recycled to reduce the impact on the environment.
Durability: UV resistance, corrosion resistance, long service life.
Adaptability: Suitable for a variety of complex terrain and climate conditions.
Flexible to fold during the transport and installation on construction site.
Product Details

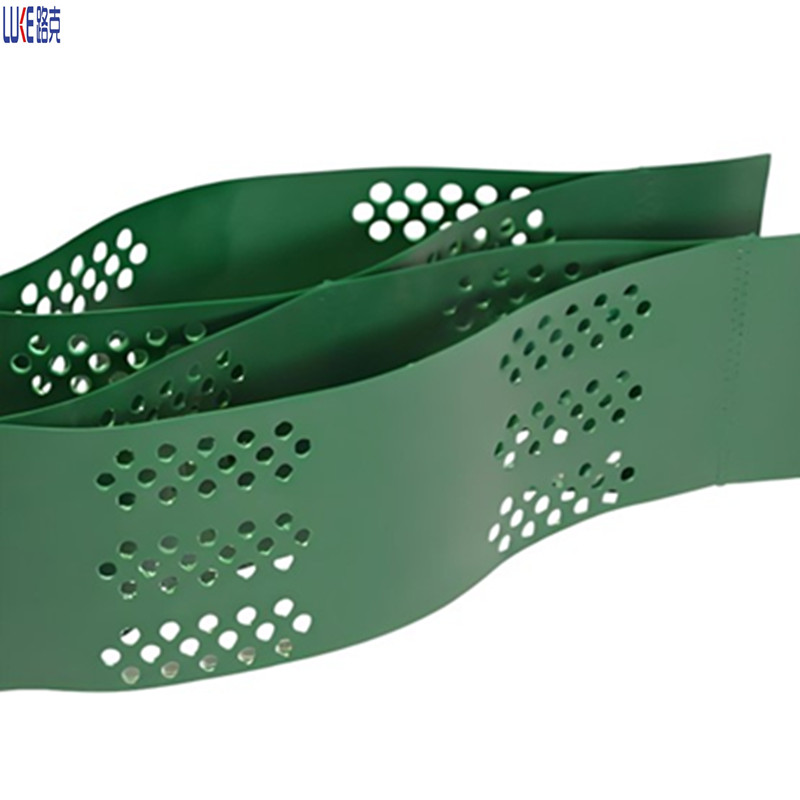

Plastic HDPE Geocell
Geocell is a three-dimensional honeycomb structure that can significantly improve the performance of common fill materials in load bearing and erosion control applications over a wide range of areas. Its structure and characteristics:

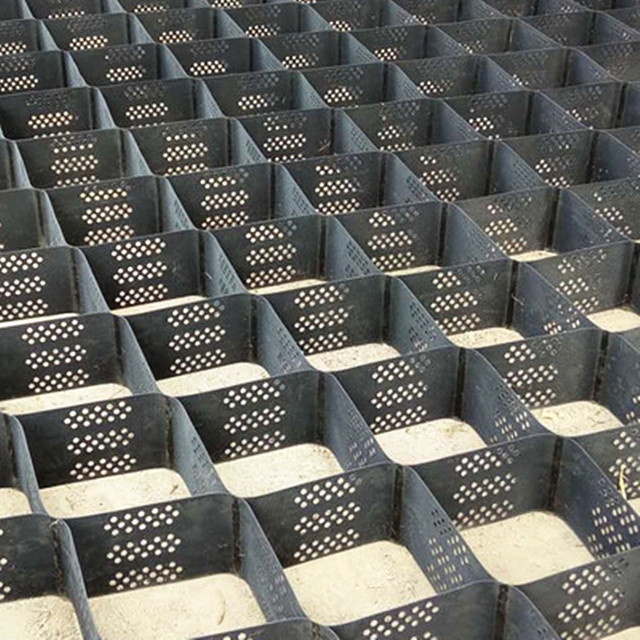

Three-dimensional structure: After the expansion of the geocell, a honeycomb three-dimensional geocell is formed, which can effectively constrain the filling material (such as sand, soil, etc.) and enhance the overall stability.
High strength: Using high-density polyethylene (HDPE) and other materials, with high tensile strength and durability.
Flexibility: The plastic HDPE geocell can adapt to the deformation of the foundation, and has good impact resistance and fatigue resistance.
Water permeability: The geoweb structure allows water to pass through, reducing the damage of water pressure to the structure.
Light weight and easy construction: light weight, convenient transportation and installation, high construction efficiency.
Parameter
| Product Type | Height (mm) | Welding Distance (mm) | Thickness (mm) | Tensile Strength of Welding Points (N/cm) | Tensile Strength of Commection of Cells (N/cm) | Tensile Strength of Yield of Each Sheet (Mpa) |
| Smooth and Not Perforated | 50≤H≤250 | 330≤A≤ 1000 | 1.0-1.4 | ≥100 | ≥120 | ≥20 |
| Smooth and Perforated | 550≤H≤250 | 330≤A≤ 1000 | 1.0-1.4 | ≥100 | ≥120 | ≥20 |

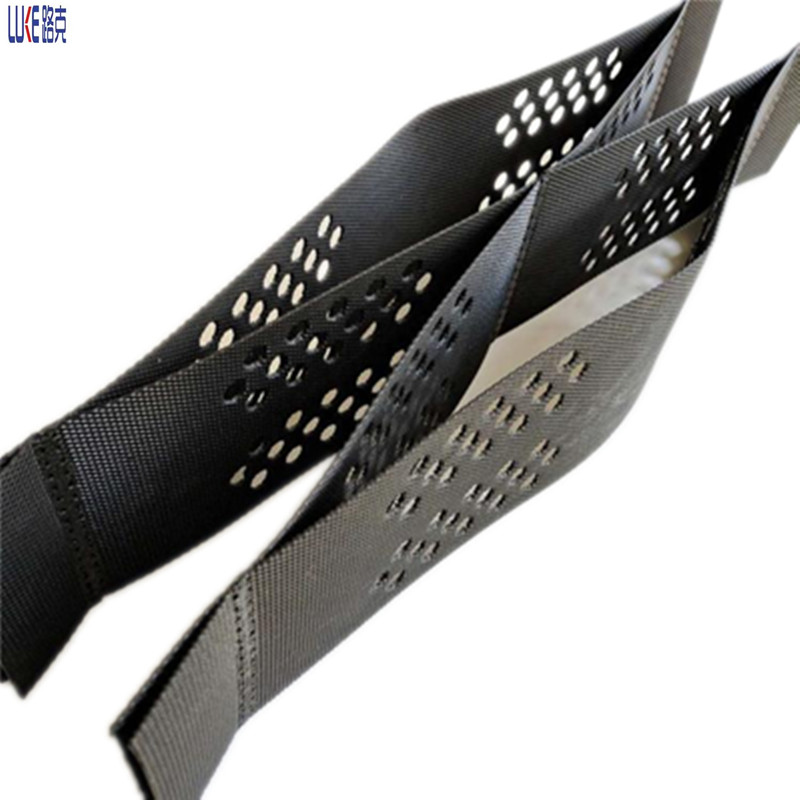

| Textured and Not Perforated | 50≤H≤250 | 330≤A≤ 1000 | 1.0-1.4 | ≥100 | ≥120 | ≥20 |
| Textured and Perforated | 50≤H≤250 | 330≤A≤ 1000 | 1.0-1.4 | ≥100 | ≥120 | ≥20 |
| Remarks: This is a basic technical specification. All the above technical parameters can be reached according to customer's requirement and other special standard can be carried out by agreement or contract. | ||||||
Geoweb erosion control main function:
Reinforcement and stability: used to strengthen weak foundations, slopes, banks, etc., to improve bearing capacity and stability.
Erosion prevention:Hdpe geocell used for soil and water conservation to prevent soil loss and slope erosion.
Distributed load: The three-dimensional structure distributes the concentrated load over a larger area to reduce the settlement of the foundation.
Ecological restoration: It can be used for vegetation restoration and ecological slope protection to promote plant growth.

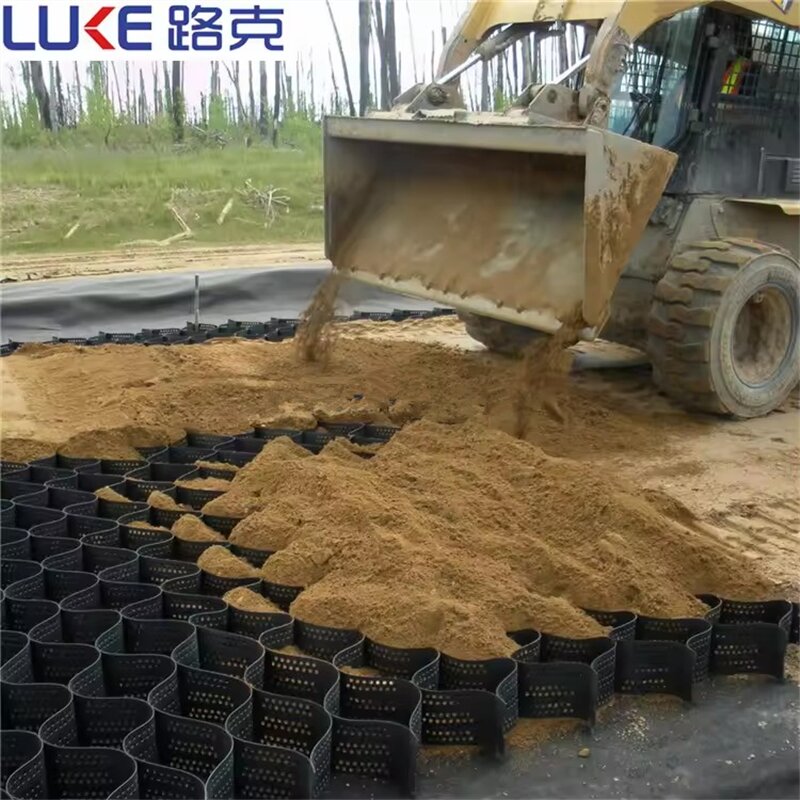

Geocell Solutions:
Preparation for laying: Clean the construction site to ensure that the foundation is smooth.
Expansion geocell: The geocell is unrolled and fixed to the foundation.
Filling material: Fill the geocell mesh with sand, soil or other materials and compact layer by layer
Surface treatment: vegetation planting or surface covering as needed.
Application:
Road engineering: Used for soft foundation treatment, subgrade reinforcement, temporary road laying, etc.
Slope protection: Used for highway, railway, river bank slope stability and protection.
Hydraulic engineering: used for river slope protection, dam reinforcement and so on.
Geocell can used for the rapid laying of temporary roads, airport runways, etc.
Ecological engineering: Used for mine restoration, vegetation restoration and other ecological management projects.
