Black Geocell
Black hdpe geocell is made of high-density polyethylene (HDPE) sheets.
The material of geocell is light and wear-resistant and has a long service life.
Flexible to fold during the transport and installation on construction site.
Higher lateral restrict and prevent slippery.
Enhance the bearing capacity of roadbed and scattered loads.
Product Details

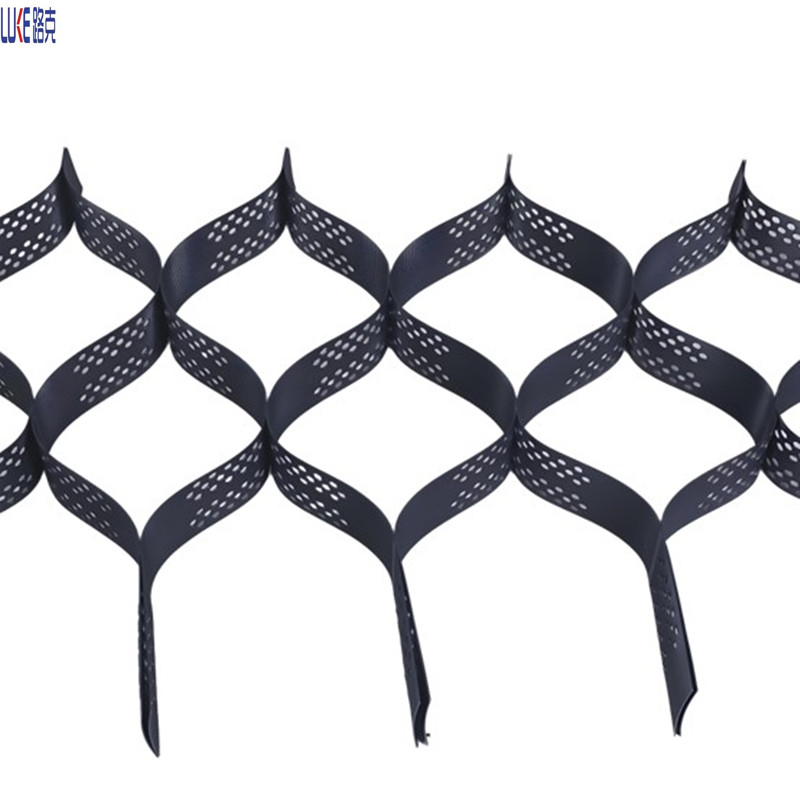

Black Geocell
Hdpe geocell(black geocell or green geocell) is a cellular geoweb , this honeycomb geocell mesh is a kind of road construction artifact. It belongs to a new kind of synthetic material. The traditional way of paving is to mix cement and gravel materials and spread them on the ground and use a road roller to smooth them. They're beautiful but they don't last as long as expected. When heavier vehicles pass by, the road will be crushed. The discovery of cellular geoweb geocell is a new beginning, with cellular geocell structures that are resistant to enormous pressures and can be dispersed to carry forces from all directions. When it is used to road construction, the service life of roads can be extended. Fully ensure the stability of the road. Improve the compressive resistance of the pavement. So it is widely used in civil engineering.
HDPE geo geocell parameter:
| Product Type | Height (mm) | Welding Distance (mm) | Thickness (mm) | Tensile Strength of Welding Points (N/cm) | Tensile Strength of Commection of Cells (N/cm) | Tensile Strength of Yield of Each Sheet (Mpa) |
| Smooth and Not Perforated | 50≤H≤250 | 330≤A≤ 1000 | 1.0-1.4 | ≥100 | ≥120 | ≥20 |
| Smooth and Perforated | 550≤H≤250 | 330≤A≤ 1000 | 1.0-1.4 | ≥100 | ≥120 | ≥20 |
| Textured and Not Perforated | 50≤H≤250 | 330≤A≤ 1000 | 1.0-1.4 | ≥100 | ≥120 | ≥20 |
| Textured and Perforated | 50≤H≤250 | 330≤A≤ 1000 | 1.0-1.4 | ≥100 | ≥120 | ≥20 |
| Remarks: This is a basic technical specification. All the above technical parameters can be reached according to customer's requirement and other special standard can be carried out by agreement or contract. | ||||||
Feature and function of geocells:
1、Geogell is flexible to fold during the transport and installation on construction site.
The geocell nets will be filled with soils, granular, cements or other on site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.
2、Material is qualitative light, wear resistance, chemical stability, light oxygen aging resistance, resistance to acid and alkali.
3、Suitable for different soil and soil conditions, such as desert.
4、Higher lateral restrict and prevent slippery, prevent deformation, effectively enhance the bearing capacity of subgrade and scattered loads.
5、Change the large room height, welding such as geometrical size can meet different engineering needs retractile, transport of small size.

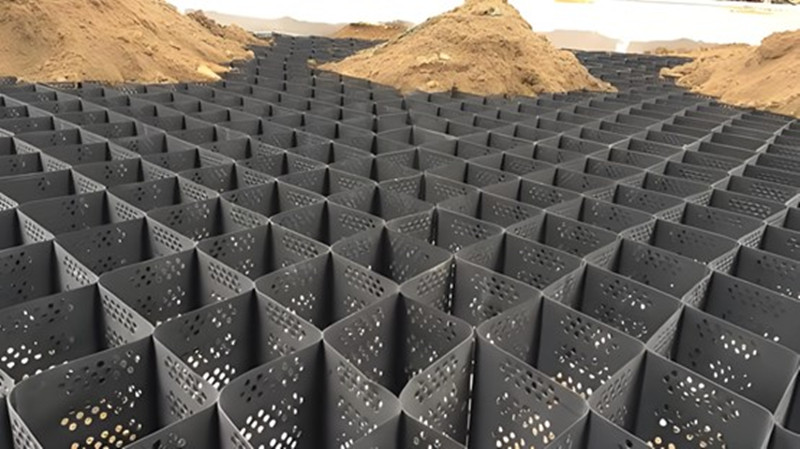

Geocell construction method：
Preparation for laying: Clean the construction site to ensure that the foundation is smooth.
Expansion geocell: The geocell is unrolled and fixed to the foundation.
Filling material: Fill the geocell mesh with sand, soil or other materials and compact layer by layer
Surface treatment: vegetation planting or surface covering as needed.

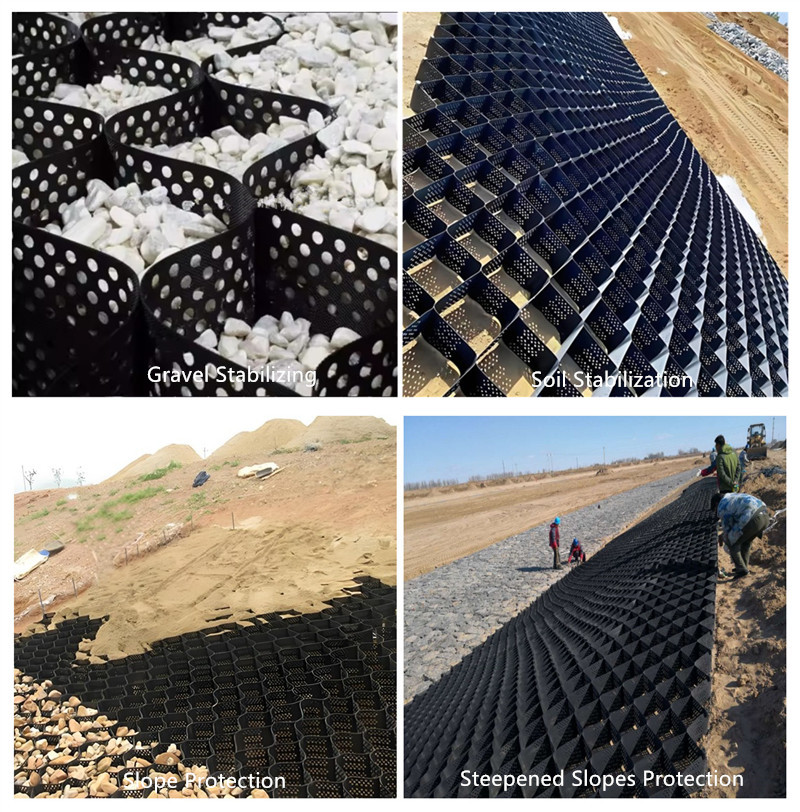

Application
◆Load support: Solve unacceptable road,parking, and yard surface problems.
◆Slope protection: Create a stable environment for long-term sustainability of embankment material.
◆Channel protection:Ensure stability and protection of channels exposed to all types of erosive conditions.
◆Vegetated retaining walls: Includes steepened slopes, retaining walls, gravity walls and so on.
◆Hydraulic engineering: used for river slope protection, dam reinforcement and so on.
