Geogrid of Steel Plastic

High Tensile Strength and Low Elongation

Excellent soil stabilization

Good sub-base reinforcement

Anti-corrosion

Easy to install

Contact Now

Product Details

Geogrid of Steel Plastic

Plastic-steel geogrids are high-performance geosynthetic materials made by combining high-strength steel wires (or other fibers) as the core material with high-molecular materials such as polyethylene (PE) or polypropylene (PP) on the outside through a special process. Through the effect of "reinforcement - interlocking - load dispersion", the integrity and bearing capacity of the soil are significantly improved, and the post-construction settlement is reduced. It is an efficient reinforcement material in geotechnical engineering.

Metallic plastic geogrid reinforcement can efficaciously complements the bearing capacity of basis and forestalls the soil from lateral displacement because of its high friction coefficient and the bearing capacity. it is also conducive to the unfold of the upper part of the base load and uniformly dispensed to the underlying gentle soil, so metallic plastic geogrid reinforcement may even absorb the earthquake power.

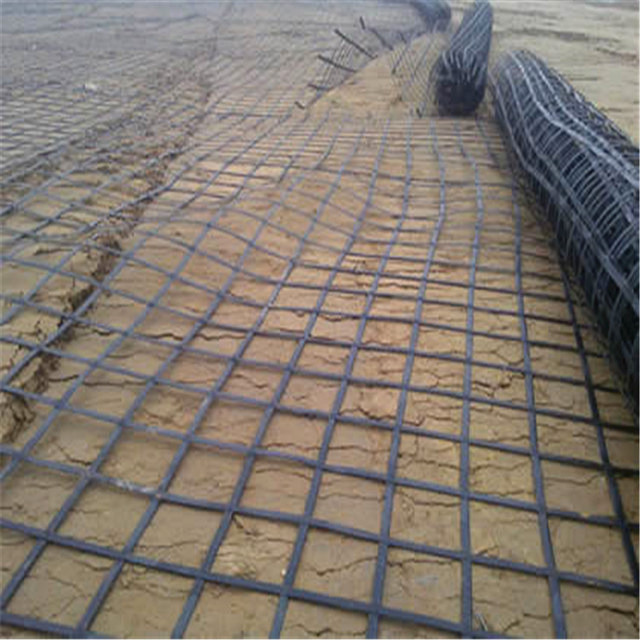

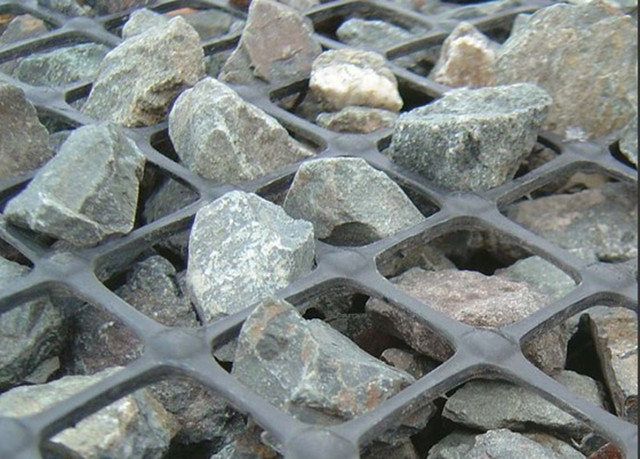

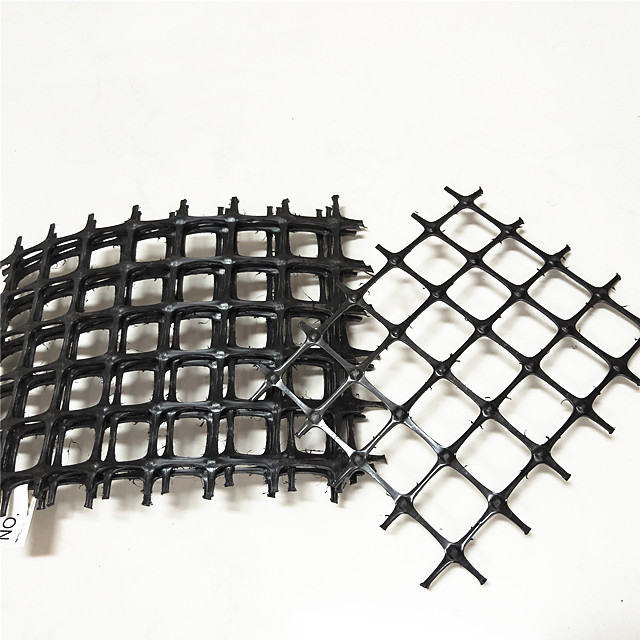

Geogrid of Steel Plastic.jpg

Parameter

Item		LKSG 30-30	LKSG 40-40	LKSG 50-50	LKSG 60-60	LKSG 80-80	LKSG 100-100	LKSG 150-150
Tensile Strength kN/m	Longitudinal	≥30	≥40	≥50	≥60	≥80	≥100	≥150
Tensile Strength kN/m	Tranaveres	≥30	≥40	≥50	≥60	≥80	≥100	≥150
Elongation Rate(%)	Longitudinal	≤2
Elongation Rate(%)	Tranaveres	≤2
Strength at 1% elongation (kN/m)	Longitudinal	≥20	≥32	≥40	≥48	≥63	≥81	≥125
Strength at 1% elongation (kN/m)	Tranaveres	≥20	≥32	≥40	≥48	≥63	≥81	≥125
Limit peel force welded bonded point N		≥100	≥100	≥100	≥100	≥100	≥100	≥100
