Reinforced Geomat of Black

High Tensile Strength

Good for slope protection

Flexible and durable

UV resistance

Product Details

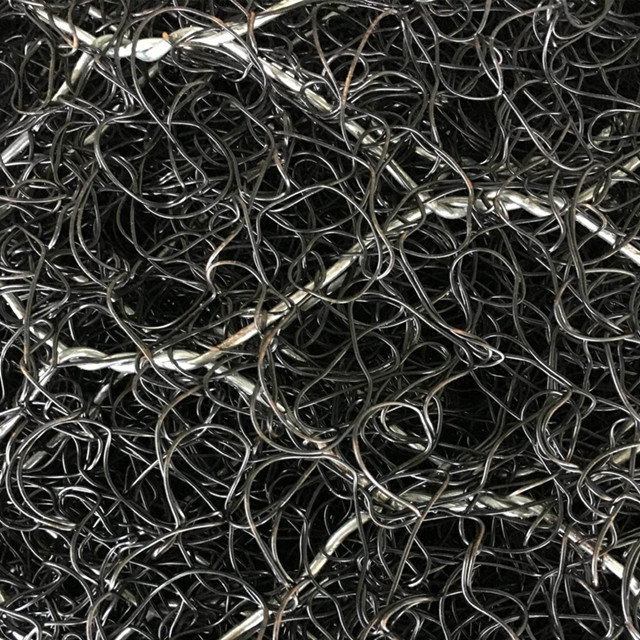

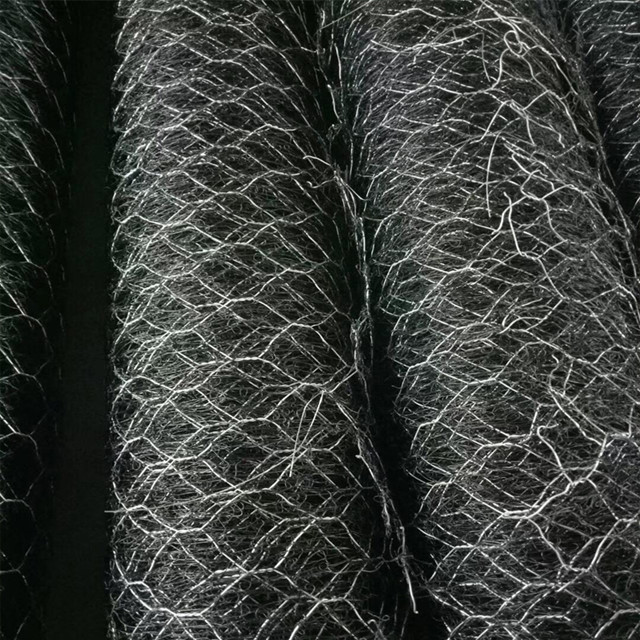

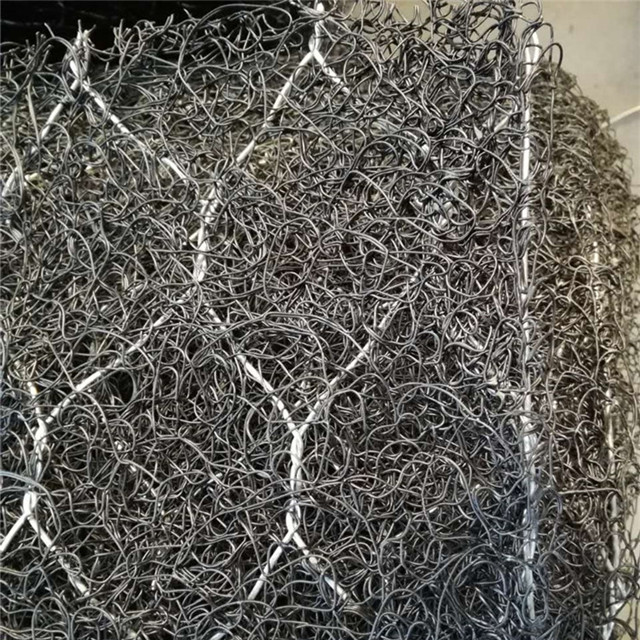

Reinforced geomat is a composite geotechnical material. It is usually formed by extruding three-dimensional polypropylene material onto the surface of a machine-woven reinforced hexagonal double-twisted metal mesh. It is composed of geotechnical materials combined with steel wire mesh.

Its structure is generally a three-dimensional honeycomb pattern. This unique structure can effectively enhance the stability of the soil, prevent erosion and landslides.

Reinforced Geomat of Black

Parameter

Reinforce layer tech data	Material	Unit	pp	pp	Standard
	Weight	g/m²	500±50	500±50	EN ISO 965
	Melting Point	•c	150	150	—
	Density	g/cm⁵	0.91	0.91	一
	Mat wire diameter	mm	0.55±5%	0.55±5%	EN ISO 9863
	Open index	%	>90	>90	—
	Mat tensile strength	Kn/m	1.6	1.6	EN ISO 10319
	uv	5OOhours	≥80%	≥80%	ASTM D 4533
Hot dipped galvanized wire mesh
Wire mesh	Mesh size	cm	6*8	6*8	—
	Steel wire diameter	mm	22	2.7	EN 10223-3
	Galfan weight	g/m2	& 230	M230	EN 10244-2

Reinforce side slop protect and erosion control mat	Breaking tensile strength	Kn/m	≥35	≥50	EN ISO 10319
	Peel strength	N/cm	≥6	≥46	EN ISO 10319
	CBR punch strength	N	≥250	≥250	ASTM D 6421
	Thickness (2KPa)	mm	12	12	EN 964
	Water flow	/（mxs）	06 (200kpa)	0 6 (200kpa)	EN ISO 12958
	Tc<al weight per m2	g/m2	1680±200	3000±500	EN ISO 9684
	Color	—	Black, green, any color

Roll Length		m	2
Roll Width		m	50
