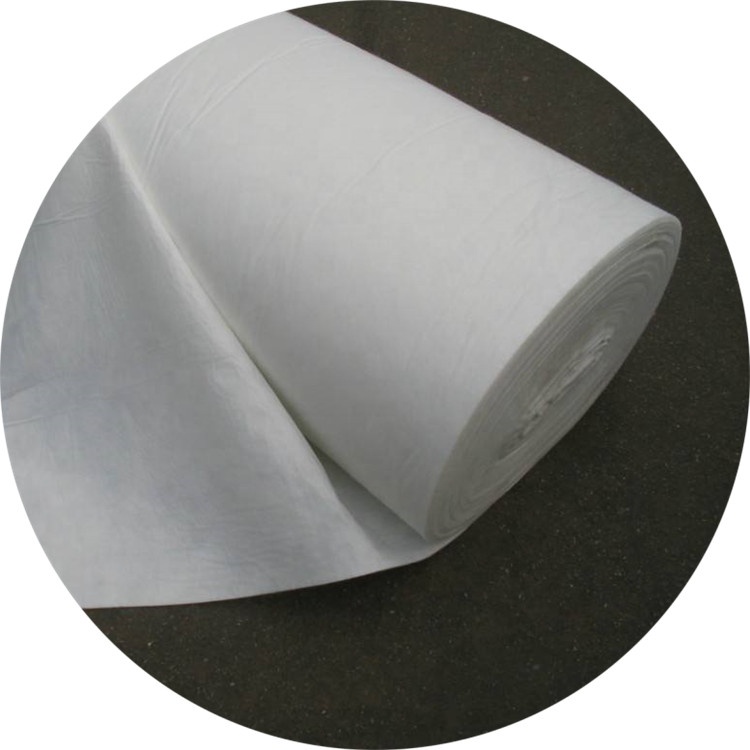

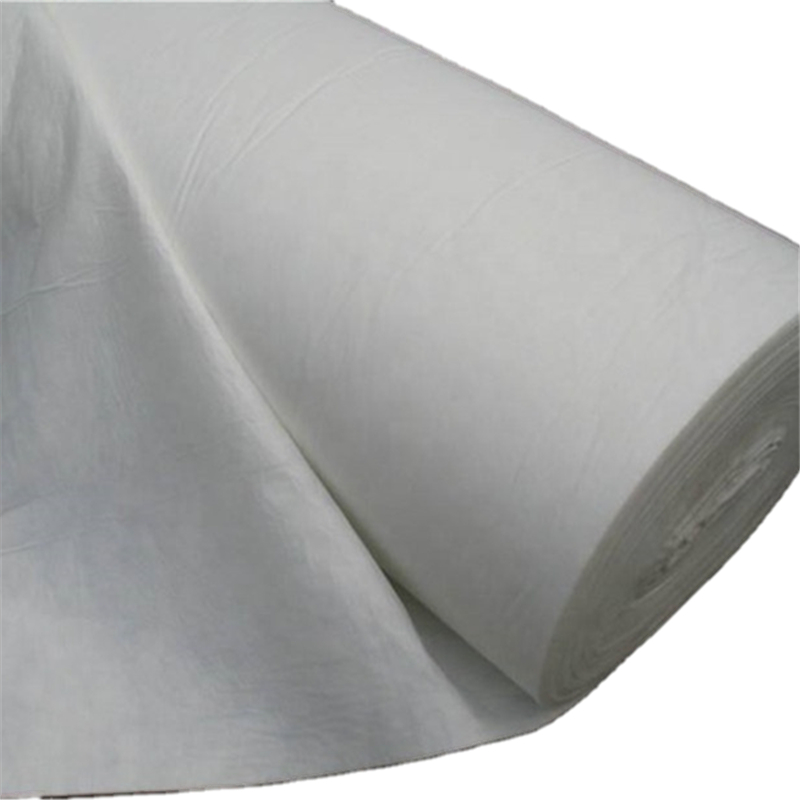

Nonwoven Long Fiber Geotextile 100g-800g

Non Woven Long Fiber Geotextile 100g-800g

Non woven geotextiles are made of fibers and formed by needling through non-woven processes.The materials used in long-fiber non-woven fabric have high strength and are resistant to stretching and tearing. Needle-punching process, standard pore size, can maintain good water permeability under water and soil pressure, suitable for various complex environments, resistant to acid and alkali and corrosion. Strong soil separation capacity can prevent the mixture of sand, gravel, soil and concrete between upper and lower layers. The uses of non-woven fabric is widedly and is often applied in projects such as highway and railway foundations, landfill sites, and water conservancy buildings.

Nonwoven geotextile  fabric features:

• ◆Filtration: Superior for drainage due to random fiber structure.

• ◆Flexibility: Conforms to uneven surfaces.

• ◆It has a good isolation effect and strong acid and alkali resistance.

• ◆Separation: Keeps different soil layers or materials (soil and gravel) from mixing.

• ◆It has high tensile strength and is not easy to tear.

•


Geotextile specification:

Name:non-woven Geotextile Filter Fabric

Width:1~6mm

Thickness:0.9mm-5mm

Weight:100g~800g/m²

Material:PP(polypropylene) or PET(Polyester)

Geotextile fabric roll sizes:

Geotextile is one of the new materials geosynthetic materials, the general width is 4-6 meters, the length is 50-100 meters。

Woven bag in roll or customer’s requirements.

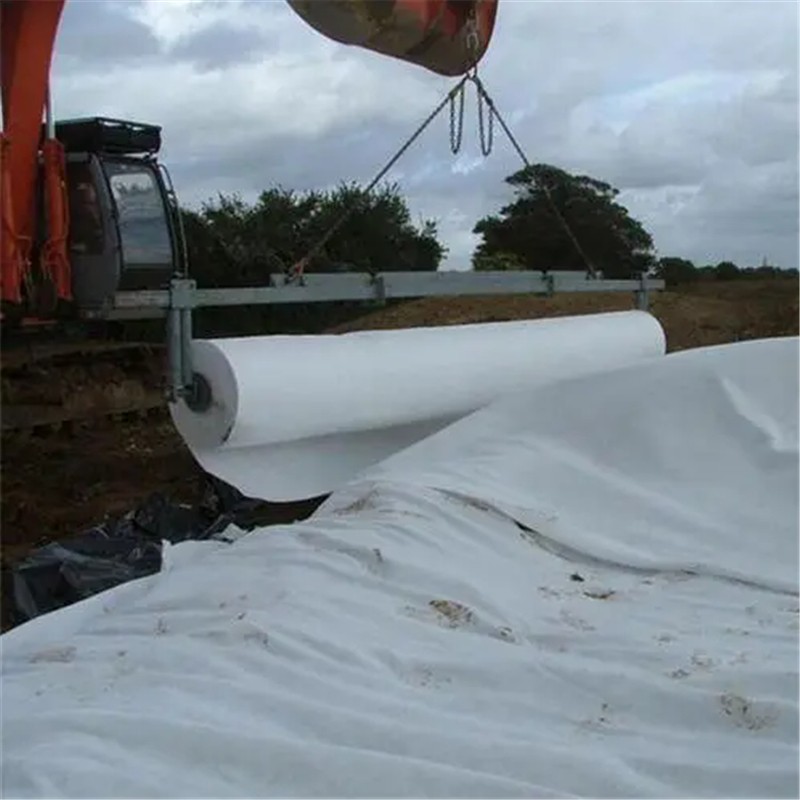

Geotextile fabric installation tips:

• Prep: Clear debris, level soil.

• Overlap: 6–12 inches between rolls to prevent gaps.

• Secure: Use landscape stakes or staples.

• Cover: Add mulch/gravel to protect from UV exposure.

•


About our products and our after-sales service:

Shandong Luke Composite Co., Ltd. is a professional company specializing in the production and sales of geomaterials. The company mainly produces geotextile, geomembrane, drain board,geogrid,geocell,3D geomat, drain mat drainage net, grass paver ect.Our company provides a one-stop service, and our staff provides 24/7 online support to solve any technical problems related to geotextile fabric in a timely manner. Thank you for your love of our products.

our aim is quality first, credit first!

Geotextile Fabric application:

The application of geotextile geomembrane is very wide, suitable for water conservancy, embankment, highway, railway roadbed, bridge, port, tunnel, airport and so on.

Road and railway engineering: In the soft foundation treatment of expressways, 200-300g/㎡ non-woven fabric  is used, with a tensile strength of ≥10kN/m.

In water conservancy projects, non-woven fabric is used as the anti-seepage and reverse filtration layer in water conveyance channels in the South-to-North Water Diversion Project.

Environmental protection and landfill sites.

Coastal and flood control projects, as well as mines and tailings ponds.
