Staple Fiber Needle Geotextile For Highway Maintenance

Width:0.6-0.8mm

Weight:100g-800g/m²

Material:PP or PET

Low cost and easy construction

Good flexibility and strong ability to adapt to terrain conditions.

Staple fiber needle geotextile for highway maintenance can strengthen the weak foundation.

Contact Now

Product Details

Staple Fiber Needle Geotextile For Highway Maintenance

The staple fiber needle-punched non-woven geotextile used for road maintenance is a new type of geotechnical synthetic material specially designed for road maintenance projects. It is mainly composed of high-molecular staple fibers (such as polyester, polypropylene, etc.) processed through the needle-punching technology into a non-woven fabric-like product. It plays an important role in protecting the road structure and improving its performance. It has a fluffy texture, good breathability, uniform pore distribution, and also possesses certain tensile strength, tear strength, and wear resistance. It is resistant to acid and alkali, corrosion-resistant, and can adapt to complex working conditions in the road environment. Therefore, it is widely used in the daily maintenance of roads.

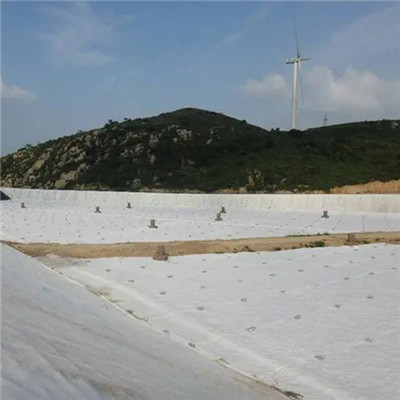

Staple Fiber Needle Geotextile For Highway Maintenance.jpg

Staple fiber needle punched geotextile technical parameter:

Test Properties		Units	LKS10	LKS15	LKS20	LKS25	LKS30	LKS35	LKS40	LKS45	LKS50	LKS60	LKS80
Mechanical Properties	Weight	g/㎡	100	150	200	250	300	350	400	450	500	600	800
	Weight Variation	%	-8	-8	-8	-8	-7	-7	-7	-7	-6	-6	-6
	Thickness	mm	0.9	1.3	1.7	2.1	2.4	2.7	3	3.3	3.6	4.1	5
	Width Variation	%	0.5
	Break Strength(MD and XMD)	kN/m	2.5	4.5	6.5	8	9.5	11	12.5	14	16	19	25
	Break Elongation	%	25-100
	CBR Burst Strength
	Tear Strength≥（MD and XMD）	kN	0.08	0.12	0.16	0.2	0.24	0.28	0.33	0.38	0.42	0.46	0.6
Hydraulic Properties	Sieve SizeO90	mm	0.07-0.20
Hydraulic Properties	Coefficient of Permeability	Cm/s	(1.0-9.9) ×（10^-1-10^-3）

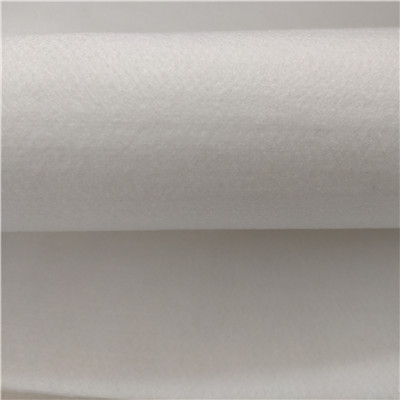

PP Nonwoven Geotextile.jpg Staple Fiber Needle Geotextile For Highway Maintenance.jpg

The Role of PP Nonwoven Geotextiles in Road Maintenance

◆Isolation function:

Nonwoven geotextile is placed between different pavement structure layers (such as the base layer and the surface layer, or the subgrade and the base layer), it prevents the mixture of materials between the upper and lower layers, maintaining the material properties and functional stability of each structure layer.

◆Filtration and drainage:

Utilizing its porous structure, it allows water to pass through but blocks soil particles, avoiding water accumulation within the pavement structure that causes subgrade softening, frost heaving, etc., and at the same time helps to discharge excess water within the structure layer, protecting the subgrade strength.

◆Reinforcement and enhancement:

With its own tensile strength, it enhances the integrity of the pavement structure, disperses the pressure of vehicle loads on the base layer and subgrade, reduces pavement deformation, settlement, and delays crack formation.

◆Protective function:

Placed on the subgrade slopes, shoulders, etc., it can reduce direct damage to the subgrade caused by rain erosion and vehicle rolling, extending the service life of the highway.

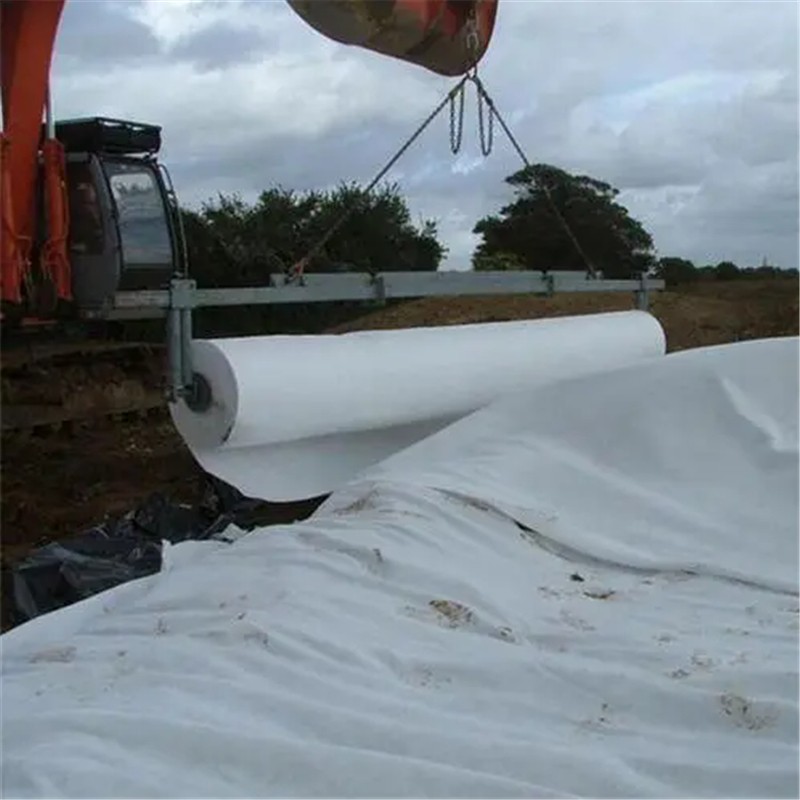

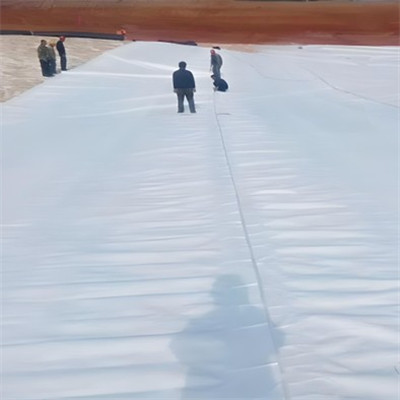

PP Geotextile Function.jpg Needle Punched Geotextile.jpg

Lead time and packaging of Filament polyester geotextiles:

Quantity(square meters)	1-6000	6001-30000	＞30000
Lead time(days)	2	5	To be negotiated

The non-woven geotextile is made from high-quality PP or PET raw materials and processed with advanced equipment through special techniques.

White or black woven bag in roll or used in customer’s requirements.

Polypropylene Geotextile Fabric.jpg Polypropylene Geotextile Manufacture.jpg
