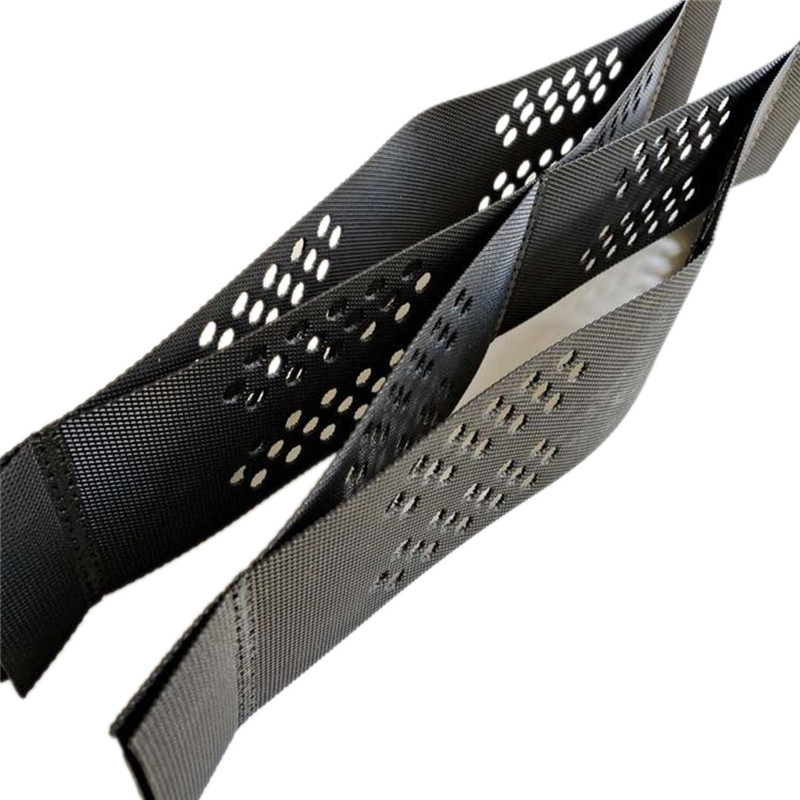

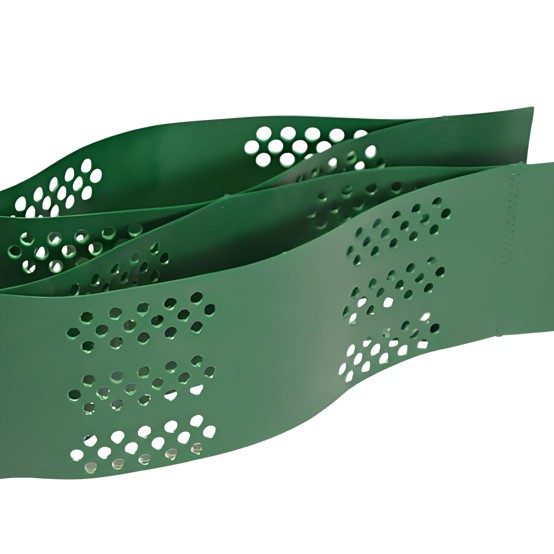

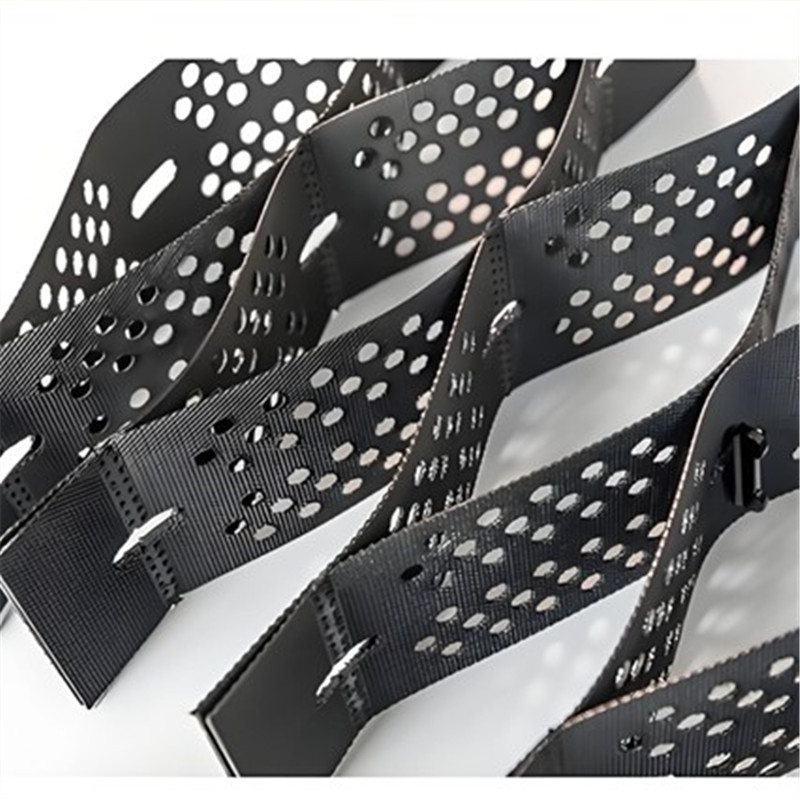

Plastic Geocell

1) Flexible to fold during the transport and installation on construction site

2) Higher lateral restrict and prevent slippery

3）Enhance the bearing capacity of roadbed and scattered loads

Product Details

This kind of plastic geocell is highly flexible when in use. It can be freely assembled and disassembled as needed to meet the requirements of different shapes and sizes of engineering projects. Compared with geogrids, the three-dimensional structure has a stronger constraint ability on the soil, and especially has a better load dispersion effect in the vertical direction. Compared with the rigid concrete slope protection structure, the flexible structure is more adaptable to the deformation of the foundation, has better ecological performance and lower cost.

Plastic Geocell.jpg

Parameter

Product Type	Height (mm)	Welding Distance (mm)	Thickness (mm)	Tensile Strength of Welding Points (N/cm)	Tensile Strength of Commection of Cells (N/cm)	Tensile Strength of Yield of Each Sheet (Mpa)
Smooth and Not Perforated	50≤H≤250	330≤A≤ 1000	1.0-1.4	≥100	≥120	≥20
Smooth and Perforated	550≤H≤250	330≤A≤ 1000	1.0-1.4	≥100	≥120	≥20
Textured and Not Perforated	50≤H≤250	330≤A≤ 1000	1.0-1.4	≥100	≥120	≥20
Textured and Perforated	50≤H≤250	330≤A≤ 1000	1.0-1.4	≥100	≥120	≥20
Remarks: This is a basic technical specification. All the above technical parameters can be reached according to customer's requirement and other special standard can be carried out by agreement or contract.

Feature

1、It is flexible to fold during the transport and installation on construction site.

The geocell nets will be filled with soils, granular, cements or other on site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.

2、Material is qualitative light, wear resistance, chemical stability, light oxygen aging resistance, resistance to acid and alkali.

Suitable for different soil and soil conditions, such as desert.

3、Higher lateral restrict and prevent slippery, prevent deformation, effectively enhance the bearing capacity of subgrade and scattered loads.

4、Change the large room height, welding such as geometrical size can meet different engineering needs retractile, transport of small size.

5、Geocell material is an environmentally friendly material that does not pollute the surrounding environment and meets the requirements of sustainable development.

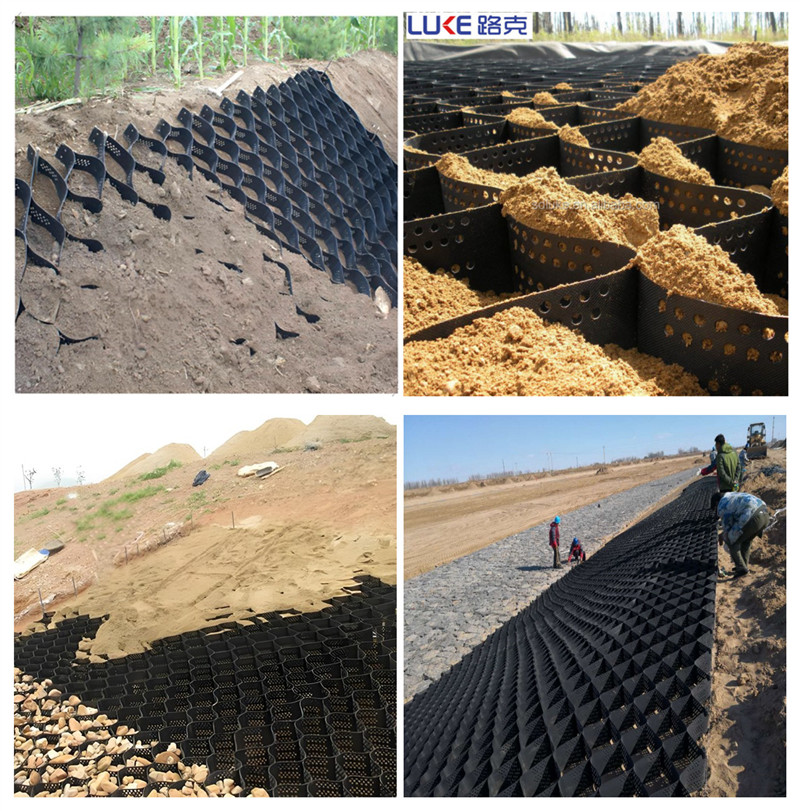

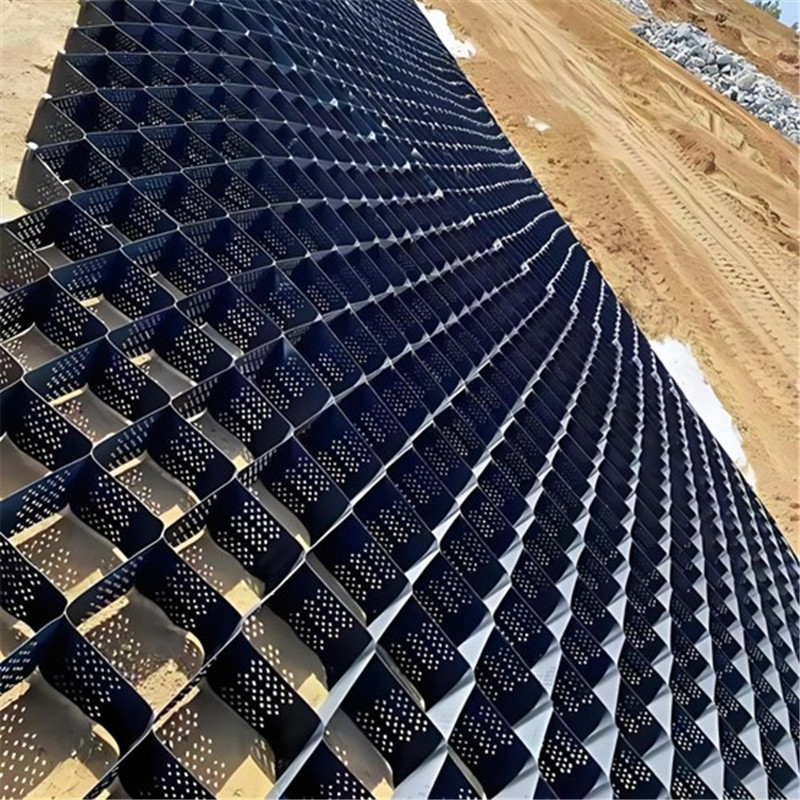

Geocell For Road.jpg
