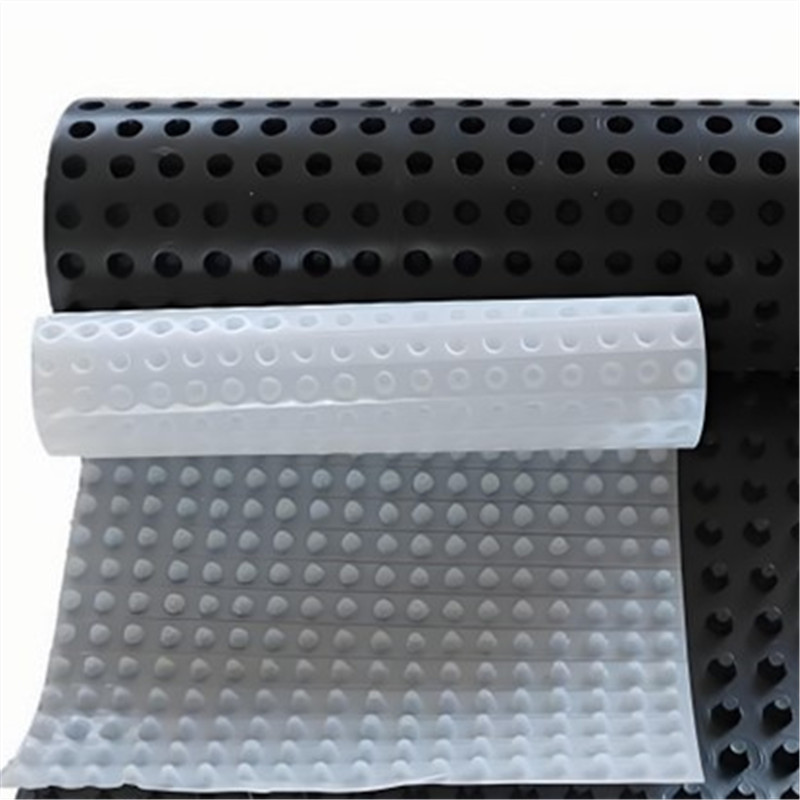

Construction Waterproof HDPE Dimple Drainage Board

Construction Waterproof HDPE Dimple Drainage Board

a construction waterproof drainage board is a composite panel with a waterproof layer and drainage channels, often covered with a filter geotextile fabric. It's used in below-grade structures to manage water, combining waterproofing and drainage in one system. Materials are typically HDPE with dimpled design, installed on the exterior of foundations, walls, etc., directing water to drainage systems to protect the building from moisture damage.

Dimple drain board structure and components:

◆Waterproof Layer: Typically made from high-density polyethylene (HDPE) or another durable polymer, this layer prevents water infiltration into the structure.

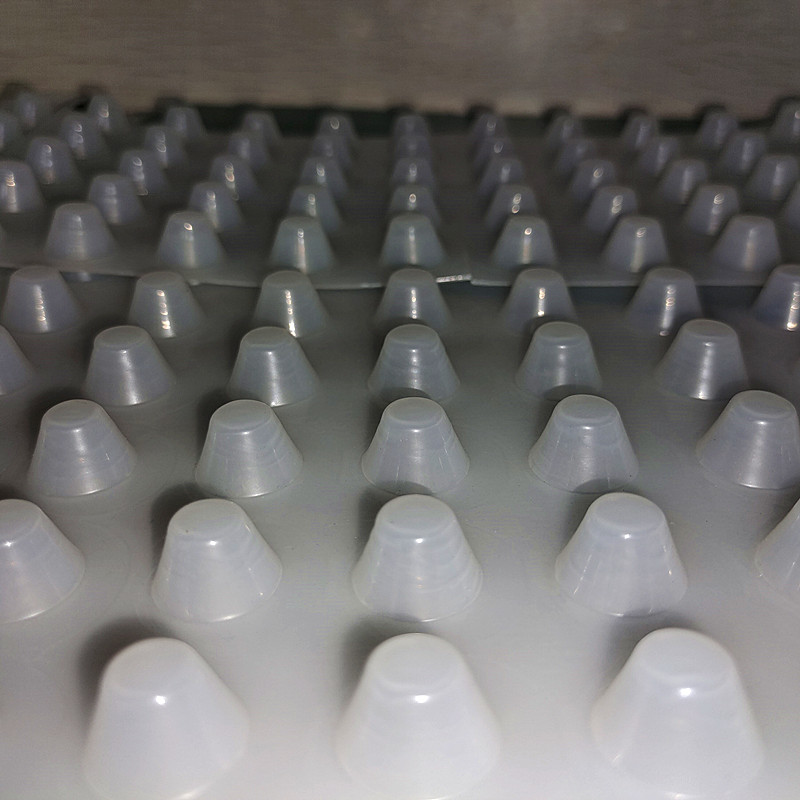

◆Drainage board Channels: A textured surface (e.g., dimples, studs) creates voids for water to flow, directing it downward to a drainage system.

◆Geotextile Filter Fabric: Attached to the exterior, this fabric filters soil and debris, preventing clogs in the drainage channels.

Product specifications:

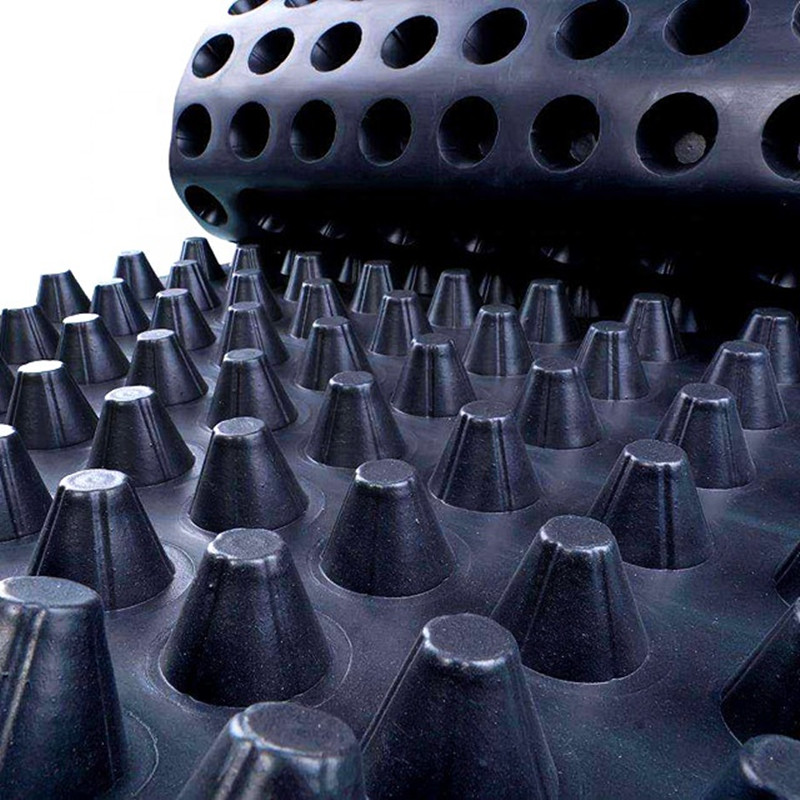

Construction waterproof HDPE dimple drainage board  features:

Dual Functionality: Integrates waterproofing and drainage, eliminating the need for separate systems.

Hydrostatic Pressure Relief: Channels water away, reducing pressure on foundations and walls.

Durability: Resistant to chemicals, root penetration, and physical stress.

Versatility: Available in varying thicknesses and designs (e.g., dimple size) for different applications.

Installation Process:

◆Excavation: Expose the structure (e.g., foundation wall).

◆Waterproofing: Apply a primary membrane (optional, depending on design).

◆Attach Drainage Board: Secure panels with dimples facing outward, overlapping edges to ensure continuity.

◆Geotextile Layer: Install fabric over the board to filter soil.

◆Backfill: Carefully replace soil to avoid damaging the system.

Drain board packaging and divery:

Packed by roll or in white woven bag, neatly packed, or according to your requirements.and delivery within the specified date.

Drainage board workshop production line:

Application:

Below-Grade Structures: Foundation walls, basements, and tunnels.

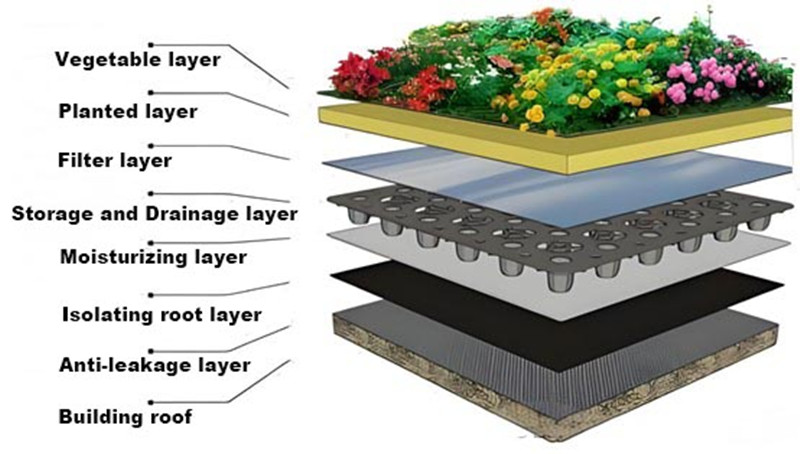

Landscaping: Retaining walls, green roofs, and plaza decks.

Civil Engineering: Bridge abutments, roadways, and underground utilities.

About us:

Shandong Luke Composite Co.,Ltd. is professional company on production and sales geosynthetics for years, which is located at the foot of the beautiful Mountain Tai.

We mainly produce geomembrane, geotextile, drain board, geogrid,geocell,3D geomat, drain mat, drainage net, grass paver ect.

Our geosynthetic materials have been exported to more than 30 nations and regions, such as Southeast Asia, Australia, North America, Europe, Middle East and Africa.

Our commitment:

Professional equipment, high quality geomembrane series products, first-class service is your best choice, welcome to our company!

If you want to know more about the dimple drainage board ,you can continue to ask me questions.
